Trolley Ecografo 3D 4D Ultrasound Machine with LED Monitor

MCU-CD002
minimum order
1
Stock Time
15Day
Quantity:
Contact Now
add to cart
All Products

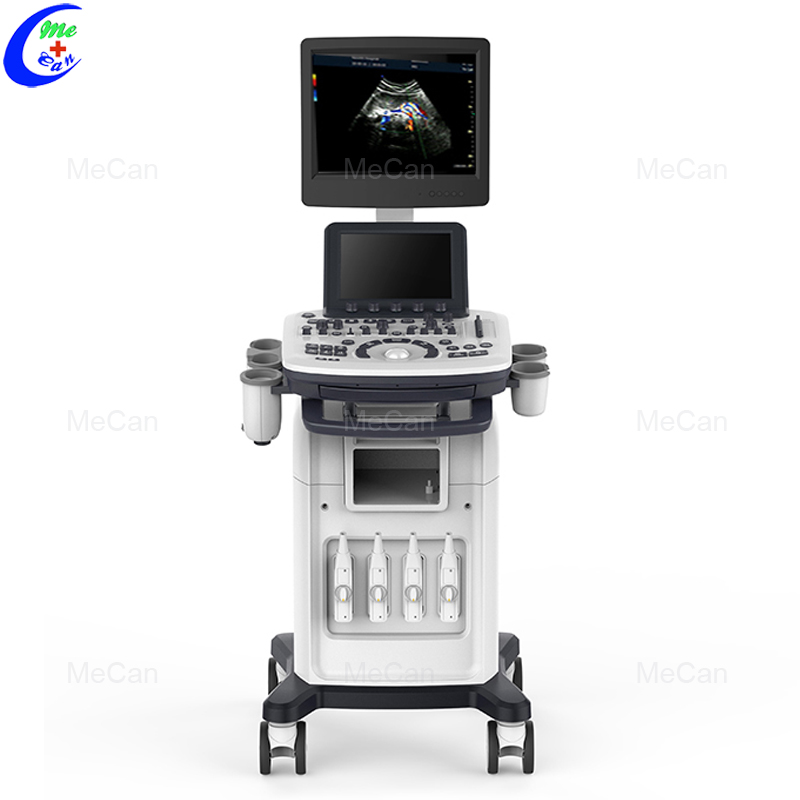

Trolley Ecografo 3D 4D Ultrasound Machine with LED Monitor

Model:MCU-CD002

Trolley Ecografo 3D 4D Ultrasound Machine with LED Monitor 7

Features of the ultrasound machine

1.15inch high resolution LED monitor.
2.10.4 inch touch screen.
3.Four activated transducer connectors.
4.Raw data storage, complete offline analysis facility.
5.2D,M, PW, CW, TDI, Elastic, AMM, CMM, 3D/4D.
6.THI, SRI, TSI, TCI , EFov , Panoramic, HR flow, B-steer.
7.Support local and global amplification.
8.Support PW auto track and auto calculation.
9. Preposed USB ports, supporting multi-data transmission.
10. Multiple pregnancies measurement, Fetal growth curve, OB table are standard configured.
11.Color focus automatic tracking, Dual Live and Multi-synchronization technologies.
12.Optional Lithium battery package, duration more than 2h.

Specification
VoltageAC 100V ~ 240V
Frequency50/60Hz
Power320VA
Ambient temperature5℃~+40℃
Relative humidity25%~85%
Atmospheric pressure70kpa ~ 106kpa
Weightapprox. 70kg
Widthapprox. 565mm
Heightapprox. 1455mm

Technical Parameters

System Overview

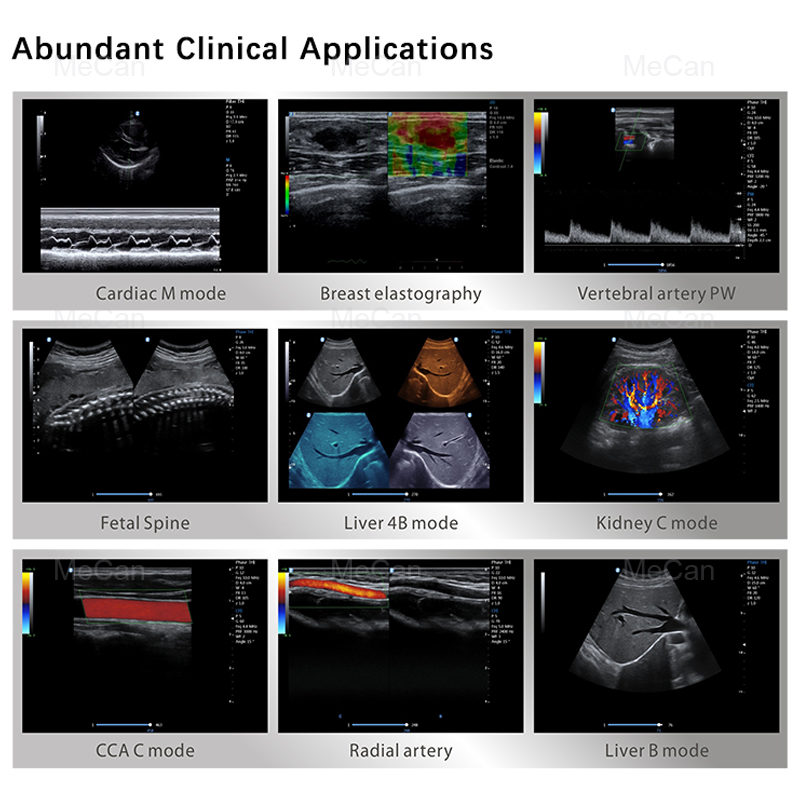

Clinical Applications:
Abdomen ;

Obstetrics;

Gynecology;

Urology;

Cardiology;

Pediatric ;

Small Parts;

Blood Vessel;

Superficial;

Orthopedic;

MSK;

Nerve;

Custom

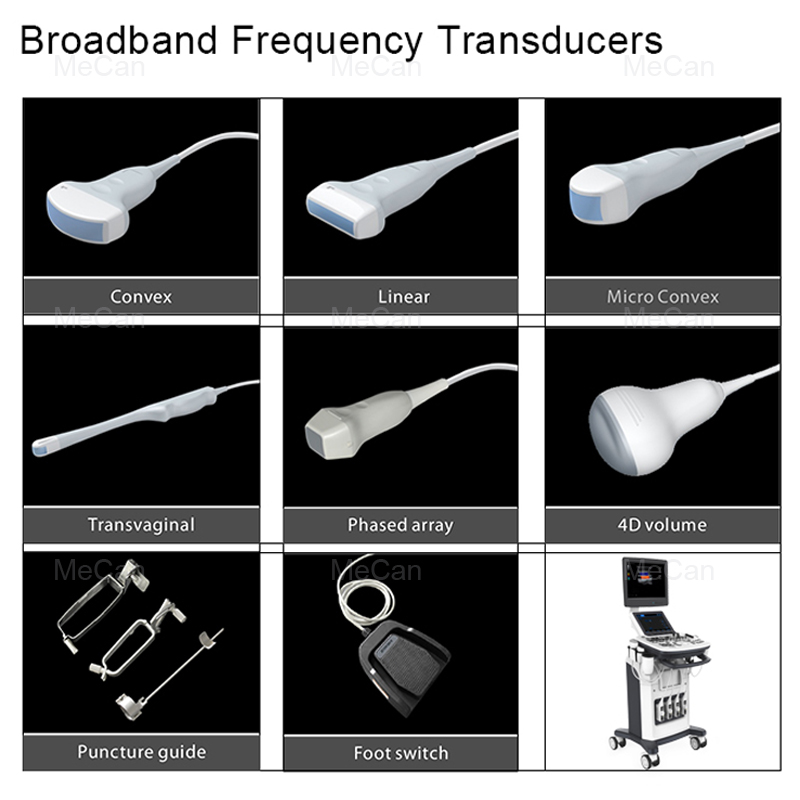

Transducer TypesConvex transducer
Linear array
Trans-vaginal transducer
Micro-convex transducer
Phased array transducer
4D volume transducer
Imaging ModesB-Mode
B steer
2B/4B-Mode
M-Mode
B/M-Mode
CDFI - Mode
PDI -Mode
CM-Mode
PW-Mode
Anatomic M mode
PanoramicColor panoramic
Trapezoidal (Linear probe)
Extended imaging(Efov)
CW -Mode
TDI(TVI, TVD,TVM,TEI)
3D/4D Mode
Standard featuresB-Mode
B-Mode
B steer
2B/4B-Mode
M-Mode
B/M-Mode
CDFI - Mode
PDI -Mode
CM-Mode
PW-Mode
Anatomic M mode
Panoramic
Color panoramic
Trapezoidal (Linear probe)
Extended imaging(Efov)
Tissue Specific Imaging (TSI)
Tissue Harmonic Imaging (THI)
Speckle Reduction Imaging (SRI)
Spatial Composite Imaging(SCI)
Frequency Composite Imaging(FCI)
B/C/D Chromatic imaging
Pan Zoom
Local Zoom
Auto Optimization
Image Rotation
Main basic configurationMain unit 1pc;
3.5MHz convex probe 1pc;
Power supply adaptor 1pc;
Reticle 1pc;
Optional probes6.5MHz multi-frequency trans-vaginal probe(through vagina)
6.5MHz micro-convex probe
7.5MHz multi-frequency linear probe
7.5MHz multi-frequency cavity probe (through anus)
OptionalsTrolley
Video printer(UP-X898MD)
Ethernet Switch
Trolley Ecografo 3D 4D Ultrasound Machine with LED Monitor 8
Trolley Ecografo 3D 4D Ultrasound Machine with LED Monitor 9
