China Clinic Ent Diagnostic Set Examination Unit Table

China Clinic Ent Diagnostic Set Examination Unit Table

Model Number: MCD9010

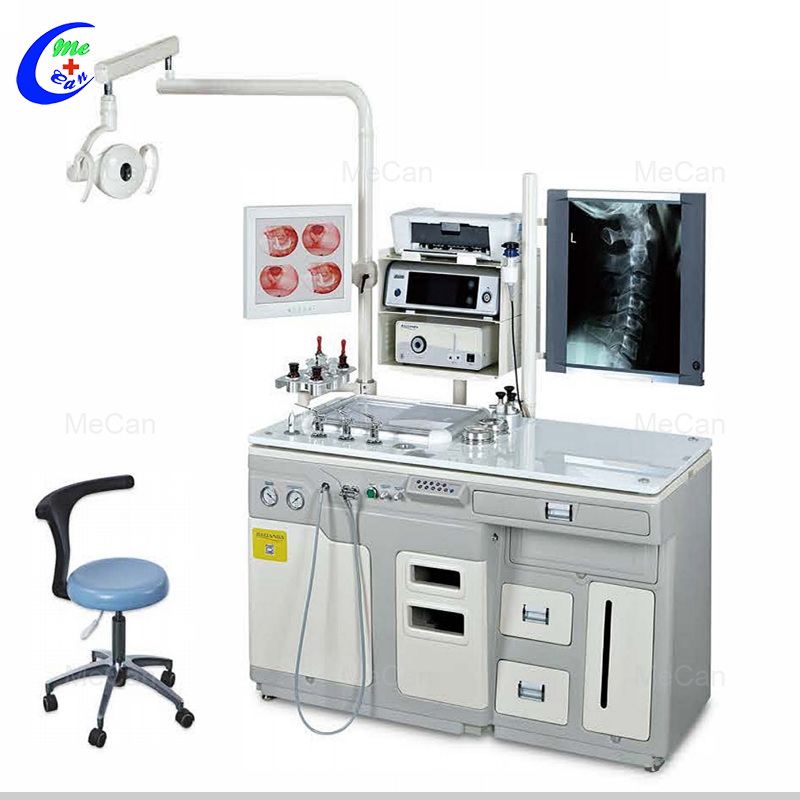

The ENT Workstation Unit Table with Film Viewer is specifically designed to accommodate ENT diagnostic sets, ensuring easy access and organization during examinations. With a built-in film viewer, ENT professionals can conveniently review imaging studies and make accurate diagnoses.

Easy to clean:The surface of machine is easy to clean and disinfect

Positive and negative dual compressor:Independent positive and negative dual compressor, spray and suction can be used simultaneously to prevent cross-infection, greatly improving the compressor's lifespan.

Adjustable height and angle lighting:Operating light can adjust to any angle and any height, its light can be refract into ear, nose, throat, and other place by reverberator

Positive and negative pressure adjustment design:Positive-negative regulating valve can adjust the sprayer and suction

Positive and negative pressure gauge:Positive-negative manometer show the power of sprayer and suction

Touch-sensitive buttons:Control panel is easy to operate.

Large capacity suction bottle for dirt:The capacity of the waste bottle are 2500CC.

Equipped with large capacity medicine bottle:Medicine bottle with a capacity of 30CC，instrument cup’s diameter are 80 and 100mm.

Equipped with A cold light source and two fiber joints:The cold light source (built-out), two fiber joints can be connected to be fiber otoscope, endoscope, fiber larynx illuminating rod etc.

Equipped with 3 spray guns :Spraying equipment: the medicine bottle in spray gun can hold difference medicine for curing snufflen, shrinking nose catarrh, nose congest,laryngitis and anaesthesia before operation.

Equipped with sucking gun:Plug attractive device, in addition to nasal absorption of the gun, the gore wound, pus and so on, to ensure the operation and affected part clear.

Preheating device:Baking indirect laryngoscope,nasopharyngeal mirror, making the mirror suitable for the body temperature(indirect laryngoscope, nasopharyngeal, mirror nasopharynx can check whether throat retained have another thing or not.

LED illumination light 12V 10W 10 levels brightness,1pcs

Spray gun (straight 2 pcs,bend 1 pcs),3 pcs

Blow gun,1 pcs

Standard Configuration

Suction gun 10 second delayed shut off,1 pcs

Built-in LED cold light source 12v10w 10levels brightness, 1 pcs

Constant temperature ear rinsing system adjustable, 1 pcs(Optional)

Laryngoscope pre-heater 0-180s adjustable,1 pcs

Film viewer, 1 pcs

Blow off equipment system with alarm function, 1 pcs

Instrument tray,2 pcs

Cotton cup,2 pcs

Medical bottle,7 pcs

Built-in waste tank,1 pcs

Built-in equipment recycle tank,1 pcs

Built-in immersion sterilization cup,1 pcs

Vacuum pump,1 pcs

Compressor,1 pcs

Doctor chair,1 pcs

Microscope,1 pcs(Optional)

1CCD/3CCD camera, 1 pcs(Optional)

External LED cold light source 80w, 1 pcs(Optional)

Light guide, 1 pcs(Optional)

∅2.7/4*90mm (0°/30°)otoscope,1 pcs

∅2.7/4*175mm (0°/30°)sinoscope,1 pcs

∅8*185mm(70°/90°)laryngoscope,1 pcs

Computer+21.5"LCD display (come with endoscope software), 1 pcs(Optional)

15"LCD monitor, 1 pcs(Optional)

Printer, 1 pcs(Optional)

Size: 1240*625*770mm

Net weight: 255kg

Whether you are performing routine check-ups, minor surgeries, or complex treatments, the ENT Treatment Unit Table is the ideal solution for your ENT clinic. Invest in this high-quality and reliable equipment to enhance the quality of care you provide to your patients and improve overall efficiency in your practice.
