Wholesale Price Portable Unit Automatic Dental Suction System

Its power system uses a wide-voltage dual-frequency motor in Grade IP55 protection (insulation grade: F) as its driver, to provide swirl-type circular suction with lower noise, higher pressure and larger flow. Its filter system adopts the most advanced mechanical filter technology in terms of the current water treatment process, which can effectively remove the inhaled gel or other solid particulates.
Payment:
T/T
Lead time:
7
MOQ:
1
Description:
Dental Suction System
Model:
MCD-S002

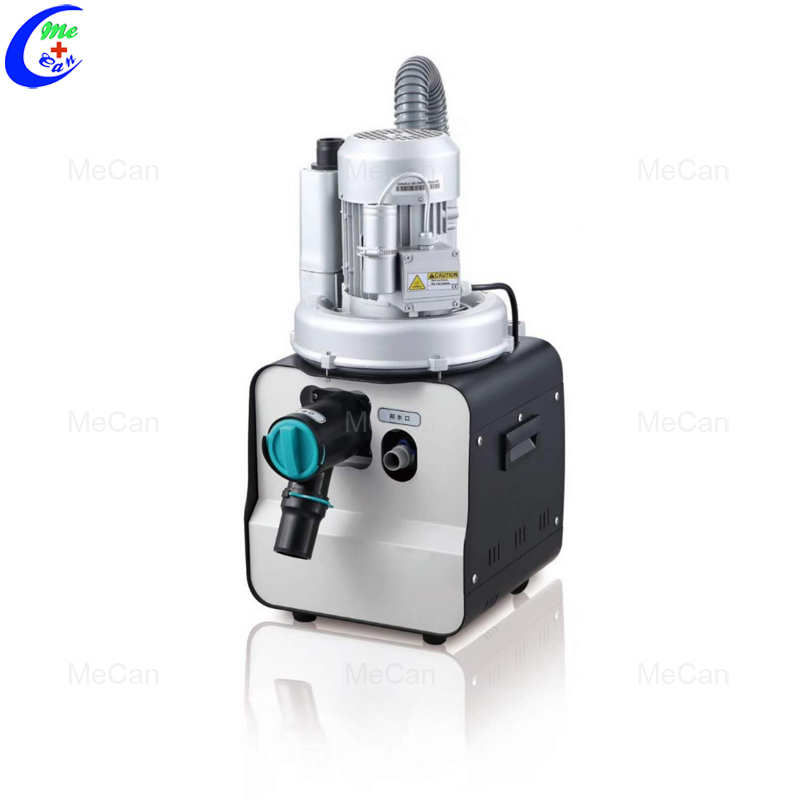

Wholesale Price Portable Unit Automatic Dental Suction System

Model: MCD-S002
Wholesale Price Portable Unit Automatic Dental Suction System 6
What's the function of our Dental Suction System

1. Its effective two-level water-gas separator, with high bubble compatibility, could effectively prevent the fluid and blood in pipes being sucked into the pumping motor.

2. Configured with multiple layers of protection overload, and pressure relief safety devices, so that the device longer life.

Wholesale Price Portable Unit Automatic Dental Suction System 7

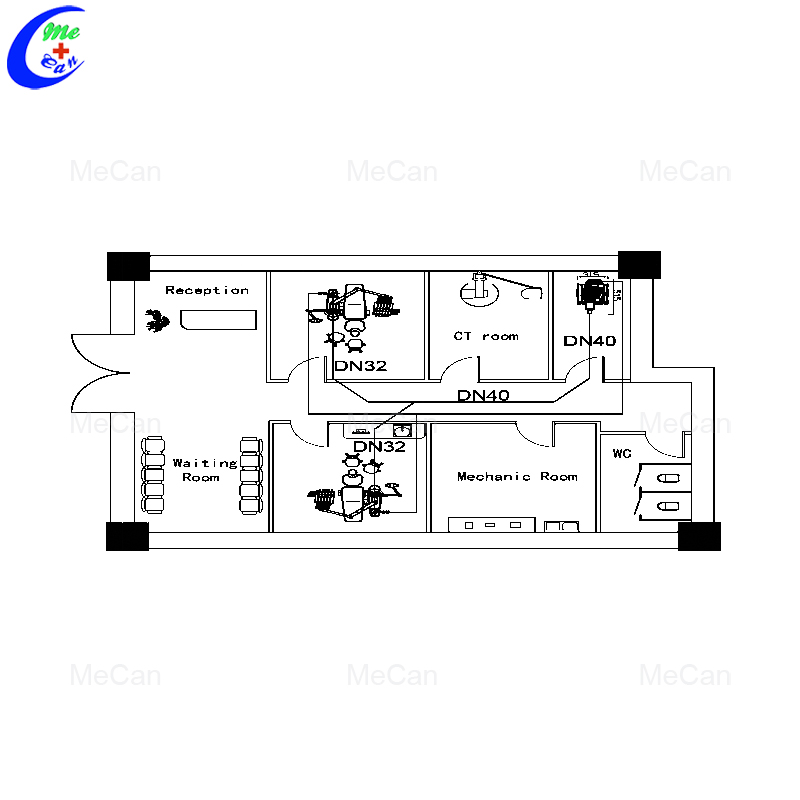

① This dental suction’s pipeline is only for semi-wet dental suction,suggest dental unit be to install Place Selection Valve and Solid Particles Filter.
② PVC-U Φ40.Φ32.
③ Dental suction’s major pipeline and devied pipeline is connected by 45°corner piece with straight line.
④ Negative pressure suction pipe of dental unit’s basic box should be 30mm higher than ground.
⑤ Dental suction’s pipe should be deal up,inside of pipe must be cleaning.

⑥ Signal control wire adope 2*1.5 square cable with parallel.

⑦ Signal control wire should no-voltage with electic shock signal.
⑧ Dental suction’s room temperature should less than 40℃, Reliable ventilation.
⑨ Advice Dental suction’s exhaust outlet to connect outside clinic’s air pipe withΦ40mm.
⑩ Dental suction should have drainage outlet with Φ25mm.



What's the specification of our dental suction system



Voltage (V)

220±10

Frequency (Hz)

50/60

Power (KW)

0.75

Rated current (A)

5

Motor speed (r/min)

2800

Maximum pressure (KPa)

12

Maximum vacuum (KPa)

-12

Number of dental chairs (pcs)

2

Noise (db)

62

Product weight (kg)

26

Package Weight (kg)

36

Product size (cm)

49*31*66

Package size (cm)

54*38*70
