500kg/ hour Industrial Household 600-800 Beds Hospital Medical Waste Incinerator
500kg/ hour Industrial Household 600-800 Beds Hospital Medical Waste Incinerator
Specifications
1) Smokeless and no harmful to environment.
2) Continuously and fully burning.
3) Simple operation.
1. Description
Waste incinerator is a kind of machine that possess the own intellectual property, features unique and advanced merits with compact size, high burning efficiency, reasonable burning technology, high degree of non-harm etc, it is an ideal choice for waste treatment of hospital, hotels, various stations and industries.
2. Advantage
1) Long lifetime
2) Totally enclosed operation
3) Suitable for treating infectious waste
4) Avoid secondary pollution
5) Simple operation
3. Main features
1) Both gas-motivated and oil-motivated are all can be preferred according to customers’ needs.
2) Gasified incineration is used for burning syringe, paper waste, bandage, absorbent cotton and other medical wastes.
3) Daily waste can be burned once by gasified incineration.
4) Gasified incineration, mixed incineration and burnout treatment ensures low emission standard of dust (lower than International standard).
5) Totally enclosed operation is suitable for treating infectious waste to avoid secondary pollution.
4. Application
1) Hospitals
2) Hotels
3) Stations
4) Industries
The follows are our detail information:
Applicable hospital size (number of beds) | 600-800beds |
Burning Ability | 500kg/ hour (daily incineration3-6 times) |
Size of the Burner | 3m*2m*4.8m |
Volume of the Burner | Gasification room3.5m3,secondary bumingroom1.5m3,drift a long buming a room0.3m3 |
Third Burner | Optional |
Size of the filling entrance | 1080mm*1280mm |
Chimney | Height 14m out-radius¢460mm |

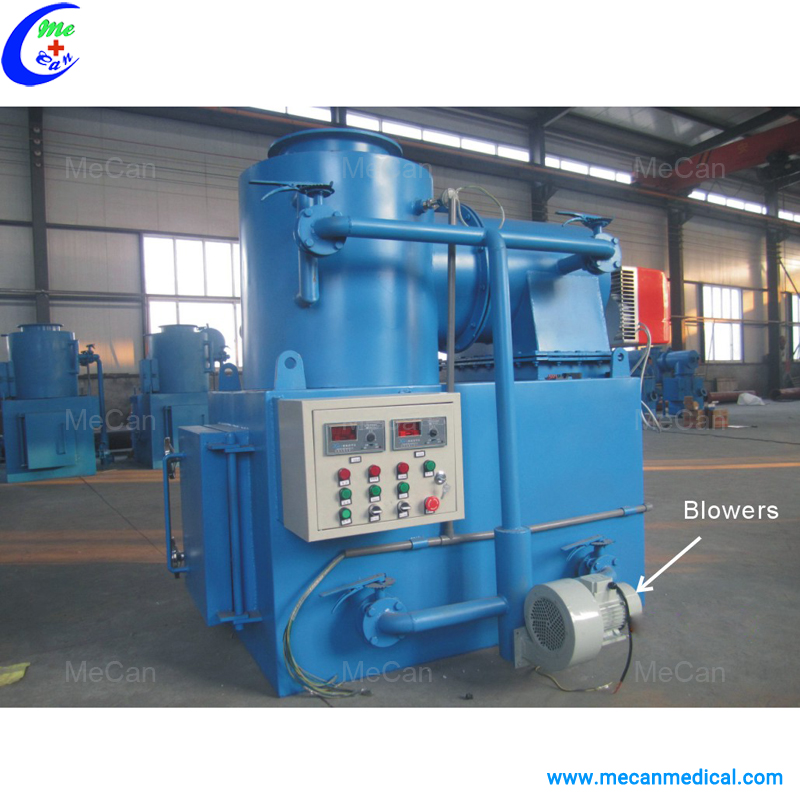

Blower | Power 1.1kw 0.55kw |
Combustion-support combustion machines | Power 0.22kw,fuelconsumption7-14kg/h |
Re-burning machine | Power 0.37kw,fuelconsumption15-26kg/h |
Running voltage | 220V or380V |
Weight | About14800 |
No | Name | Amount | Specifications | Notes |
1 | Incinerator | 1 | A3 steel refractories | Main part |
2 | The 2 combustion chamber and the combustion chamber mixed | 1 | A3 steel refractories
| Installed in the main body |
3 | Electric box | 1 |
| The main body |
4 | Fluegas purification system | 1 | A3 steel refractories | Installed in the main body |
5 | Combustion burner | 1 | BTL-14 | The main body |
6 | Reburning burner | 1 | BTL-28G | The main body |
7 | blower | 1 | 1650W/220V/380V | The main body |
8 | Ash rake | 1 | ¢200mm×4000mm | Shandong green |
9 | Pump | 1 |
| The main body |
10 | fuel tank | 1 |
| The main body |
11 | fuel tank bracket | 1 | ¢600mm*2200mm | Shandong green |
12 | Chimney | 2 | ¢460mm*10000mm ¢460mm*5000mm | Shandong green |
13 | Filter switch | 5 |
| The main body |
14 | Thermocouple | 2 | 1200℃ | The main body |
15 | Operational procedures | 1 |
| The main body |
Model No. | MCFS-20 | MCFS-30 | MCFS-50 | MCFS-100 | MCFS-150 | MCFS-300 | MCFS-500 |
Applicable hospital (number of beds) | 30-50 beds | 50-100beds | 150-250beds | 200-300 beds | 200-300beds | 300-500 beds | 600-800beds |
Burning Ability | 10-20kg/ times | 20-30kg/ times | 50-80kg/ times | 80-100kg/ times | 100-150kg/ times | 200-300kg/ times | 300-400kg/ times |

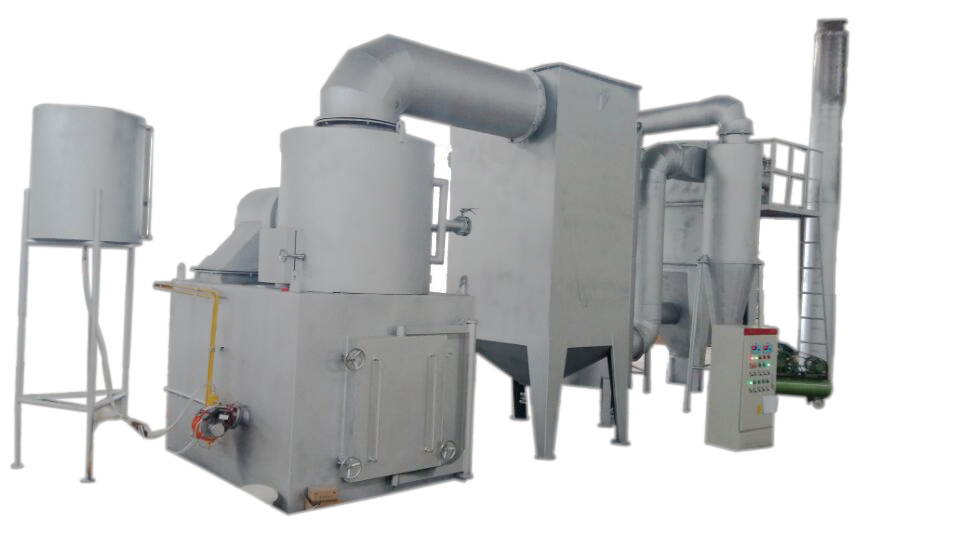

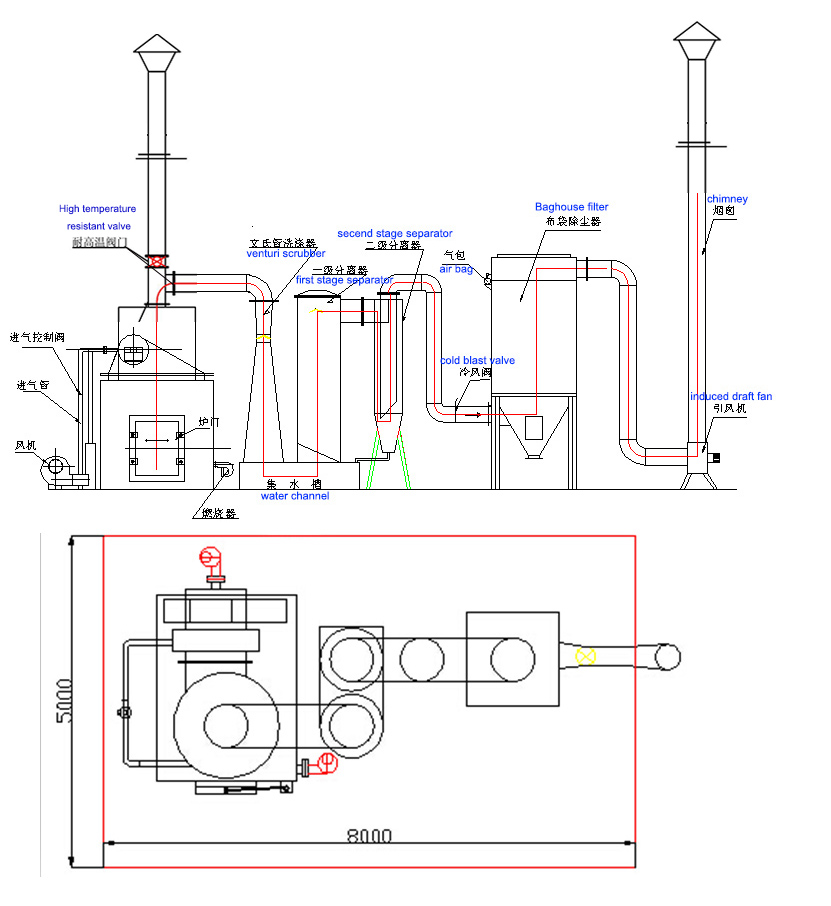

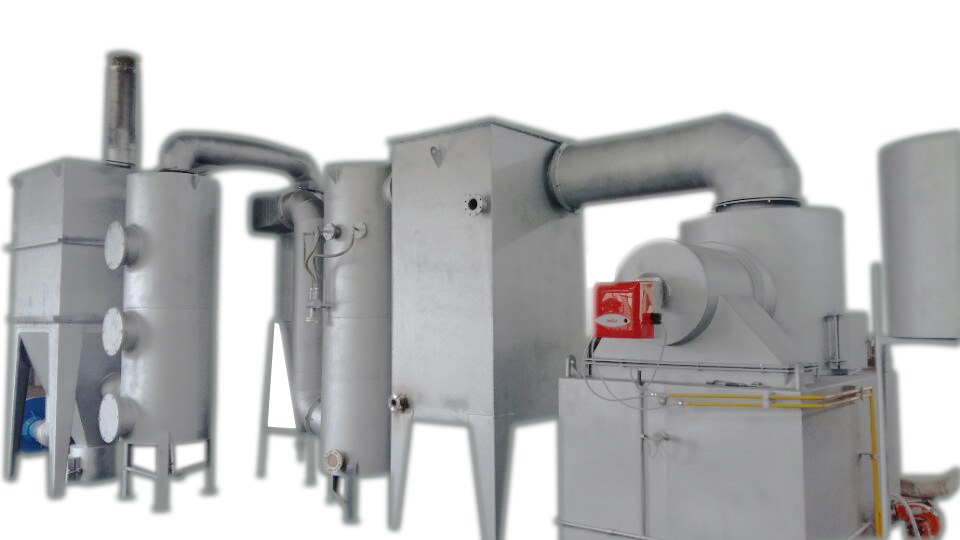

Optional MCFS-500G Incinerator with Enhanced Gas Scrubber Unit
