Veterinary Portable Color Doppler Ultrasound Machine

Payment:
T/T in advance, Western Union, L/C, MoneyGram, Cash
Lead time:
3-15 working days
MOQ:
1 set
Model:
MCV-B04

    Veterinary Portable Color Doppler Ultrasound Machine


    MC-DU-12 provides advanced practical clinical solutions for ultrasound diagnosis of cattle, dogs, horses, cats, goats, camels, sheep and pigs.

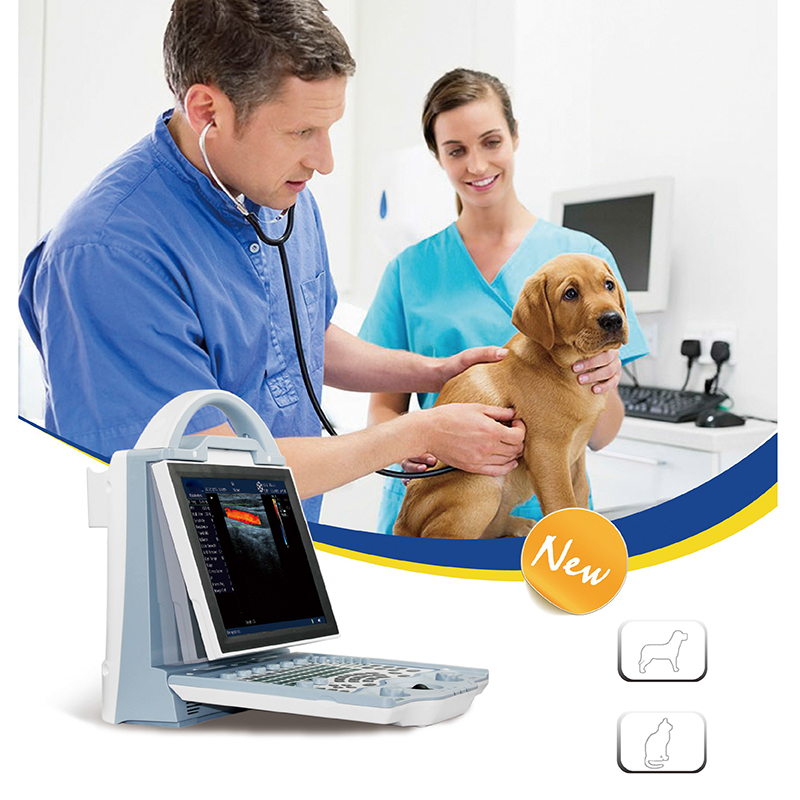

    Veterinary Portable Color Doppler Ultrasound Machine 7


    General Description

    * Built-in embedded A8 platform, totally against virus invasion, with high reliability.

    * Operating system: Linux

    * Digital multi-beam forming technology, precision delay-by-point dynamic receive focus, ultra-wideband imaging, adaptive image optimization, adaptive angiography, adaptive Doppler imaging.

    * Ultra-wideband fully digital beam former: Dynamic Focus

    * Gray-scale imaging unit

    * M-mode imaging unit

    * Visual adjustable dynamic range

    * Gray-scale imaging unit, grayscale ≥256 levels, with excellent contrast resolution and the audience subtle and uniformity

    Technical parameters

    Gray scale:256 levels;

    Color scale:256 levels;

    Display:10.4’Flicker-inch high-resolution LCD dedicated medical color display

    Power supply:100-240V~ 1.2-0.6A  Fre:50-60Hz;

    adapter output:DC12.8V 3.0A;

    power consumption:≤100VA

    main unit dimension:approx 256×150×326(mm,L×W×H);

    main unit N.W.:4.5Kg(without accessories);

    Multimedia and peripheral equipment

    video printer;

    i-Station integrated workstations, to achieve store images, report generation and cloud printing capabilities;

    U disk (file management support, software upgrades, and one-key store function), DICOM interface, easy to doctor's data management, remote transmission;

    Dual TV output:PAL/NTSC.

    Probes

    3.5MHz R60 convex probe (2.0/2.5/3.5/5.0MHz)

    7.5MHz L40 linear probe (6.0/6.5/7.5/9.0MHz)

    6.5MHz R20 micro-convex probe(5.0 / 6.5 /7.5 / 9.0 MHz)

    6.5MHz linear rectal probe (4.5 / 5.5 / 6.5 / 7.5MHz)

    Operating mode

    B,B/B,4B mode

    M,B/M mode

    CFM

    PDI

    PW

    THI

    Operating System Setup

    * Basic Setting

    * Interface language, time, date and date format, screen-savers time settings, key tone setting, standard setting, font brightness setting.

    * Formula preset: gestational formula for cattle, dogs, horses, cats, goats, camels, sheep and pigs.

    * Notes preset: disease, routine, abdominal, obstetric, cardiac, urology, superficial seven kinds, can be preset for each common noun, and can be added, modified and edited according to the actual requirements, very user-friendly

    * Stored presets: Photo storage format selection: BMP, PNG format (image compression format).

    * Password preset

    Main functions

    1.  System Preset;

    2.  I-User-defined, to store the setting while he used the main unit to save time to set again.

    3.  Probe switch;

    4.  Mode switch;

    5.  Magnification / Depth selection;

    6.  Frequency switch;

    7.  frame switch;

    8.  ID;

    9.  Compression curve

    10.IP;

    11.Focus switch;

    12.Up/down, left/right reverse;

    13.TGC, Gain & Dyn adjustment;

    14.iImage optimization imaging technology;

    15.Color frequency,PRF,wall filter adjustment;

    16.Deflection angle, sample volume, linear color deflection, velocity scale, baseline function can be adjusted;

    17.Adjustable harmonic;

    18.B mode normal measurement, M mode routine measurements, CFM mode routine measurements, PDI mode routine measurements, PW mode measurements; and abdominal measurement applications, obstetrics application measurement, measuring cardiac applications, measuring urinary system applications, superficial organ application measurement;

    19.sound power adjustable;

    20.puncture guiding function;

    21.Gravel location positioning function;

    22.Built-in disk storage 16G, mass storage images, reports, videos, permanent storage, (BMP format picture ≥ 10 thousands, PNG format images ≥100 thousands)

    23.image management function;

    24.Mass video storage and replay(Under B mode:380,under M mode: 4000)

    25.Body mark;

    26.Note input;

    27.Patient info input;

    28.Report generation;

    29.One key store;

    30.One key to get report;

    31.One key to transfer image to Network Printer to print the image;

    32.LCD brightness adjustable;

    33.Energy saving;

    Measurement & calculation

    Routine measurement: measurement software package & report for B mode,M mode,D mode

    OB software for Cattle, dogs, horses, cats, goats, camels, sheep and pigs;

    Software package for urological measurement & analysis

    Software package for superficial organs measurement & analysis

    Software package for cardio measurement & analysis

    Reports

    OB, Cardio, Urological report

    Marks

    127 kinds body marks with arrow position

    Note mark, text input;

    Arrow mark

    Standard configuration

    Main unit  1PC

    3.5MHz convex probe  1PC;

    6.5MHz linear rectal probe or 7.5MHz linear probe or 6.5Mhz micro-convex probe

    Working station 1 set

    Net cable 1pc

    Optional parts

    Foot switch

    trolley

    video printer(UP-897MD)

    Ethernet Switch
