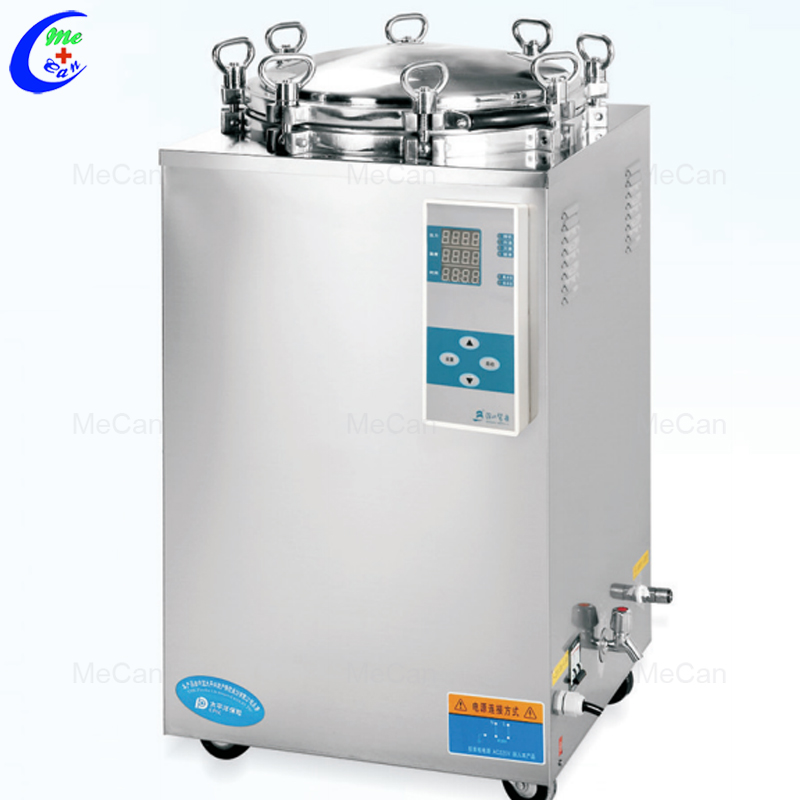

Vertical Steam Autoclave Sterilizer For Cubilose
Vertical Steam Autoclave Sterilizer For Cubilose
Features
1:Fully stainless high-alloy steel structure
2:Digital display of working status, touch of key
3:Manual or semi-automatic control
4:Auto discharge the cool air, and steam discharging automatically after sterilization
5:Automatically shut off with beep reminding after sterilization
6:The accident protection system
7:Automatic off of heating elements at reducing of a water level
8:Blocking top cover at working
9:Blockage of starting at opening
10:Heater protection sensor
11:Pressure and water level control
12:With three stainless steel sterilizing baskets
13:Easy to operate, safe and reliable
14:The drying system is optional, which can be equipped according to the customers request
Specification:
Model | MC-LS-35LD | MC-LS-50LD | MC-LS-75LD | MC-LS-100LD |
Chamber volume | 35L(φ318×450)mm | 50L(φ340×550)mm | 75L(φ400×600)mm | 100L(φ440×650)mm |
working pressure | 0.1-0.22MPa | |||
Working temperature | 120-134℃ | |||
Max working pressure | 0.23 Mpa | |||
Heat average | ≤±1℃ | |||
Timer | 0~99min or 0~99hour59min | |||
Adjustment of temperature | 105~134℃ | |||
Power | 2.5Kw/AC220V.50Hz | 3Kw /AC220V.50Hz | 4.5KW AC220V.50Hz | |
Overall dimension | 480×460×850(mm) | 520×520×980(mm) | 560×560×980(mm) | 590×590×1080(mm) |
Transport dimension | 570×550×970(mm) | 590×590×1110(mm) | 650×630×1150(mm) | 680×650×1220(mm) |
G.W/N.W | 56Kg/ 42Kg | 68Kg/50Kg | 90Kg/70Kg | 105Kg/85Kg |
