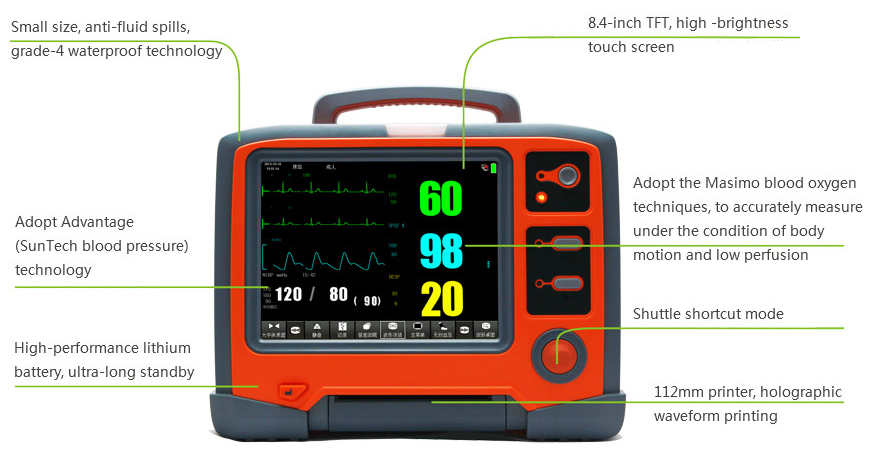

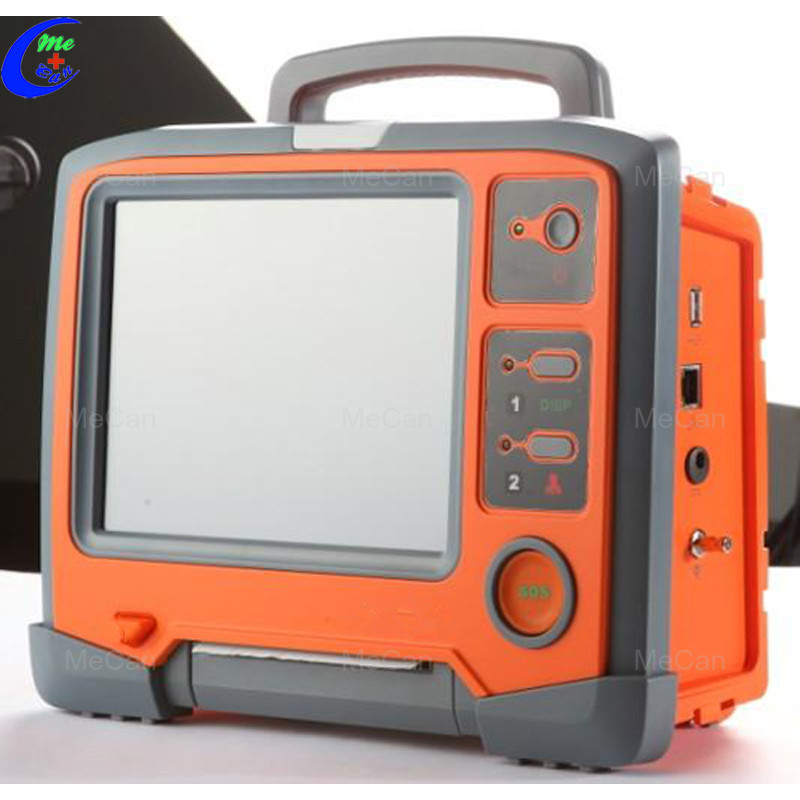

Waterproof Ambulance Emergency Transport Patient Monitor

Waterproof Ambulance Emergency Transport Patient Monitor

Features

Physical specifications
Weight (Standard Configuration):Size300(W)×270(H)×145(D)mm

Display
Type and size:8.4"Color TFT
Resolution: 800*600
Number of trace: 6 traces
Sweep speed: 12.5mm/s,25mm/s,50mm/s
Display modes
Standard display
Large-font display
Trend coexist display
OxyCRG dynamic view display
Drug does calculation: Yes
Standby mode:Yes
Opertion Environment:
Temperature: 0ºC to 40ºC
Relative Humidity: ≤85% (noncondensing)
Atmospheric pressure: 860hPa～1060 hPa
Storage/Transportation
Temperature: -20ºC to 60ºC
Humidity:≤93%  (noncondensing)
Atmospheric pressure: 860hPa～1060 hPa
Electrical
Adapter: Input AC 100-240V  50/60Hz1.7A      OutputDC19V3A
Vehicle power supply: DC 12-14V 5A
AC input power: 70VA
Battery
Type: Exchangeable Li-ion battery
Voltage: 14.8V
Maximum number of batteries: 2
Battery life: 7 hours with 2 battery
Charge time (Monitor switched off): 4 Hours with 2 battery
Charge time (Monitor switched on): 10Hours with 2battery
Patient Range
Categories: Physical alarms and Technical alarms
Priority: High, Medium, and Low
Alarm sound levels: 0,1,2,3,4
Notification: Visual and Audible
Pausing: 1min, 2min, 3min
Setting: Latch, Unlatch
Performance Specifications
Data Storage　
Trend Graph
Reviewable Parameters: HR,ST,SpO2,PR,NIBP,RR,TEMP
Resolution: 1s, 5s, 5min, 10min
Trend Data: 1 hour short trend at 1s resolution
Trend Table : 256 hours long trend at 1min resolution
Reviewable Parameters: HR,ST,SpO2,PR,NIBP,RR,T1,T2,TD
Resolution: 1,5,10,30,60min
Trend Data: 256 Hours trend date for all parameters
NIBP measurement: 400 Groups
Reviewable Parameters: ECG,SpO2,NIBP,RESP,TEMP,HR_H>180,HR_L<60, SpO2<90%，RR_L<10,RR_H>40, TEMP_H>40ºC,TEMP_L<34ºC
