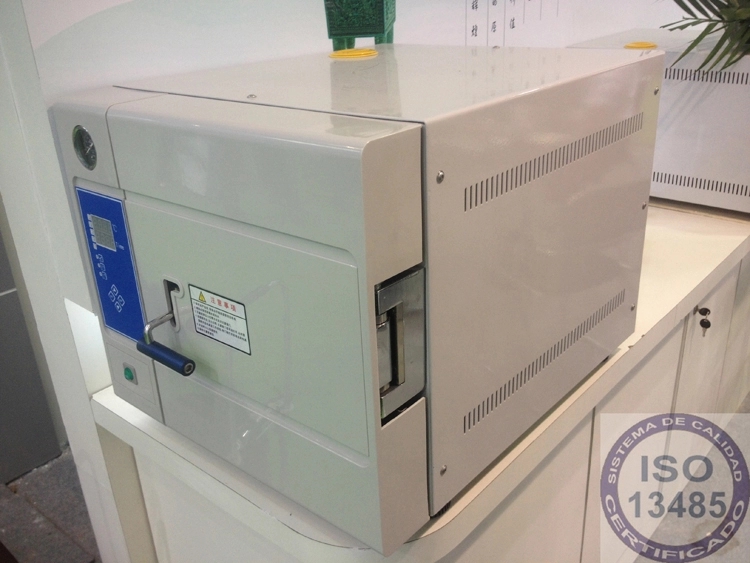

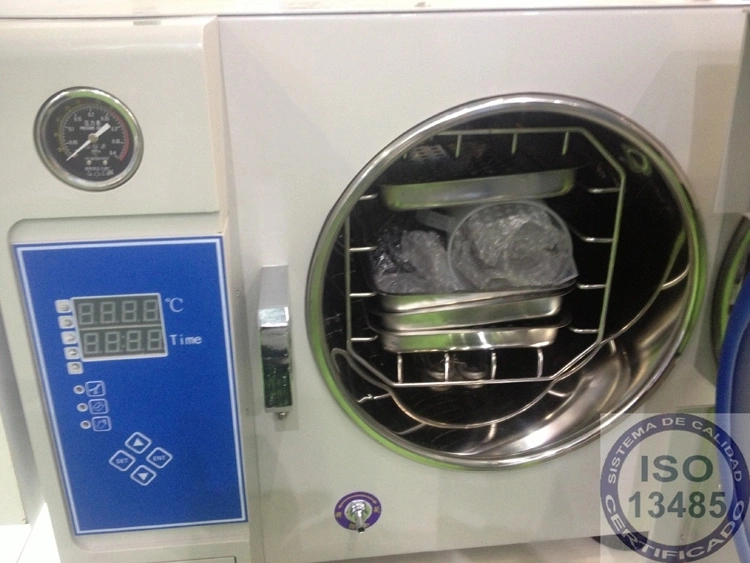

Table Top Autoclave Sterilizer, Steam Sterilizer Autoclave with Drying Function
Table Top Autoclave Sterilizer, Steam Sterilizer Autoclave with Drying Function
Application
The sterilizer is a table type in safety and auto-controlled, which is designed for the unit of medical health, pharmacy, science and technology, etc. And mostly suitable for sterilizing of surgical, dental and eye instrument, glassware medicine, culture medium and biological dressing, food and other goods.
Features
1. For 4~6 minutes rapidly sterilizing.
2. Digital display of working status, touch type key.
3. Exhaust the cool air automatically.
4. Safe protection of water lacking.
5. Door safety lock system.
6. With four stainless steel sterilizing plates.
7. The chamber of the sterilizer is made of stainless steel.
8. Automatically shut off with beep reminding after sterilization.
9. With drying function.
10. With 3 fixed cycles of water adding, temperature rising, sterilizing, drying steam discharging controlled automatically.
11. The whole process of water adding, temperature rising, sterilizing, drying steam discharging controlled automatically.
12. Steam-water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.
Specification
| MODEL | MC-TM-XD35D | MC-TM-XD50D |
| Sterilizing chamber volume | 35L(φ300×500 mm) | 50L(φ340×550 mm) |
| Maximum working pressure | 0.22Mpa | |
| Maximum working temperature | 134℃ | |
| Adjustment of temperature | 105-134℃ | |
| Timer | 0-60 min | |
| Chamber temperature equal | ≤ ± 1℃ | |
| Source power | 2.7KW/AC 220V 50Hz | |
| Sterilizing plate | 400×200×30 mm (4 piece) | 500×250×30 mm (4 piece) |
| Dimension | 730×550×510 mm | 700×600×540 mm |
| Package dimension | 820×680×650 mm | 880×730×700 mm |
| G.W / N.W | 90/73 kg | 105/86 kg |
