Medical Multifunctional Electric Stainless Steel Orthopedic Surgical Table

Medical Multifunctional Electric Stainless Steel Orthopedic Surgical Table

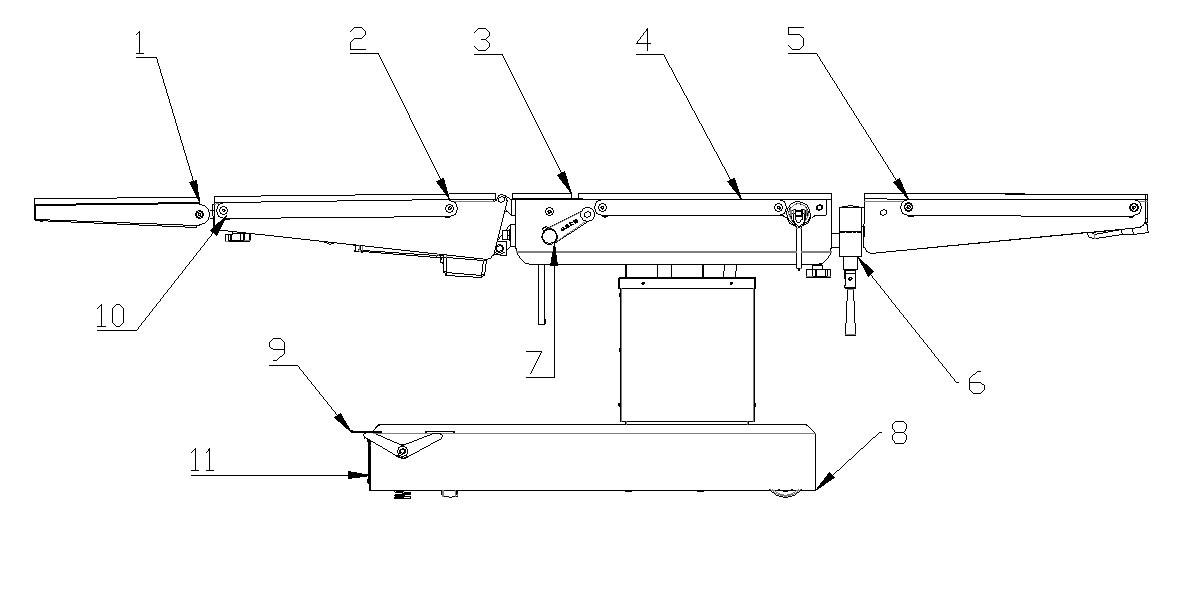

1.Headboard                    2.Backboard                         3.Waistboard                   4.Seatboard

5.Legboard                       6.Lock                                 7.Handle                         8.Base

9.Brake                            10.Guide                             11.Power switch

Specification

Size of the table top	2000 mm×480 mm
Lifting range	Min≤550mm  Max≥800mm
Tabletop lean forward	≥ 20°
Tabletop lean backward	≥ 25°
Tabletop lean left and right	≥ 20°
Backboard folding up	≥ 45
Backboard folding down	≥ 20°
Headboard folding up	≥ 30°
Headboard folding down	≥ 90°
Legboard folding down	≥ 90°
Legboard open	≥ 90°
Supply voltage	220V±22V
Frequency	50Hz±1Hz
Input power	600VA
Weight	180kg
Working mode	Short-term load continuous operation
Equipment category	Non AP / APG equipment
Enclosure rating	IPX4
Equipment safety classification	I type B
Fuse models and specifications	T3AL250V(Φ5×20mm

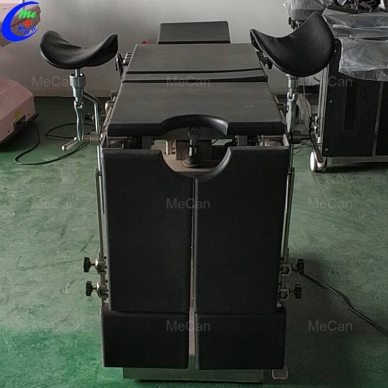

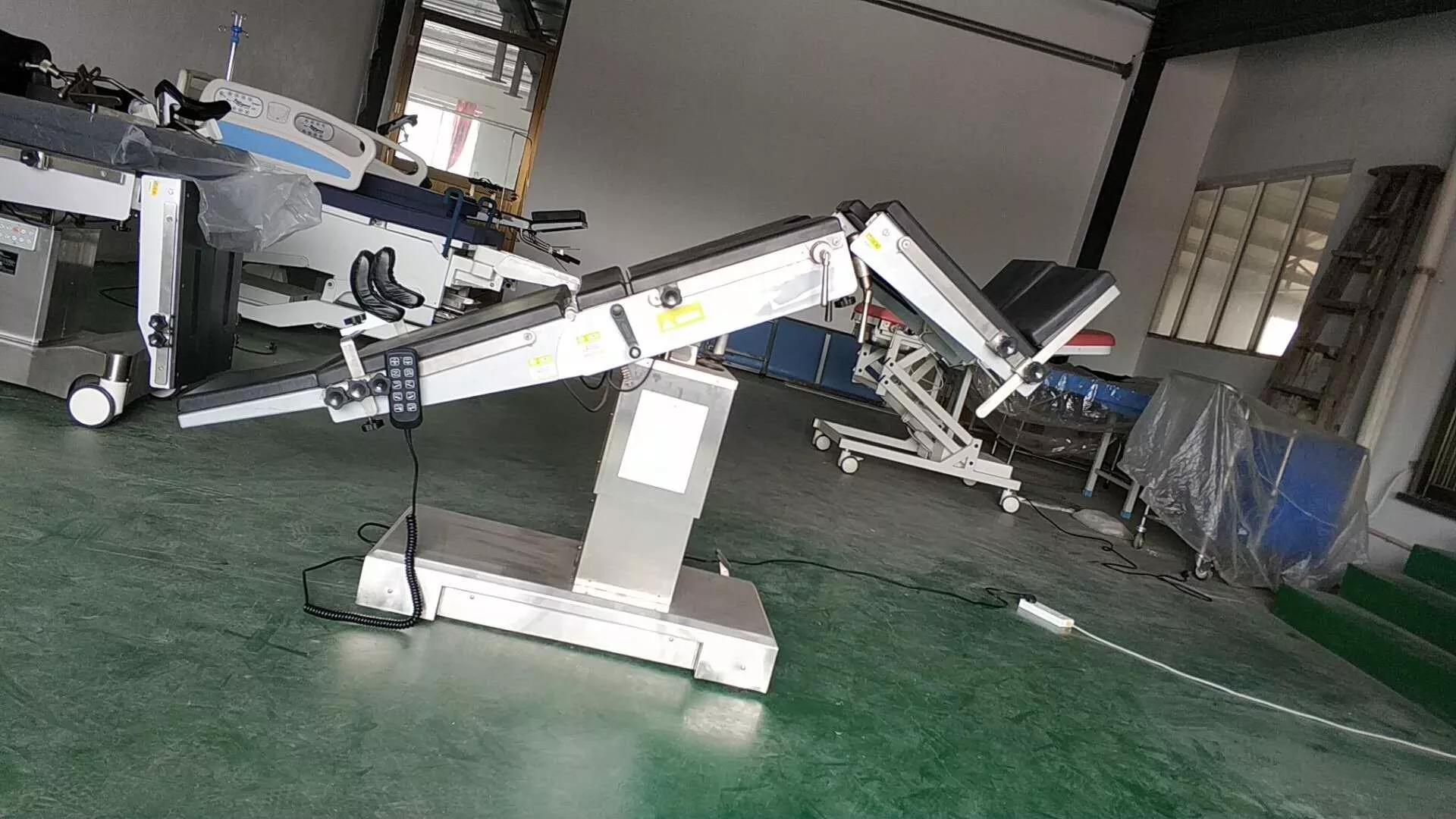

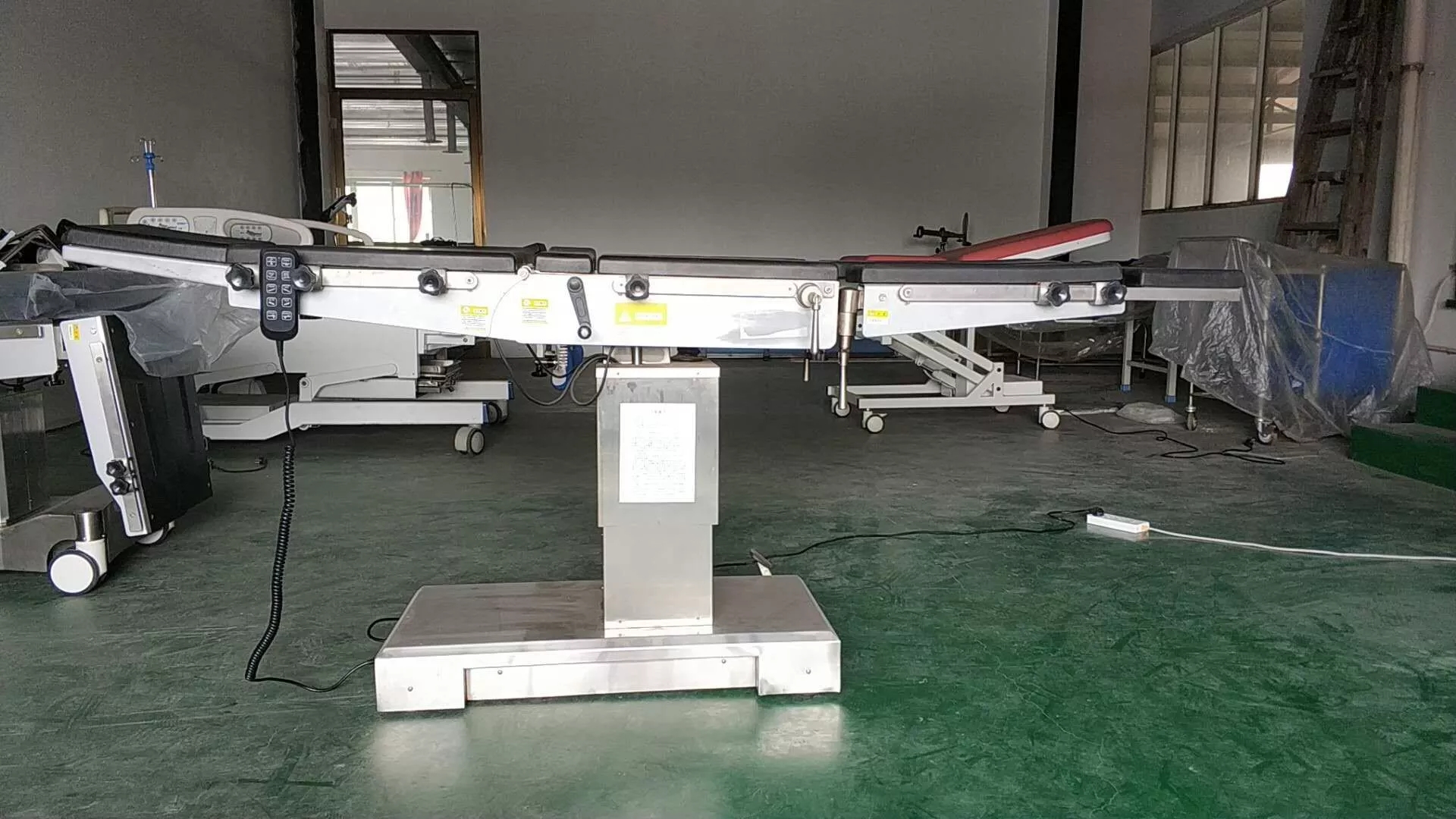

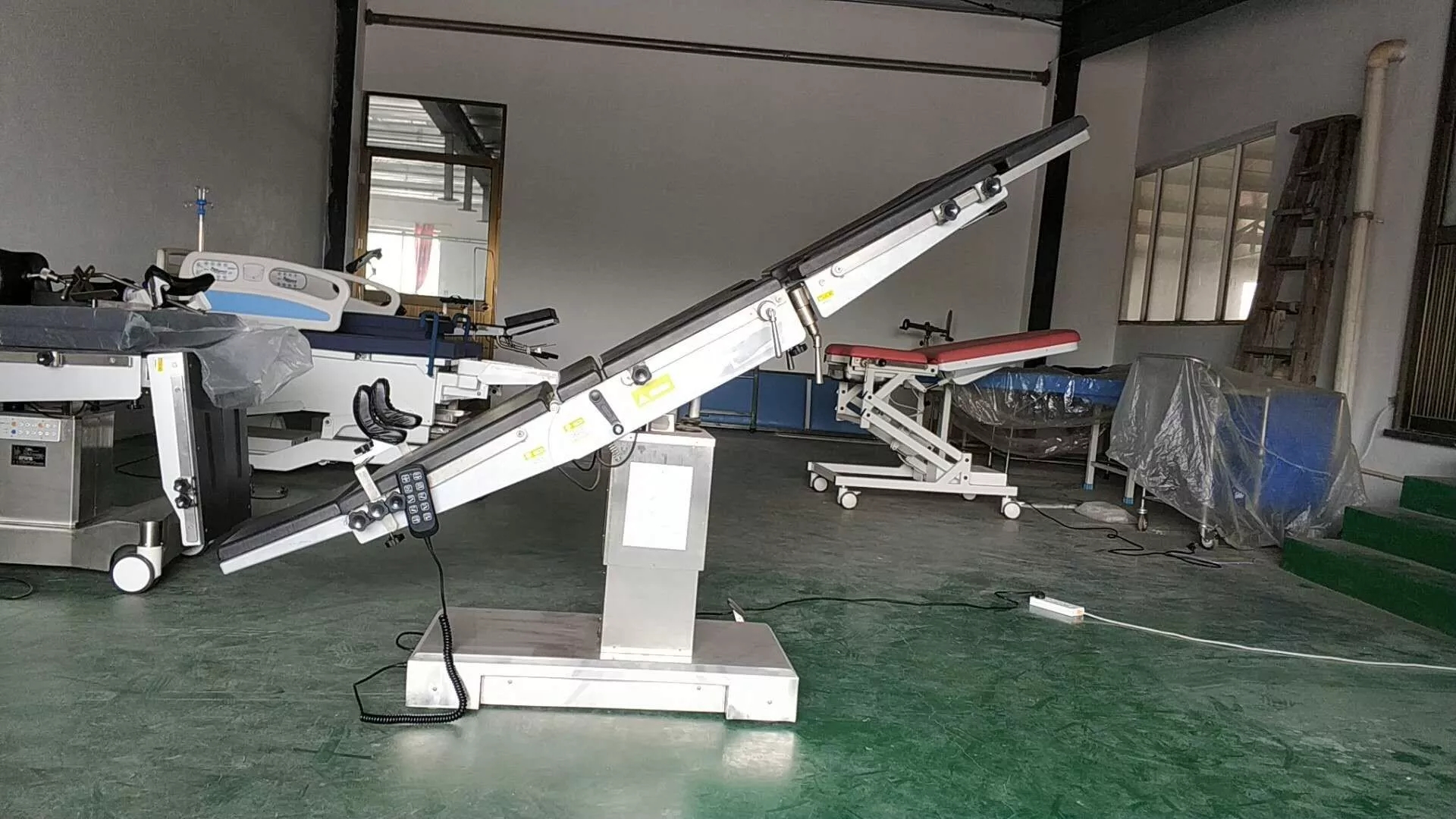

More Pictures
