What is the detail of our Protein Analyzer ?
Main Features:
7 inch Color Touch Screen
1,2,4 independent channels to test different items simultaneously
RF card design to simplify operation, automatic calibration
Automatic mixing and blanking
Short test time with high efficiency and precision
Build-in thermal printer
Support LIS software

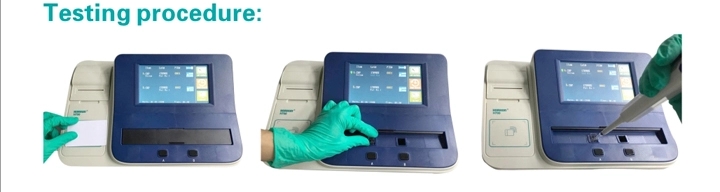

Testing procedure:
Item | Sample | Range | Precision (CV) |
hsCRP | Blood/Serum | 0.4 ~350mg/L | ≤5% |
HbA1C | Blood | 3%~15% | ≤5% |
mALB | Urine | 5-220mg/L | ≤5% |
ASO | Serum | 50-600IU/L | ≤6% |
RF | Serum | 3~160IU/L | ≤6% |
Cys-C | Serum | 0.3~8mg/L | ≤10% |
D-Dimer | Serum | 0.3~20mg/L | ≤8% |
Step 1: Read card, automatic calibration;
Step 2: Add diluted sample into measuring cups;
Step 3: Add anti-body, automatic mixing, blanking and testing.
Specification:
Measuring time: 60 seconds (CRP), 3 minutes (HbA1C), 4minutes (ASO), 3 minutes (RF),
3minutes (Cys-C), 4 minutes (D-Dimer),
Sample: blood, serum, urine
Storage capacity: 10,000 test result
Printer: Internal printer
Interface: RS232, can connect PC and external printer
Display: 7 inch touch screen
Working Temperature: 10-30℃
Power Supply: 110-240V, 50/60Hz
Dimensions: 38.6*27*15.5cm
