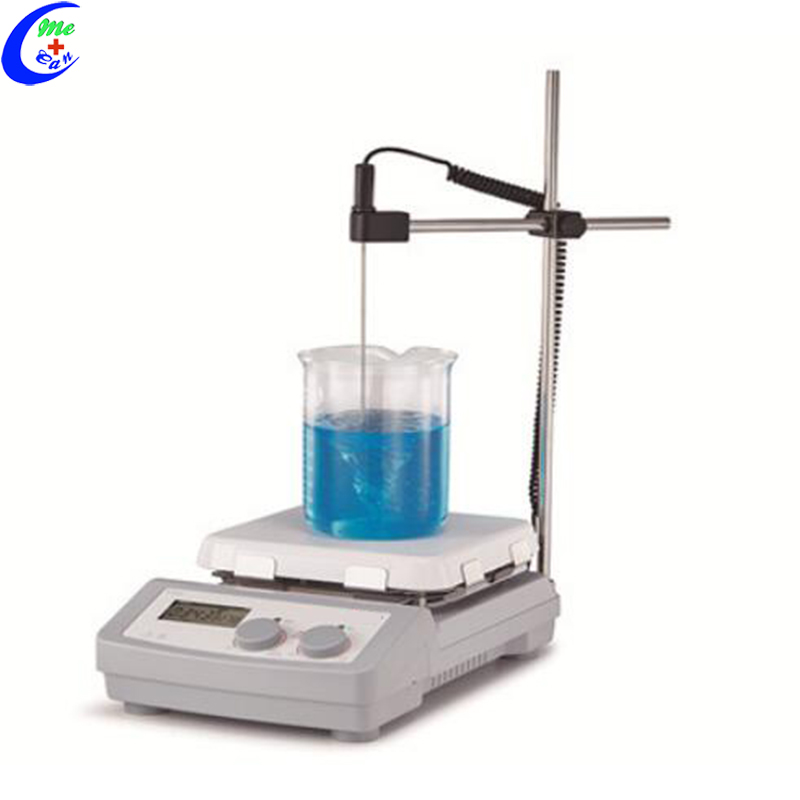

    Small Stirring Hotplate with Magnetic Stirrer

    Model:MCL-D10

    Small Stirring Hotplate with Magnetic Stirrer 5

    Features:
    •   LCD display for precise monitoring of speed and temperature
    •   Built-in PID controller ensures safe heating of the medium with overheating protection
    •   Max. heating plate temperature 550°C
    •   Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer
    •   External temperature  control  is  possible by  connecting  the temperature sensor(PT1000) with an accuracy at ±0.2°C
    •   Digital speed controlling, max. speed at 1500rpm
    •   Outstanding brushless DC motor enables more stirring power
    •   Two rotating knobs enable easy adjustment of speed and temperature
    •   The “HOT” warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off
    •   Remote function provides PC control and data transmission
    Specification:

    Specifications

    MC-D10

    Work plate Dimension [W x D]

    184x184mm (7 inch)

    Work plate material

    Glass ceramic

    Motor type

    Shaded pole motor

    Motor rating input

    15W

    Motor rating output

    1.5W

    Power

    1030W

    Heating output

    1000W

    Voltage

    100-120/200-240V  50/60Hz

    Stirring positions

    1

    Max. stirring quantity, [H2O]

    10L

    Max. magnetic bar[length]

    80mm

    Speed range

    0-1500rpm

    Speed display

    Scale

    Temperature display

    LED

    Heating temperature range

    Room temp.-550°C, increment 5°C

    Temperature  control accuracy

    ±10°C

    Overheating protection

    580°C

    Temperature  display accuracy

    ±1°C

    External  temperature sensor

    PT1000 (accuracy ±0.2)

    "Hot" warning

    50°C

    Protection class

    IP21

    Dimension [WxDxH]

    215x360x112mm

    Weight

    4.5kg

    Permissible ambient temperature and humidity

    5-40°C, 80%RH
