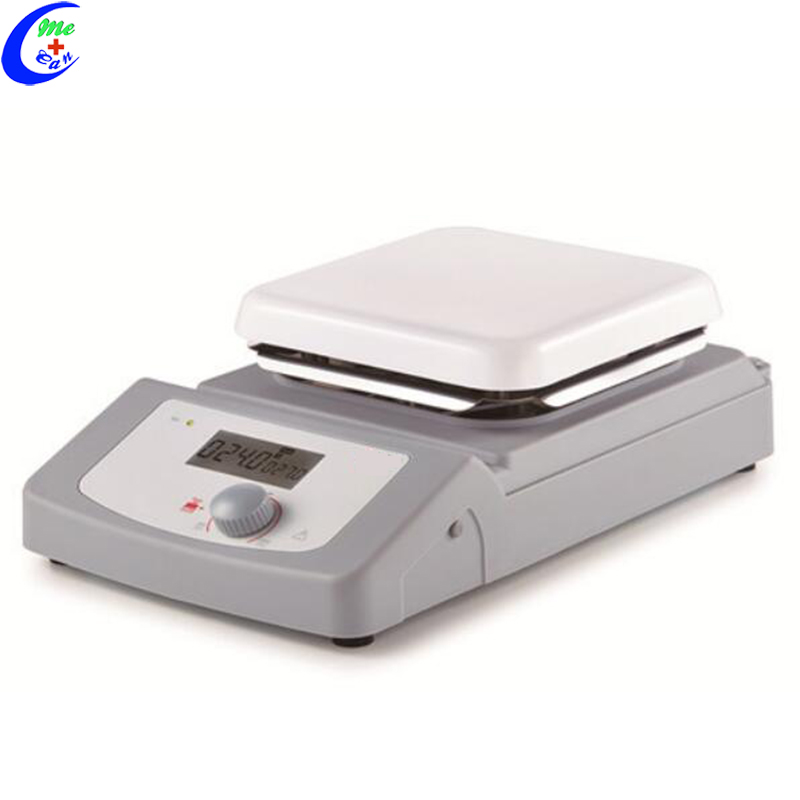

Small Chemical Electric Magnetic Stirrer
Small Chemical Electric Magnetic Stirrer
Model:MCL-D29
Features:
• High resolution LCD displays actual speed.
• Brushless DC motor is maintenance free
• Aluminum cover with ceramic work plate, allows for immediate heat transfer
• External temperature control is possible with temperature sensor PT1000
• Digital temperature control with max. temperature at 380°C
• Digital speed control with max. speed up to 1500rpm
• Max. stirring quantity of H2O at 5L
Specification:
Specifications | MCL-D29 |
Work plate Dimension | 140x140mm |
Work plate material | Aluminum cover with ceramic coating |
Motor type | Brushless DC motor |
Motor rating input | 2.4W |
Motor rating output | 1.8W |
Power | 10W |
Voltage | 100-120/200-240V 50/60Hz |
Stirring positions | 1 |
Max. stirring quantity[H2O] | 5L |
Max. magnetic bar[length] | 50mm |
Speed range | 200-1500rpm |
Speed display | LCD |
Control accuracy of sensor | ±20rpm |
Protection class | IP21 |
Dimension [W x D x H] | 320x180×108mm |
Weight | 2.2kg |
Permissible ambient temperature and humidity | 5-40°C 80%RH |
