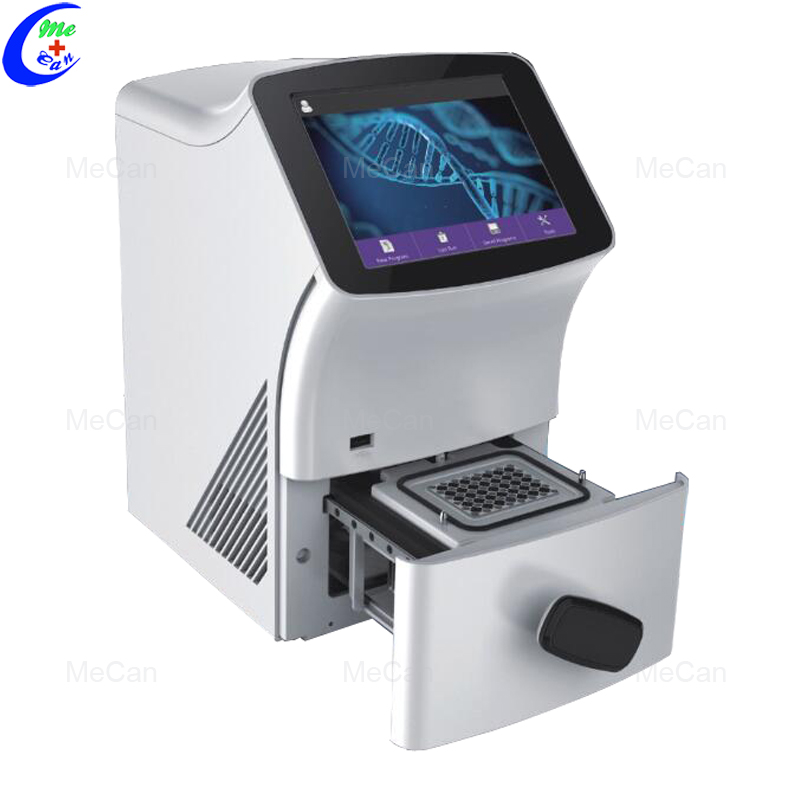

PCR Machine
Polymerase Chain Reaction RTPCR Real Time PCR 1
Polymerase Chain Reaction RTPCR Real Time PCR 1

Polymerase Chain Reaction RTPCR Real Time PCR

Payment:
T/T in advance,Western Union,L/C,MoneyGram,Cash
Lead time:
3-15 working days
MOQ:
1 set
Model:
MCL-PCR11

    Polymerase Chain Reaction RTPCR Real Time PCR

    Main Features

    1. Block Sample Capacity: 48-well * 0.1ml

    2. Reaction Volume: 10-50ul

    3. Tubes Option: Low-profile white or clear 0.1ml PCR tube/eight strip tubes with optical flat cap

    4. Heating and Cooling Technology: The newest generation of Peltier technology for more than   one million thermal cycles

    5. Control Methods: Operate via PC remote contro; or the touch screen on instrument with limited function

    6 .Language: English

    7. Communications: USB 2.0 and LAN, export data via USB flash drive

    8. Display: 7'' Color TFT Touch Screen


    Real Time PCR


    Temperature

    Block Temperature Range 0℃~105℃
    Max. Heating Rate  7℃/s
    Max. Cooling Rate 6℃/s
    Temperature Uniformity ≤±0.2℃ (at 90℃)
    Temperature Accuracy ≤±0.2℃ (at 90℃)
    Display Resolution 0.1℃
    Ramping Rate Adjustable Yes
    Mode of Temperature Control  Sim-tube & Block

    Optical Module

    Excitation  Long life LED
    Detection  High sensitivity photoelectric detector
    Calibrated Dyes at Installation Channel 1:FAM、SYBR,   Channel 2:VIC、HEX、JOE
    Fluorescence Excitation Range 470 — 500nm
    Fluorescence Detection Range  Channel 1:520 — 540nm,  Channel 2:540 — 700nm
    Data Export Formats Excel, TXT

    Computer

    Operating Systems Windows7、Windows8、Windows10
    CPU Speed  2.0 GHz
    Display Resolution 1366×768
    Memory 2.00 GB RAM
    Available Hard Disk  > 20 GB

    Other Features

    Power Global switch power supply:  85V-265V, 50-60Hz
    Consumption  400W
    Net Weight 8.2KG
    Dimensions (w x d x h) 205×250×320mm
