PCR Machine
Real Time PCR Thermal Cycler 1
Real Time PCR Thermal Cycler 1

Real Time PCR Thermal Cycler

Payment:
T/T in advance, Western Union, L/C, MoneyGram, Cash
Lead time:
3-15 working days
MOQ:
1 SET
Model:
MCL-PCR9

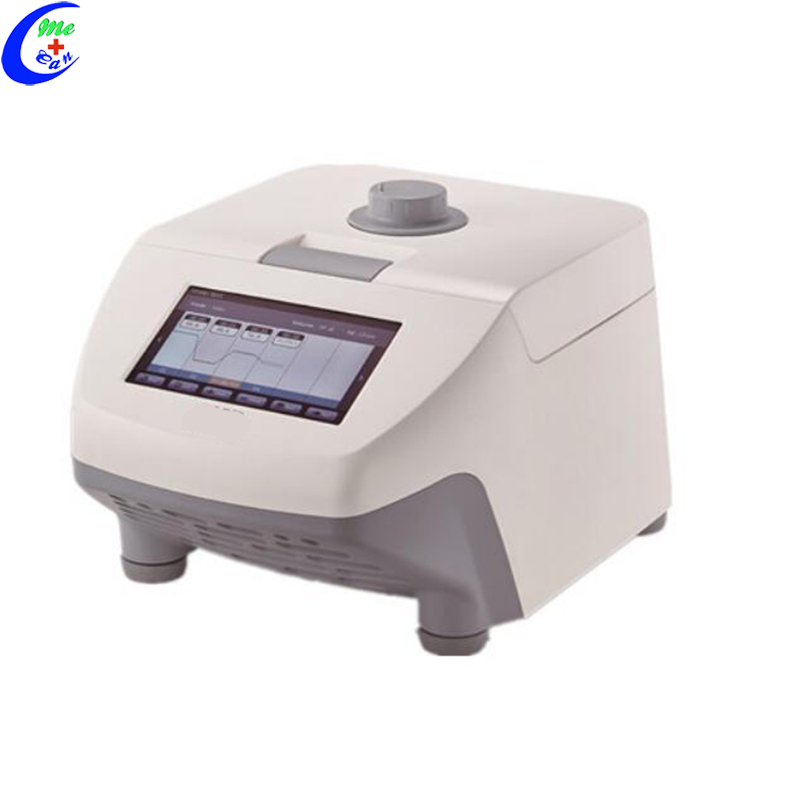

    Real Time PCR Thermal Cycler

    Model:MCL-PCR9

    Real Time PCR Thermal Cycler 2Features:

    •   Reliable  heating/cooling  elements  and  precise temperature control
    •   Unique  design  of  block  ensur es  the temperature uniformity and repeatable results
    •   7 inch Large color touch panel screen for easy programming with user friendly software
    •   High performance DSP and temperature control
    •   Fast heating and cooling rate
    •   Large user program storage

    Specification:

    Specifications

    MCL-PCR9

    Sample Capacity

    96X0.2mL PCR tube,  8X12 PCR plate or 96 well plate

    Heating Temperature Range

    4-105℃

    Lid Temperature Range

    30-110℃

    Temperature Display Accuracy

    ±0.1℃

    Temperature Control Accuracy [at 55℃]

    ±0.3℃

    Temperature uniformity[at 55℃]

    <0.3℃

    Max. Heating/Cooling Rate

    3℃Sec

    Gradient Temperature Setting Range

    30-99℃

    Gradient Range

    1-42℃

    Adapter block material

    aluminum

    Display

    7” LCD 800x480

    Input

    Touch panel

    User defined file system

    Max. 30 segments 99 cycles  max. 16 folder and 16 files each folder

    Power off protection

    Yes

    Power Supply

    100-120V/200-240V,50/60Hz

    Dimension [D×W×H]
    ( without the heating block )

    280x370x250 mm

    Weight

    11kg
