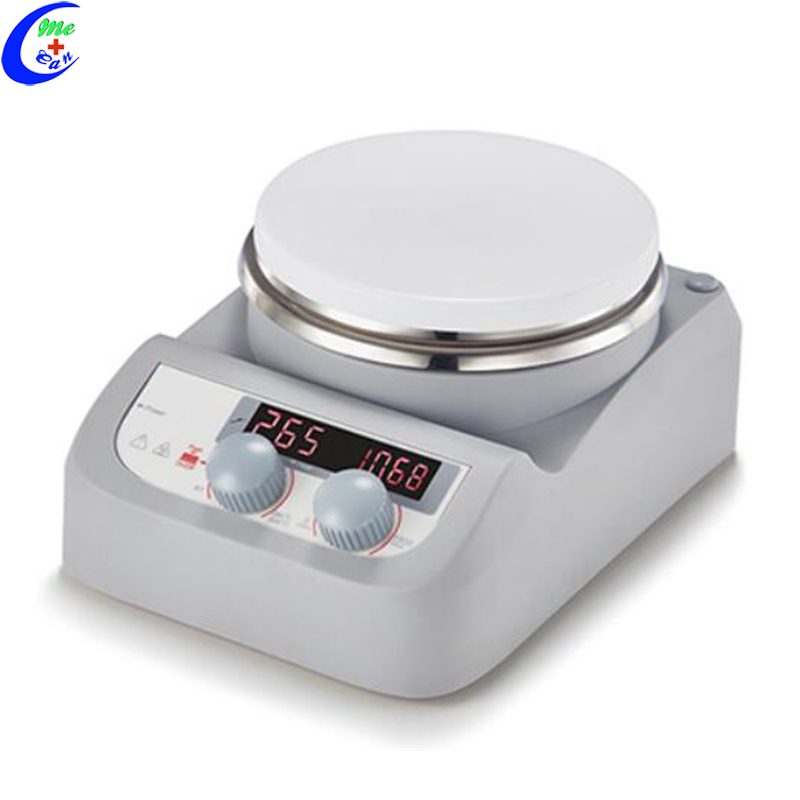

    Portable Electric Hot Plate and Magnetic Stirrer for Laboratory

    Model:MCL-D25

    Portable Electric Hot Plate and Magnetic Stirrer for Laboratory 5Features:

    •   Digital temperature control with max. temperature up to 280°C
    •   Digital speed control with max. speed up to 1500rpm
    •  Stainless steel work plate with ceramic coating provides good chemical resistant performance
    •   External  temperature  control  is  possible  by  connecting  the temperature sensor(PT1000) with an accuracy at ±0.5°C
    •   LED display shows temperature and speed
    •   The “HOT” warning will flash when the work plate temperature is above 50°C even if the hotplate is turned off

    Specification:

    Specifications

    MCL-D25

    Work plate Dimension

    φ135mm(5 inch)

    Work plate material

    stainless steel cover  with ceramic

    Motor type

    Brushless DC motor

    Motor rating input

    5W

    Motor rating output

    3W

    Power

    515W

    Heating output

    500W

    Voltage

    100-120/200-240V  50/60Hz

    Stirring positions

    1

    Max. stirring quantity[H2O]

    3L

    Max. magnetic bar[length]

    50mm

    Speed range

    100-1500rpm

    Speed display

    LCD

    Temperature display

    LCD

    Speed display resolution

    ±1rpm

    Heating temperature range

    Room temp.-280, increment 1°C

    Control accuracy of work plate

    ±1°C(<100°C) ±1%(>100°C)

    Over  heat Protection

    320°C

    Temperature  display accuracy

    ±1°C

    External  temperature sensor

    PT1000 (accuracy ±0.5°C)

    "Hot" warning

    50°C

    Protection class

    IP21

    Dimension [W x D x H]

    150×260×80mm

    Weight

    1.8kg

    Permissible ambient temperature and humidity

    5-40℃ 80%RH
