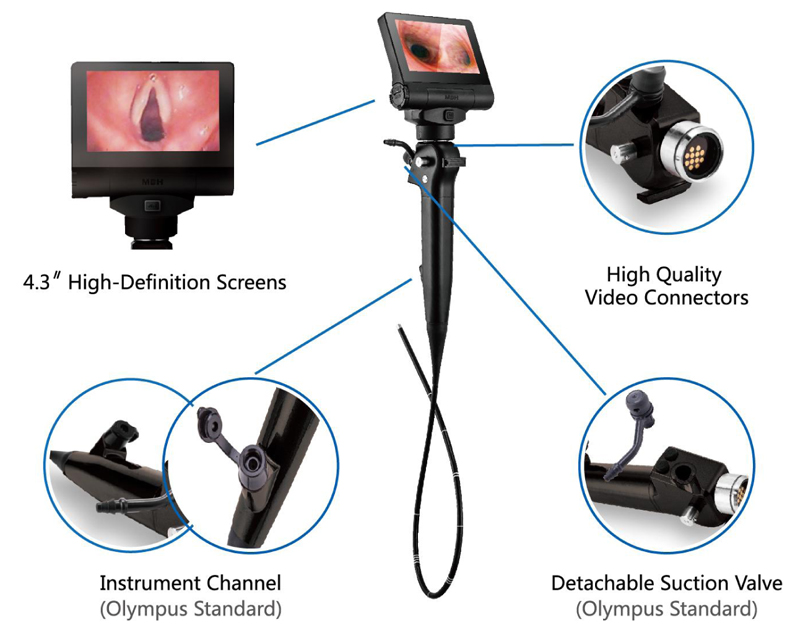

Surgical Portable Video Flexible Pediatric Bronchoscope

Payment:
T/T in advance,Western Union,L/C,MoneyGram,Cash
Lead time:
3-15 working days
MOQ:
1 set
Description:
Our video flexible pediatric bronchoscope is intended for use in clinical medicine for endotracheal/endobronchial examination and intubation, video nasotracheal intubation, double-lumen tube position examining, video laryngopharynx topical anesthesia, infant intubation.
Model:
MCS-EF11

    Surgical Portable Video Flexible Pediatric Bronchoscope

    Application

    1. Intubation for infant/pediatric/adult

    2. Difficult airway management

    3. Double lumen endobronchial tube (DLT) position confirmation

    4. Laryngeal mask airway (LMA) indication

    5. ENT diagnosis

    Basic parameter


    bronchoscope



    The weight of Monitor(without battery) 245g
    The weight of Operation Part 255g
    Total weight(without battery) 492g
    Continuous operating time(with fullly charged battery) ≥180min
    Photo storage capacity with 8GB ≥9999 pics
    Video recording time with 8GB 1152 min

    Disinfection Method

    Disinfection Method YES/NO
    ETO Gas YES
    Cidex OPA, Glutaraldehype YES
    Low Temperature Plasma (STERIS/STERRAD) YES
    Autoclave NO
    High Temperature Plasma NO

    Specification

    Insertion Tube Insertion Tube Outer Diameter Φ2.8mm
    Channel Inner Diameter NO
    Suggested ETT Tube Size Range Φ4-6.5mm

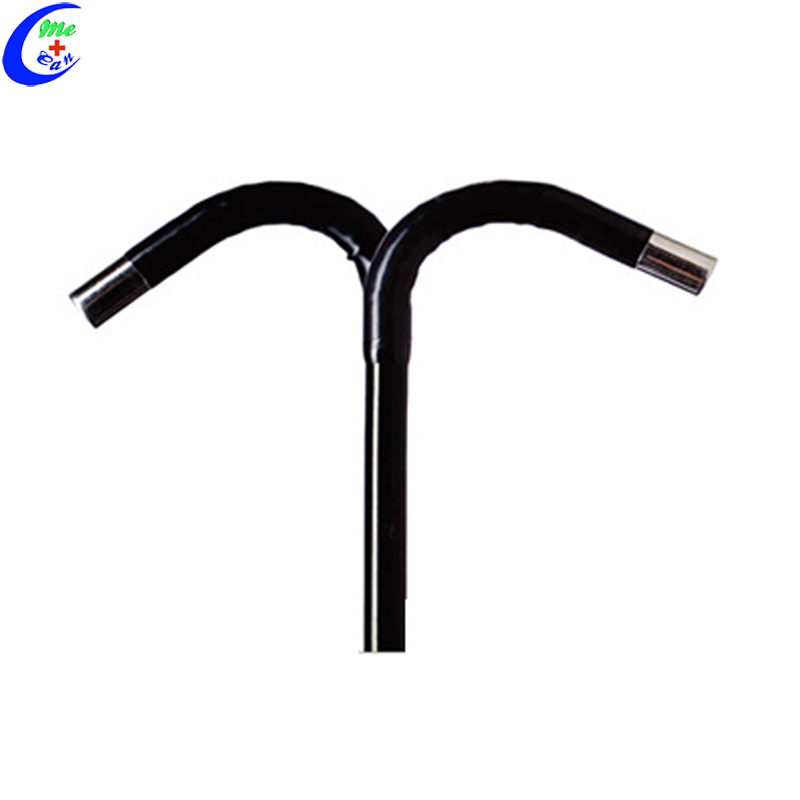

    Bending Section Angulation Range U180°/D130°
    Insertion Section Working Length 600mm
    Insertion Tube Materials TPU and Electrical Cables
    Optical System Field of View 90°
    Direction of View Forward viewing
    Depth of Field 3-50mm
    Display Part Imaging Resolution 400*400
    Display resolution 800(RGB)*480
    Screen 4.3 inch TFT LCD Touch Screen
    Color True Color
    Shoot Image/Video Yes
    Visual angle of display Up/Down160° Left/ Right 160°
    Storage 8G
    Video Output Yes
    B/W Balance Manual
    Power 3.7V lithium battery, rechargeable
    Light LED light Brightness adjustable, 5 levels
    Suitability ETT Size ≥4mm
    DLT Size 32Fr
    Application injection Yes
    Suction No
    BW/BAL No
    Drug Injection No
    Awaken Intubation Good
    Broncho Diagnostic Yes
    Biopsy No
    Naso-Pharyngo Laryngo Good

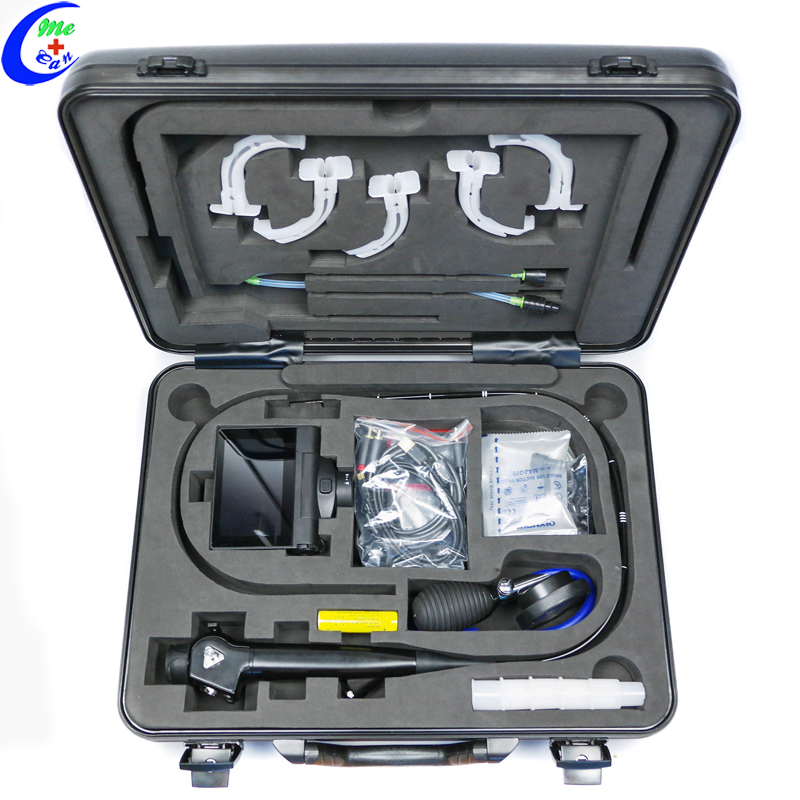

    More pictures

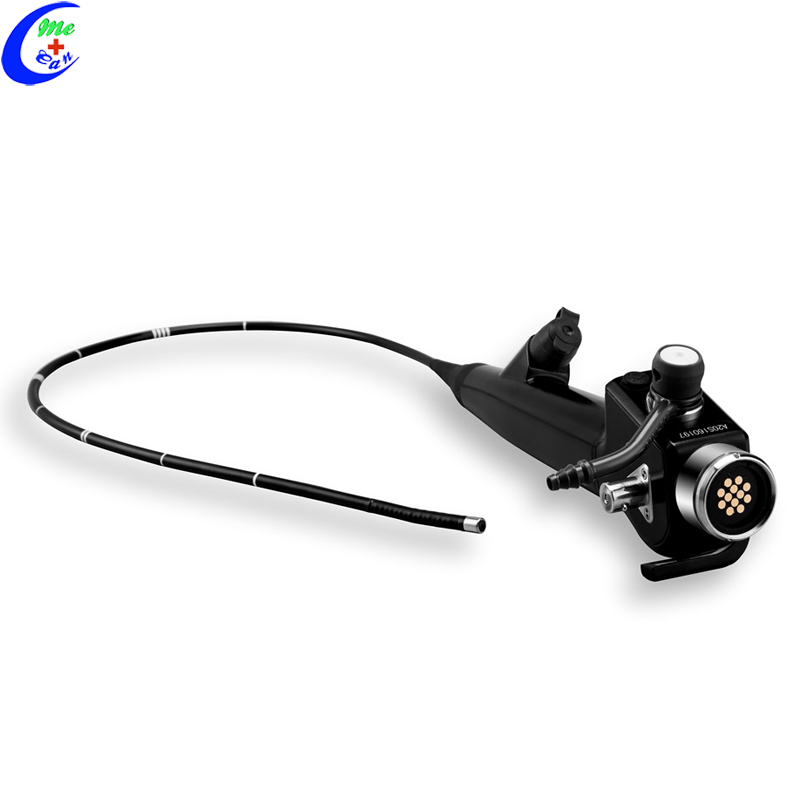

    flexible bronchoscope

    video bronchoscope

    pediatric bronchoscope
