PCR Test Machine PCR Thermal Cycler Analyzer
PCR Test Machine PCR Thermal Cycler Analyzer
Main Features
1.Display:7 ColorFull Touch Screen, Graphical Display of Protocols and running status.
2.Peltier Technology:Newest Peltier-based technolog,with long life up to 1000000 cycles
3.Language:English.
4.USB Flash Drive:Unlimited storage of protocols with USB flash drive.
5.Communication Ports:2USB2.0 and LAN.
6.Air Vent:Unique ventilation design,make possible for instruments placed side by side,saving lab space.

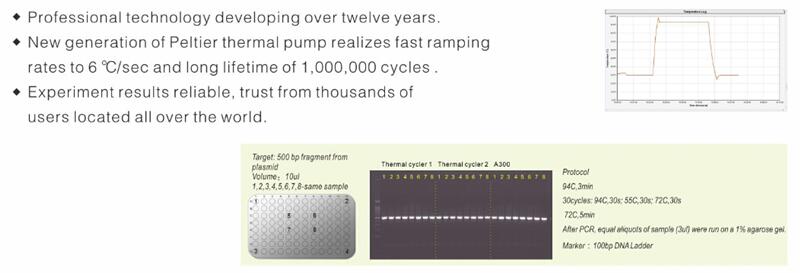

Innovative Technology

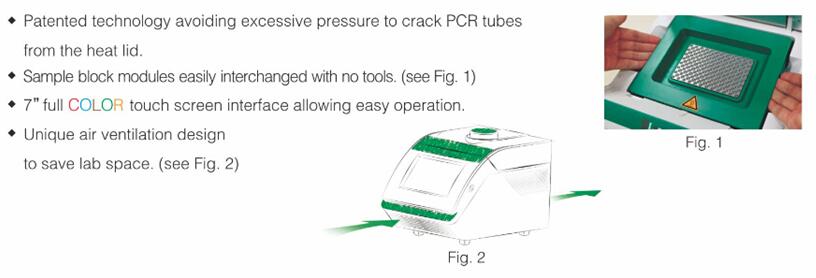

Patented Technology

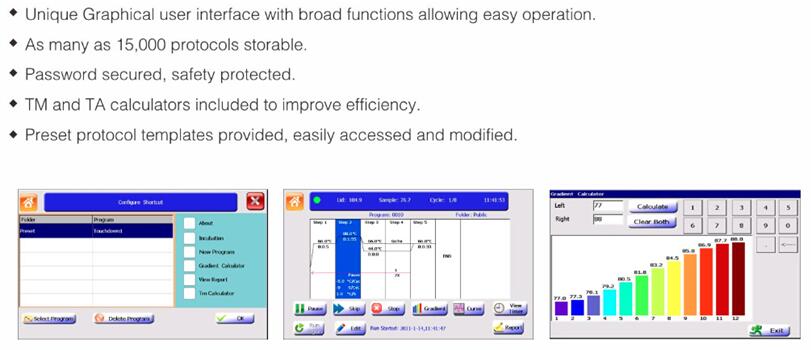

Friendly Interface

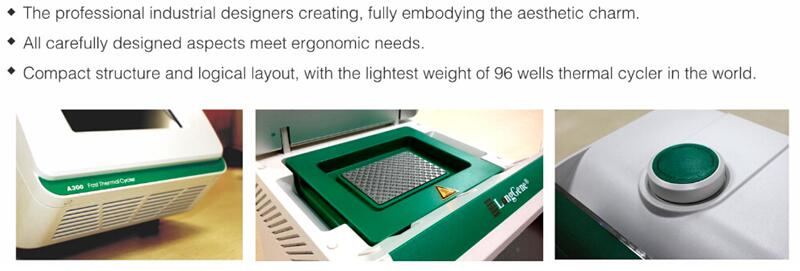

Modern Design
Specification
Optional Module Gradient Module Optional Module 96 Module：96wells×0.2ml 9677 Module：96wells×0.2ml+77wells×0.5ml 384 Module：384wells Multi-purpose: 9677 Module+In-situ Adapter Display 7"Color Touch Screen, graphical display of protocols and running status Communications 2 USB2.0 and LAN
Temperature
| Block Temperature Range | 0℃～105℃ |
| Max. Heating/Cooling Rate | 6℃/s |
| Temperature Uniformity | ≤±0.2℃ (at 95℃) |
| Temperature Accuracy | ≤±0.1℃ (35℃-100℃) |
| Display Resolution | 0.1℃ |
| Mode of Temperature Control | Sim-tube & Block mode |
Gradient
| Gradient Accuracy | ≤±0.1℃ (35℃-100℃) |
| Column Uniformity | ≤±0.2℃ (at 95℃) |
| Gradient Range | 30℃～105℃ |
| Temp. Differential Range | 1～30℃ |
| Gradient Capability | 12 Column |
Heat Lid
| Height of Heat Lid | Steplessly Adjustable Lid, accommodates all kinds of PCR tubes,strips and plates |
| Open Method | Innovative"TOP-OPEN"technology realizes open and lift in one step |
| Heat Lid Temperature Range | 30℃～112℃ |
| Auto Shut-Off | Yes |
Software
| Max. No. of programs | Max. 15,000 programs onboard, unlimited storage of protocols with USB flash drive |
| Max. Step | 30 Steps |
| Max. Cycle | 100 typical cycles, max. 60,000 nesting cycles |
| Time & Temp. | Yes , available for Long PCR & Touchdown PCR |
| Auto Pause / Auto Restart | Yes |
| Multi-user log in | With password-based authentication prevents from view, copy nd alteration of protocols |
| Tm calculator | Automatically calculate the melting and annealing temperature with two primer sequences |
| Hold at 4℃ | Yes, an Infinite incubation time at low temperature for overnight working |
| Program wizard | Yes, create PCR protocols with only a few clicks |
| Running Report | Yes, provide objective and precise information for the whole experiment |
| PC Connection | PC remote control to manage more than 120 units of A300 across the network |
Other Features
| Power | Global Universal Switching Power Supply: 85V-265V, 50-60Hz Max. 600W |
| Dimension（L×W×H） | 362×256×255mm |
| Net Weight | 7.3kgs |
