Patient Monitor
Multi Parameter ICU Patient Monitor System 1
Multi Parameter ICU Patient Monitor System 2
Multi Parameter ICU Patient Monitor System 3
Multi Parameter ICU Patient Monitor System 1
Multi Parameter ICU Patient Monitor System 2
Multi Parameter ICU Patient Monitor System 3

Multi Parameter ICU Patient Monitor System

Payment:
T/T in advance, Western Union, L/C, MoneyGram, Cash
Lead time:
3-15 working days
MOQ:
1 set
Model:
MCS-PM09

    Multi Parameter ICU Patient Monitor System

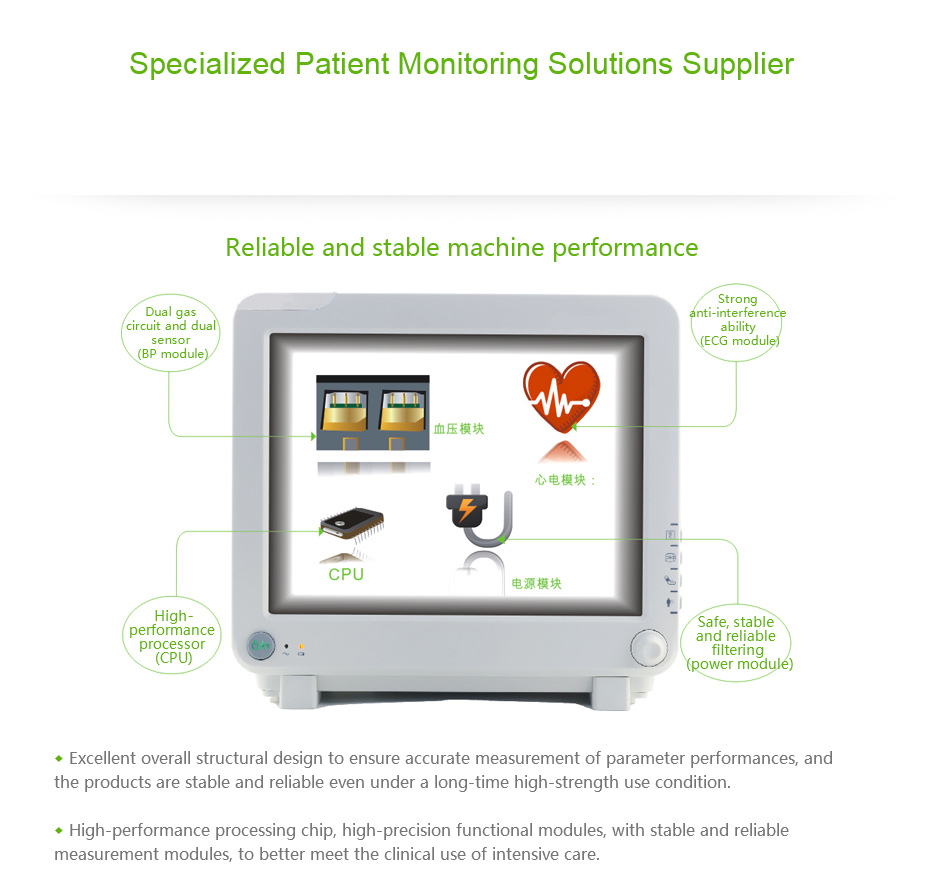

    The ICU complex application environment proposes stringent requirements for the monitors. Any minor change in the vital signs of patients may cause unintended consequences; therefore, the monitor should be able to discover and early warn various kinds of slight changes in vital signs. At the same time,according to the characteristics of diversity of critically ill patients, Our ICU patient monitor adopts a highly integrated chip technology, with a variety of high-precision parameter modules, the monitor can work continuously and stably for a long time, to ensure the accurate measurement of various parameters.

    Multi Parameter ICU Patient Monitor System 4

    Multi Parameter ICU Patient Monitor System 5

    Multi Parameter ICU Patient Monitor System 6

    Multi Parameter ICU Patient Monitor System 7

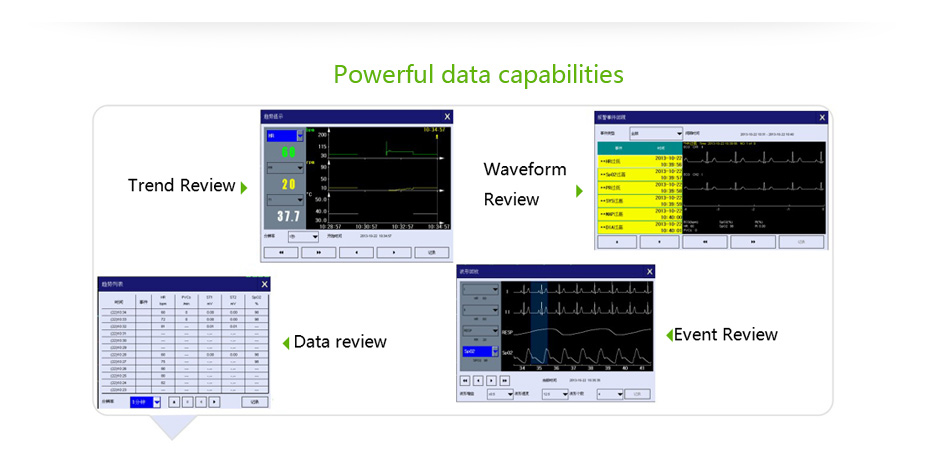

    1. Our ICU patient monitor system has a complete data storage function, parameter waveform massive storage and automatic saving of alarm events; besides, it has power failure storage function.
    2. Powerful software function, simple and efficient mode of operation, more suitable for the date analysis of a variety of critically ill patients.

    Multi Parameter ICU Patient Monitor System 8

    Multi Parameter ICU Patient Monitor System 9

    Multi Parameter ICU Patient Monitor System 10

    Multi Parameter ICU Patient Monitor System 11


    Multi-Paremeter Patient Monitor, MCS-PM09

    snap2

    Physical specifications
    Weight (Standard Configuration)
    Size 350(W)×300(H)×120(D)mm
    350(W)×440(H)×120(D)mm(with printer)

    Display

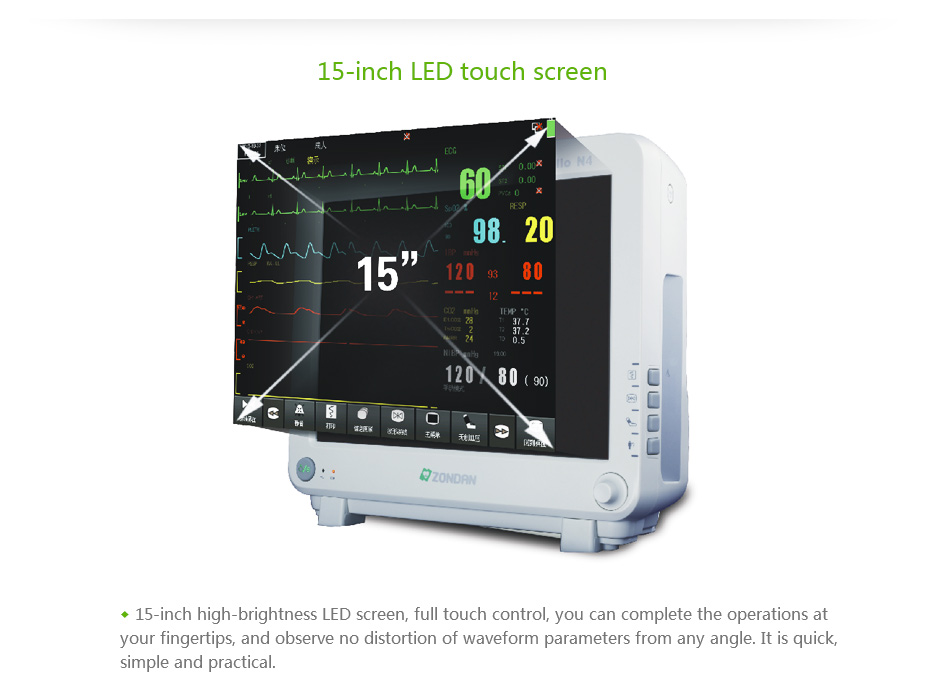

    Type and size 15" Color TFT
    Resolution 1024*768
    Number of trace 6 traces
    Sweep speed 12.5mm/s,25mm/s,50mm/s

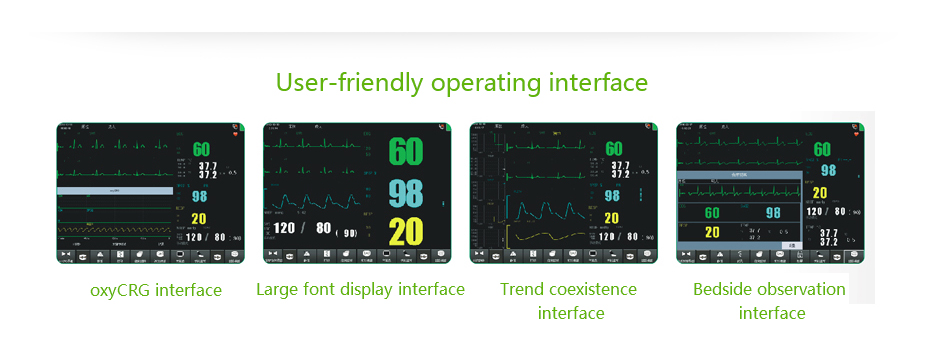

    Display modes Standard display
    Large-font display
    Trend coexist display
    OxyCRG dynamic view display
    Drug does calculation Yes
    Standby mode Yes

    Opertion Environment:

    Temperature 0ºC to 40ºC
    Relative Humidity ≤85% (noncondensing)
    Atmospheric pressure 860hPa~1060 hPa
    Storage/Transportation

    Temperature -20ºC to 60ºC
    Humidity ≤93% (noncondensing)
    Atmospheric pressure 860hPa~1060 hPa

    Electrical
    AC input voltage 100-240V
    AC input frequency 50/60Hz
    AC input power 〈70VA

    Battery
    Type Exchangeable Li-ion battery
    Voltage 14.8V
    Maximum number of batteries 2
    Battery life 2 hours with 1 battery
    Charge time (Monitor switched off) 7 Hours with 1 battery
    Charge time (Monitor switched on) 10Hours with 1 battery


    Patient Range
    Neonate, pediatric, and adult patients

    Alarms
    Categories Physical alarms and Technical alarms

    Alarm sound levels 0,1,2,3,4
    Notification Visual and Audible
    Pausing 1min, 2min, 3min
    Setting Latch, Unlatch

    Performance Specifications
    Data Storage
    Trend Graph
    Reviewable Parameters HR,ST,SpO2,PR,NIBP,RR,TEMP
    Resolution 1s, 5s, 5min, 10min
    Trend Data 1 hour short trend @ 1s resolution
    256 hours long trend @ 1min resolution

    Trend Table
    Reviewable Parameters HR,ST,SpO2,PR,NIBP,RR,T1,T2,TD
    Resolution 1,5,10,30,60min
    Trend Data 256 Hours trend date for all parameters
    NIBP measurement 400 Groups

    Reviewable Parameters
    ECG,SpO2,NIBP,RESP,TEMP,HR_H>180,HR_
    SpO2<90%,RR_L<10,RR_H>40,
    TEMP_H>40ºC,TEMP_L<34ºC

    Priority High, Medium, and Low

    snap1
