Optometry Equipment Vision Tester LED Illumination Manual Phoropter

Optometry Equipment Vision Tester LED Illumination Manual Phoropter

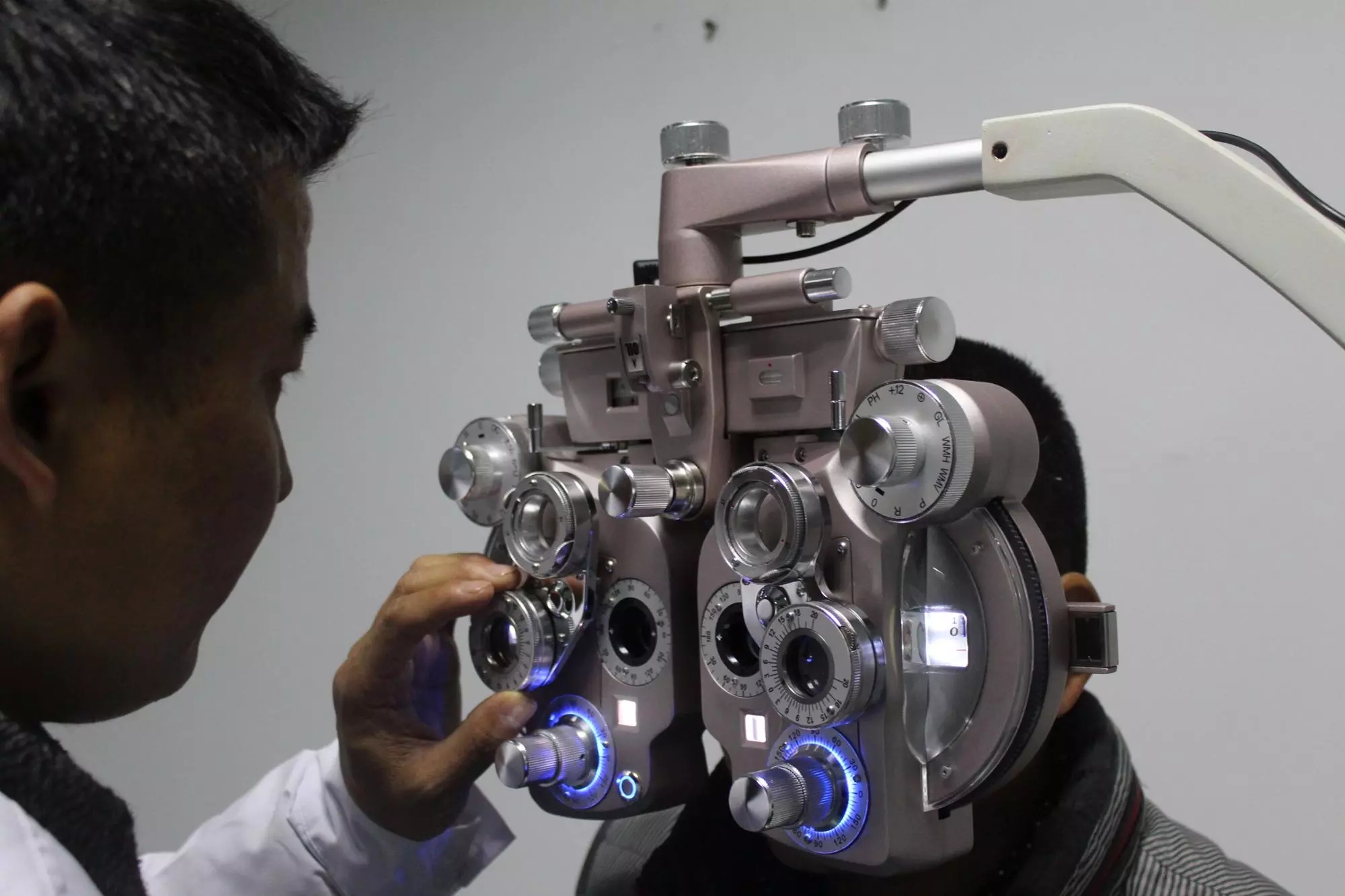

Manul refractor Phoropter inspection instrument is commonly used in ophthalmology. It is mainly used for refraction. As a basic tool of ophthalmology and visual inspection workers, it plays an irreplaceable role.
This device is applicable to ophthalmology department of hospital and spectacle stores for precision measurement of visual functions such as myopia, hyperopia,astigmatism, eyesight balance, heterophoria, stereoscopic vision and eyesight amalgamation.

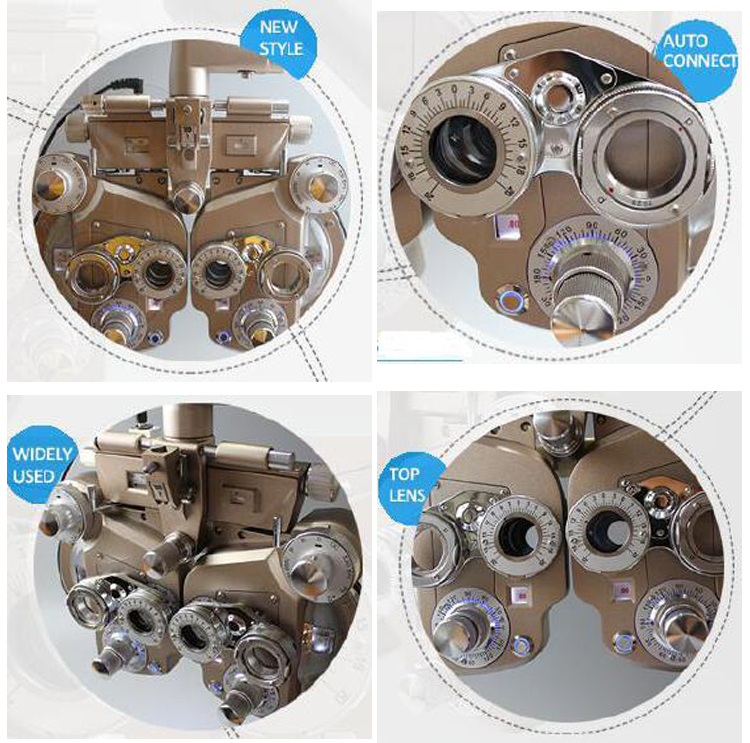

What is the feature of our manual phoropter?
Latest stysle: newest style, patented product.
LED design: bottom lens with LED design.
High quality lens: hign grade quality anti-function optical lens.
Visual inspection: able to check all-side visual function, accurate and comfortable measurement.
Auto connect: automatically connect between cross-cylinder lens and lens coordinates

What is the specification of our optical phoropter?
Sphere Power: Range:+16.75 to -19.00 diopters; Step: 0.25 diopters
Cylinder Power: Concave(-) Range: 0.00 to -6.00 diopters;
Convex(+) Range: 0.00 to +6.00 diopters (optional) (0.00 to -8.00 diopters with additional lens of -2.00 diopters); Step: 0.25 diopters
Cylinder axis: 0 to 180°, 5°steps
Cross Cylinder:±25 diopters
Rotary Prisms: 0 to 20, 1 steps
P.D. adjustment: 50-75mm, 1mm as a step
Standard Accessory lenses: Two 0.12D and -2.00 cylinder lenses, two plano lenses for sealing front openin
Standard Accessories: 1 near point card with holder and reading rod, dust cover, face shield, accessory case for lenses
Net Weight: Approx 4.5 kg
Certificate: ISO,CE
Dimensions: 31.8 x 9.6 x 29.3(cm)

More pictures of our phoropter
