Ophthalmic Slit Lamp Two Magnification Slit Lamp Microscope

Payment:
T/T in advance, Western Union, L/C, MoneyGram, Cash
Lead time:
3-15 working days
MOQ:
1 set
Model:
MCE-66

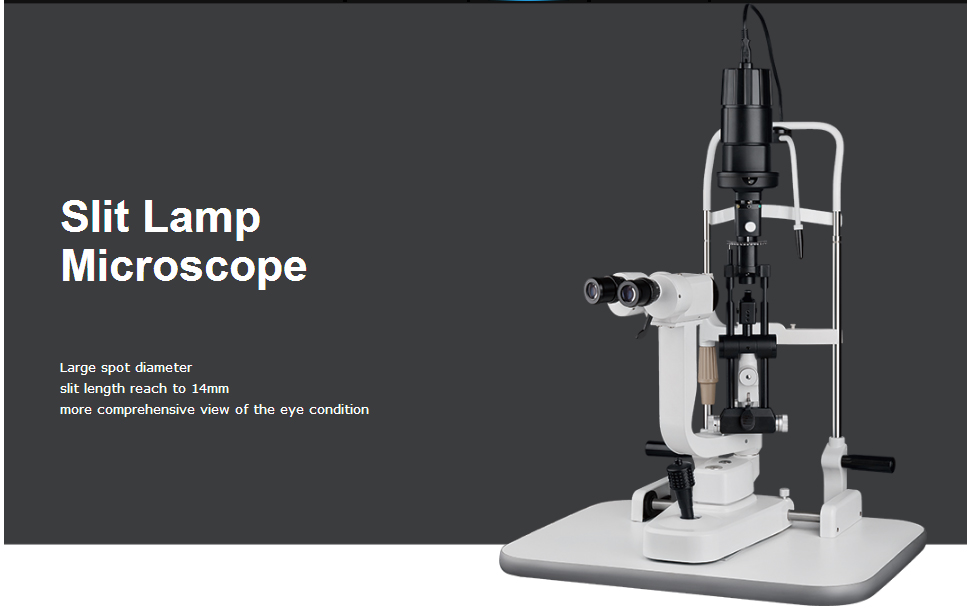

    Ophthalmic Slit Lamp Two Magnification Slit Lamp MicroscopeOphthalmic Slit Lamp Two Magnification Slit Lamp Microscope 6

    What is the features of our Slit Lamp?

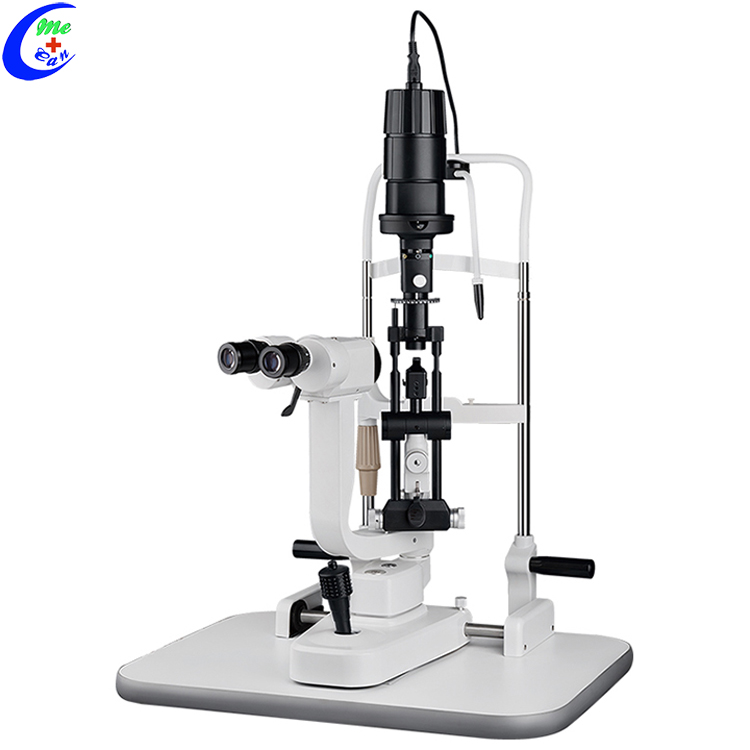

    2 magnifications with 10x ,16x field of view ,can get the distinct image ,also , with new illumination system and the bigger light spot diameter,slit width reaches 14 mm,can better observe the eye situationOphthalmic Slit Lamp Two Magnification Slit Lamp Microscope 7

    What is the technical parameters of our Slit Lamp Microscope?

    Microscope Microscope Type Converging stereoscope microscope
    Magnification selection two steps magnifications
    Eyepiece 10X
    Magnification Ratio(Field of view) 10X(18mm),16X(14.5mm)
    Pupillary Adjustment 50mm ~ 82mm
    Diopter Adjustment +- 5D
    Base Side Shift 110mm
    Depth shift 90mm
    Height shift 30mm
    Chin rest Height Shift 80mm
    Fixation Target Red LED
    Illumination system Slit Width 0 ~ 14mm Continuous ( at 14mm , slit becomes a circle )
    Slit Height 0 ~ 14mm Continuous
    Slit Angle 0°  ~ 180°  adjustable
    Slit Inclination 0°  ~  23 °
    Diameter of Light Spot Ø14mm, Ø10mm , Ø5mm, Ø3mm, Ø2mm, Ø1mm, Ø0.2mm and 1 ~ 14mm Continuous
    Filter Heat Absorption , Grey ,Red-Free , Cobalt Blue
    Illumination Bulb 12v  50w  halogen lamp
    Power Input Voltage 110V / 220V AC
    Frequency 50 / 60 HZ
    Power Consumption 68 VA
    Weight and Size Gross Weight 18kg
    Dimension 690mm(L) × 440mm(W) × 420mm (H)
