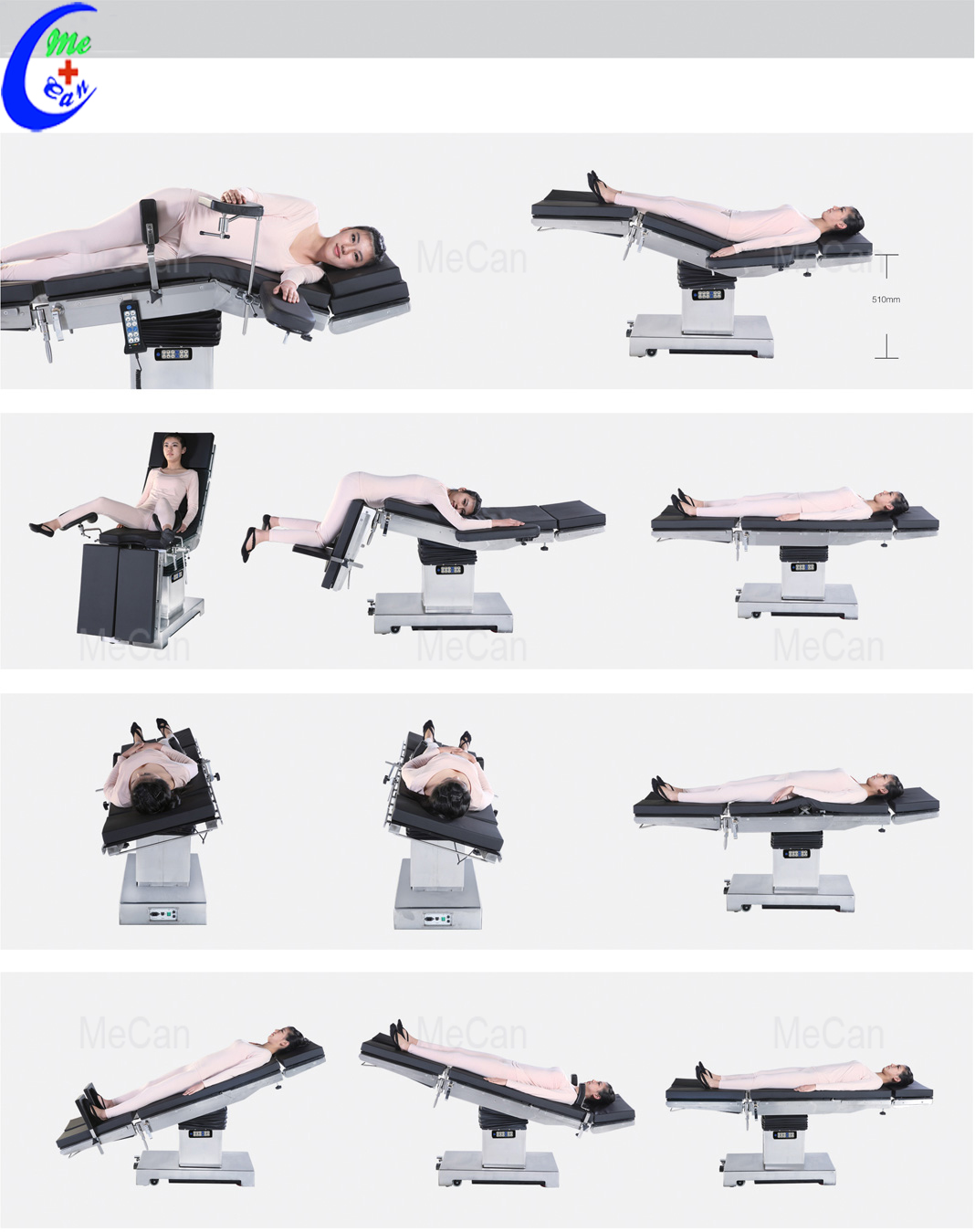

Medical Electric Hydraulic Surgical Operating Bed

Medical Electric Hydraulic Surgical Operating Bed

Application

Electric operating table features with integrated multi-function can fulfill the needs of various operations.

Features

1.The bed surface adopts quality carbon plastic platethe,the table can slide which can fulfill the needs of C type arm whole body examination.

2.Panel control and remote control, with battery can fit for 50 sets operaing

3.The mattress is wrapped with imported artificial leather. High-density memory sponge is formed in one piece, with no seam.

4.Imported LINAK motor without noise and with long life-span.

5.The base seat and upright column covering are made of high quality 304 stainless steel which can be easily cleaned and sterilized.

6.Foot treadle brake device which is easy for moving operating table.

7.The leg part use spring gas control ,separate leg part.

8.One press to “∧”or “∨”.

9.It has the function of auto-restoration.

Standard Accessories

A pair of shoulder and waist support frame, a pair of arm resting frame, a pair of leg support frame, a screen frame.

Technical specification

Length:2000±50mm

Width:480±20mm

min-max height:(750-950)±50mm

forward ≥30°   backward ≥25°

leftward≥15°   rightward≥15°

head board fold upward:≥45°   fold downward:≥90°

leg board fold downward:≥90°  fold outward:≥90°

back board fold upward:≥50°

waist board lifting: ≥100mm

horizontal and longitudinal movement:≥400mm

mains voltage:AC 220V±10% 50Hz

input power:≤150VA

Note

1.Imported Denmark Linak gear engine

2.Do X-ray&C-arm

3.DIMENSION (CM):160*80*94

4.PACKAGE: wooden

5.G.W. (KG): 340
