Model:
MCL-PCRA

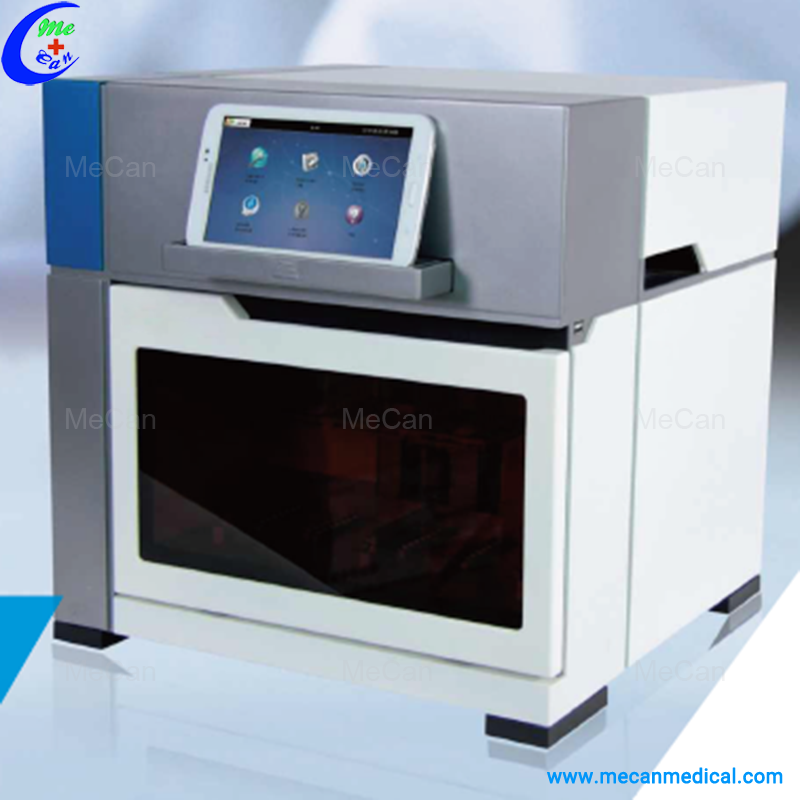

    Nucleic Acid Extractor

    Model:MCL-PCRA

    Extractor

    Features:

    -Easy Operation - Unique remote control pad saving time and improve your work efficiency
    -Flexible solutions - Pre-loaded protocols selection for up to 15, 32 or 48 samples per run
    -Fast startup and immediate results - With special rapid reagents, the extraction can be done within 10 minutes.
    -Reliable result you can depend on - High-quality nucleic acids ready to use in sensitive downstream applications.

    Specification:

    ITEMS

    PARAMETER

    Processing Volume

    30-1500μl, 30-1000ul

    Capacity

    15,32,48 samples per run customized

    Collection efficiency of the magnetic particles

    ≥95%

    Heating Temperature (Not suitable for 48 samples per run

    For cell lysis

    Room temperature to 120°C

    For nucleic acid elution

    Room temperature to 120°C

    Processing-mode

    Multi-mode, multi-speed available

    Reagents

    Multi-mode, multi-speed available

    Operation Interface

    Multi-mode, multi-speed available

    Storage Capacity

    15 preinstalled protocols in main unit, unlimited in pad

    Protocol Management

    Create, edit, delete, protocol mode

    Pollution control

    Create, edit, delete, protocol mode

    Computer Interface

    USB

    Network Communication

    Ethernet(optional)

    Dimensions

    440mm (W) X435mm (L) X445mm (H)

    Weight

    31.5kg

    Power Requirements

    AC 110±10%/230V±10%, 50Hz/60H±1Hz, 600W

    Ambient Temperatures

    10-40°C

    Relative Humidity

    <80%
