Notebook B/W Ultrasound Machine ,LED Laptop Ultrasound Scanner

Model

Notebook LED Digital Ultrasound Scanner

Display  mode

B;B/B;4B;B +M;M

Display size

10.4inch LED display

Image multiplying factor

3.5MHz/R60 convex array probe: 0.8;×1.0,×1.2,×1.5, ×1.8, ×2.0

( 6 modes)×0.8;×1.0(display penetration depth)

E-zoom:

Magnify 2 times of real time image

Dynamic range

0~120db adjustable

Focus position

Dynamic electron focusing

Image processing

8γ corrections, Point correlation, Frame correlation, Line correlation, Digital filting,

Digital edge enhancement and pseudo color processing

According to the user’s pattern style preference, the parameter will be set up   automatically and saved ,Boot default this parameter. This default of parameter can also be modified in the menu.

Gray scale

256 levels

Frequency conversion

2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0Mhz

5 periods of frequency conversion

Frequency range applies

5.5MHz/6.0MHz/6.5MHz/7.0MHz/7.5MHz can match high frequency probe

Measuring function

Distance, circumference/area(method of ellipse,method of loci) ,volume,heart rate, gestational weeks, expected date of confinement and fetus weight,etc.

Annotation function:

Hospital name;patient’s name, age and gender; Body marks(with probe’s position);Full-screen character annotation;Real-time clock display

Puncture guide

3.5MHz convex array probe can display punture guide in B mode

Gain control

8segments TGC and overall gain can be adjusted respectively

Image polarity

Left and right flip; up and down flip

Capacity cine loop

Real time display 256 consecutive images which are moemorized successively

Image playback

Series playback or check one by one

Permanent storage

128 images

Output interface

USB port

Standard configuration

Ultrasound machine with 3.5Mhz convex array probe and power adapter

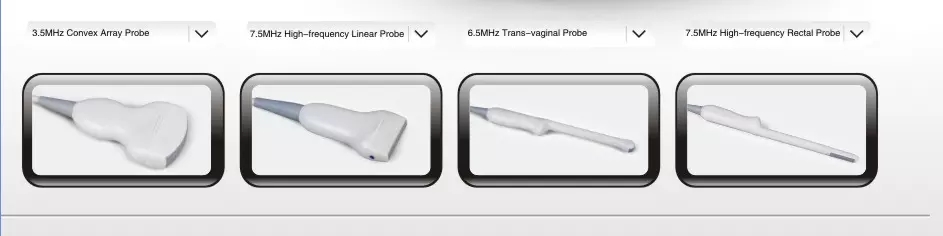

Optional Probes

3.5MHz Convex Array Probe

7.5MHz Convex Array Probe

6.5MHz Trans-vaginal Probe

7.5MHz High-frequency Rectal Probe
