Multiple Magnetic Stirrer with Heating Plate

Payment:
T/T in advance, Western Union, L/C, MoneyGram, Cash
Lead time:
3-15 working days
MOQ:
1 SET
Model:
MCL-D21

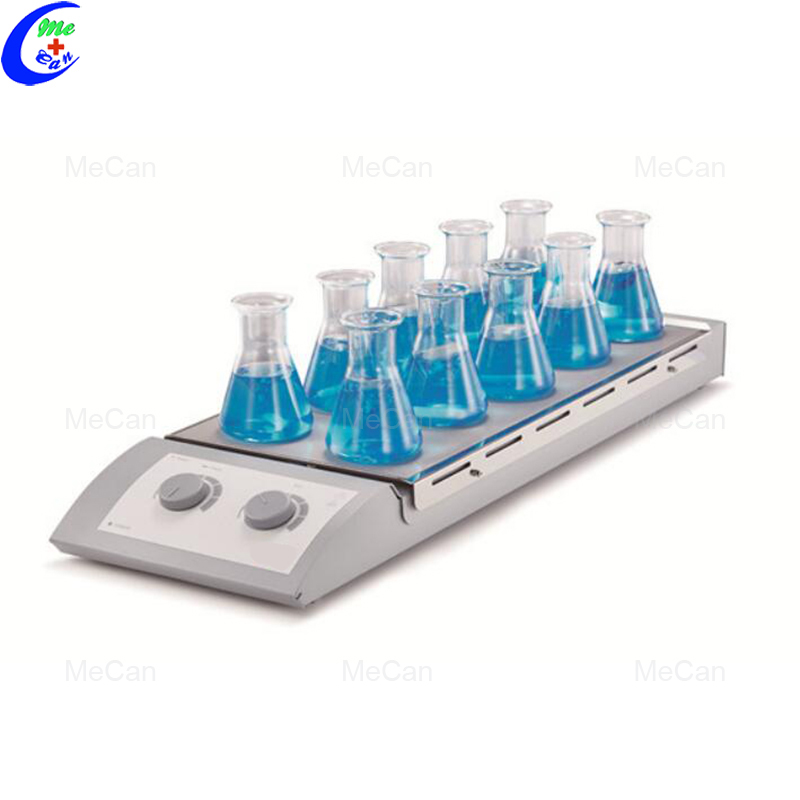

    Multiple Magnetic Stirrer with Heating Plate

    Model:MCL-D21

    Multiple Magnetic Stirrer with Heating Plate 6Features:

    •   Maintenance-free brushless DC motor
    •   Max speed 1100rpm
    •   Max.temperature 120°C
    •   Stainless steel work plate, covered with silicone cushion, provides the excellent performance of heating uniformity and skid resistance

    Specification:

    Specifications

    MCL-21

    Work plate Dimension

    180x450mm

    Work plate material

    Stainless  steel with silicone

    Motor type

    Brushless DC motor

    Motor rating input

    12W

    Motor rating output

    4W

    Power

    490W

    Heating output

    470W

    Voltage

    100-120/200-240V  50/60Hz

    Stirring positions

    10

    Max. stirring quantity[H2O]

    0.4Lx10

    Max. magnetic bar[length]

    40mm

    Speed range

    0-1100rpm

    Speed display

    scale

    Temperature display

    scale

    Heating temperature range

    Room temp.-120°C

    Over  heat Protection

    140°C

    Temperature  display accuracy

    IP42

    Dimension [W x D x H]

    182×622×65mm

    Weight

    3.2kg

    Permissible ambient temperature and humidity

    5-40℃ 80%RH
