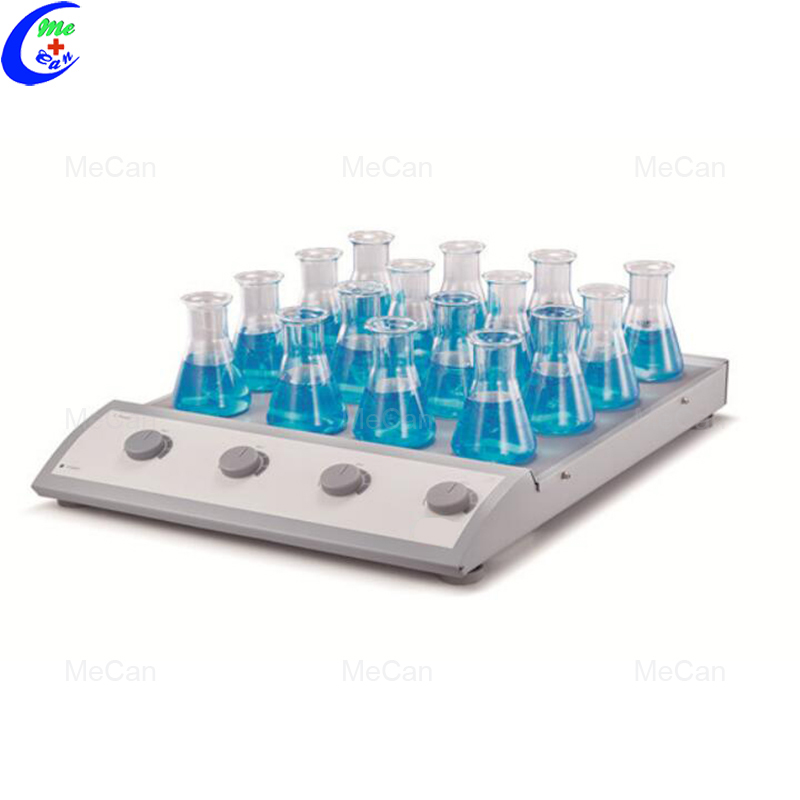

Multi 16-Position Magnetic Stirrer
Multi 16-Position Magnetic Stirrer
Model:MCL-D20
Features:
• A space saving unit with 16 stirring positions and 4 independent speed control channels
• A wide range of speed from 0 to 1100rpm
• High magnetic adhesion prevents stirrer spin bar out of control
• Stainless steel work plate, covered with silicone cushion, provides excellent performance of skid resistance
Specification:
Specifications | MCL-D20 |
Work plate Dimension | 365×345mm |
Work plate material | Stainless steel with silicone coating |
Motor type | DC motor |
Motor input power | 12W |
Motor output power | 4W |
Power | 20W |
Voltage | 100-120/200-240V,50/60Hz |
Stirring positions | 16(4 channel) |
Max. stirring quantity[H2O] | 0.4LX16 |
Max. magnetic bar[length] | 40mm |
Speed range | 0-1100rpm |
Speed display | Scale |
Protection class | IP21 |
Dimension[WxDxH] | 500×380×65mm |
Weight | 6kg |
Permissible ambient temperature and humidity | 5-40°C, 80%RH |
