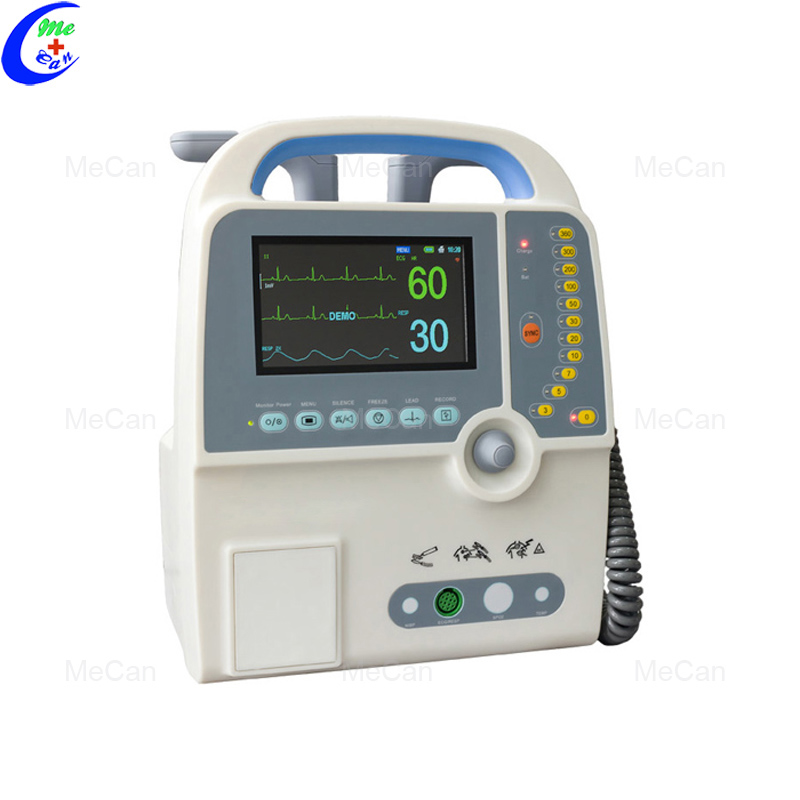

Portable Monophasic Defibrillator Monitor

Portable Monophasic Defibrillator Monitor

Standard parameter & configuration: ECG, RESP, DEFIBRILLATOR
Physical characteristics
Main unit: Portable
Dimensions: L320xW205xH410 mm
Weight: 9.5kg
Technical specifications
DEFIBRILLATOR.
(1)Defibrillator typeManual, Synchronized, Asynchronized,
(2)Out put waveformMonophasic technology
(3)Energy accuracy∠+1%
(4)  Energy selection0, 3, 5, 7, 10, 20,30, 50,100,200,300,360 joule(nominal at a resistance of 50)
(5)Charging time    Maximum 8 seconds to 360 Joules
(6)  Standard Adult/Pediatric Paddles   Reusable external adult paddles(pediatric paddles integrated)
Power requirements.
(a)AC Power supply110V, 60 Hz /220V,50 Hz
(b) Vehicle Voltage   DC 12V
Internal Battery Backup
(1)Battery type    Rechargeable lead-acid battery
(2)Charging timeTime-Minimum of 4 hours for full charging
(3)Battery charging      During AC Power Supply operation of the device.
(4) Charging /Low Battery Indication      Red LED
(5) Battery Capacity        100% of the battery will provide 120 mins of monitoring; and 30 discharges at 360 joules.

Display
LED Dimensions7’diagonal {155mm*88mm}
TypeHigh resolution true-color graphic LED
Resolution480X234　　　　　　　　　　
ECG
ECG lead: Ⅰ, Ⅱ, Ⅲ, AVR, AVL, AVF, V1～V6, GND S-T segment analysis: -2.0～2.0mv Arrhythmia analysis: yes Protection: With stand 4000vAc/50Hz voltage in isolation and work against electrosurgical knife and defibrillation
Respiration
Measurement method: Thoracic impedance
Standard parameter & configuration
 ECG/ RESP/DEFIBRILLATOR
Optional parameter
1. Recorder
2. Change be change to lithium battery.
Packing:
1. Each one is packed
2. Individually in a carton
3. Package size:56×46×47cm
4. G.W.: 15.0Kg
5. N.W.: 9.5Kg
