Mobile X-Ray
100MA Mobile X Ray Machine For Hospital, Medical Mobile X-Ray Machine 1
100MA Mobile X Ray Machine For Hospital, Medical Mobile X-Ray Machine 2
100MA Mobile X Ray Machine For Hospital, Medical Mobile X-Ray Machine 3
100MA Mobile X Ray Machine For Hospital, Medical Mobile X-Ray Machine 4
100MA Mobile X Ray Machine For Hospital, Medical Mobile X-Ray Machine 5
100MA Mobile X Ray Machine For Hospital, Medical Mobile X-Ray Machine 1
100MA Mobile X Ray Machine For Hospital, Medical Mobile X-Ray Machine 2
100MA Mobile X Ray Machine For Hospital, Medical Mobile X-Ray Machine 3
100MA Mobile X Ray Machine For Hospital, Medical Mobile X-Ray Machine 4
100MA Mobile X Ray Machine For Hospital, Medical Mobile X-Ray Machine 5

100MA Mobile X Ray Machine For Hospital, Medical Mobile X-Ray Machine

Payment:
T/T in advance, Western Union, L/C, MoneyGram, Cash
Lead time:
3-15 working days
MOQ:
1 set
Model:
MCX-016

    100MA Mobile X Ray Machine For Hospital, Medical Mobile X-Ray Machine


    USAGE

    Take x-ray photography of the head,extremities, chest cavity and other parts of human,can be used in the ward or in operation room.

    Main features

    1. Single focus, full-wave rectifier, combined X-ray generator

    2. SCM control (easy to maintain and repair)

    3. High visual and operational console with LCD monitor

    4. Prestore 8 kinds of photography parameters and select, modify, store the parameters under the condition of choice

    5. Power voltage (V), photograph kilovolt (KV) infinitely variable control

    6. Premier high voltage with high power SCR zero control circuit

    7. Function of load chains, exposure time control, auto alarm, preheat filament, subassemblies’  temperature control,

    8. Cantilever structure makes the small volume and easily moving

    Specification

    1.Power supply

    Voltage: 180-240 V

    Frequency: 50HZ

    Internal resistivity <1.0Ω

    Current 35A instant

    Rating ≥7k VA

    2.Photography

    Voltage: 50-100 kV

    current 16ma. 32ma 63ma 100ma

    time 0.08s ~6.3s

    X-ray tube focus 4.3mm X4.3mm

    3.Maximum remote control distance: 7m

    4.Maximum height of focal spot from floor>1880 mm

    Minimum height of focal spot from floor <520 mm

    5.Columns turning angle:±45

    6.Collimator: maximum film size at 650mm focal distance: 350 mm X 350 mm

    7.The net weight of the unit: 150kg   Gross Weight: 240kg

    8.Shipping volume: 150cm X 100cm X 150cm

    Focus of

    X-ray tube

    Photograph Current

     (mA)

    Max photograph voltage

    (kvp)

    Max allowable

    exposure time

    Big focus

    16

    90

    6.3

    32

    90

    6.3

    63

    85

    4.2

    100

    80

    3.0

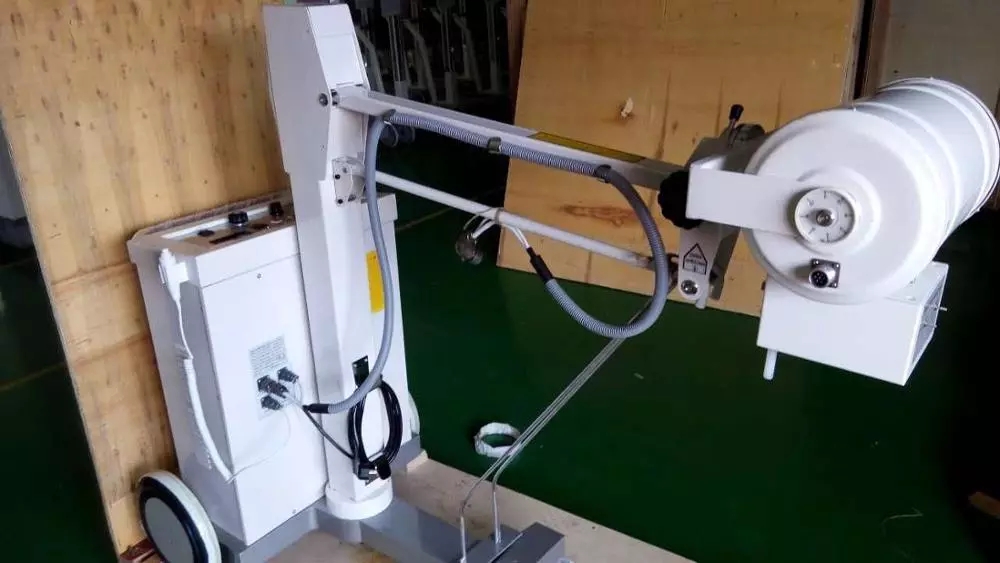

    100MA Mobile X Ray Machine For Hospital, Medical Mobile X-Ray Machine 6

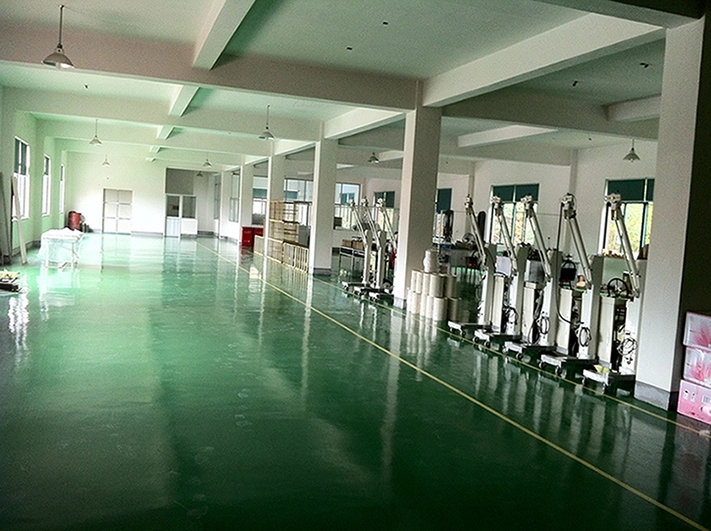

     100MA Mobile X Ray Machine For Hospital, Medical Mobile X-Ray Machine 7
