Elisa Reader
Semi Automatic Elisa Test Machine Elisa Plate Reader Machine 1
Semi Automatic Elisa Test Machine Elisa Plate Reader Machine 2
Semi Automatic Elisa Test Machine Elisa Plate Reader Machine 1
Semi Automatic Elisa Test Machine Elisa Plate Reader Machine 2

Semi Automatic Elisa Test Machine Elisa Plate Reader Machine

Payment:
T/T in advance,Western Union,L/C,MoneyGram,Cash
Lead time:
3-15 working days
MOQ:
1 set
Model:
MCL-ER03

    Semi Automatic Elisa Test Machine Elisa Plate Reader Machine


    Main Features

    1. Semi automatic

    2. Easy Windows operation system with touch screen or mouse, large LCD display

    3. 8-channel optical fiber system enables 5 secs’ reading for the whole plate

    4. Bichromatic measurement, calculation modes including ABS, Cut-off, Curve, Linear,

    5. Log and Exponential regression

    6. Random positive and negative control setting

    7. Multi-assay enables up to 12 different assays on one plate

    8. Large memory, up to 100 test protocols and 10,000 can be stored

    9. Powerful QC function: Grubs, Westguard Multi-rule, Levey jennings plot (optional)

    10. Plate shaking

    11. Auto power-on self-check

    12. Additional lamp saving

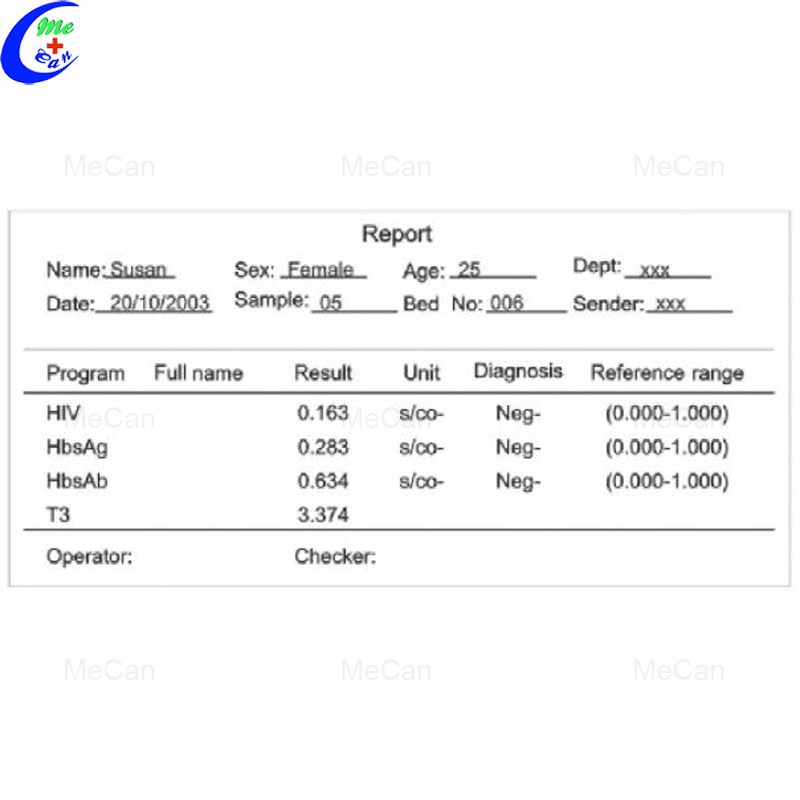

    13. Multiform result output including patient comprehensive report

    14. Ability to communicate with PC for data management(optional)

    15. Easy maintenance

    Technical Specification

    Absorbance Range: 0 - 4.000Abs

    Resolution: 0.001Abs(displayed),0.0001Abs(calculated)

    Accuracy: ±0.1% or ±0.005Abs

    Light Source: Halogen lamp, 8V/50W

    Wavelength Accuracy: ± 1nm

    Band width: 8nm

    Wavelengths: 405, 450, 492, 630nm, 4 more filters optional

    Type of Micro-plate: Standard with 96-well or other kind of micro-plate and strip

    Calculation Method: ABS, %ABS, Cut-Off, Single Standard, Curve,  Multi-Percent, Percent Log, Linear, Exponential, Power, 4PL Regression

    Reading Speed: 5 seconds for 96 well plate (single wavelength)

    Shaking Plate: Shaking time and speed adjustable

    Memory: More than 100 programs, up to 100,000 test results

    Printer: All printers compatible with Windows

    Interface: RS-232, PSTN (optional)

    Display: 6” LCD

    Input: Touch panel or mouse

    Output: External printer (optional)

    Power Supply: AC 110V - 220V ± 10%, 50-60Hz

    Net weight: 8Kg

    Dimension L×W×H(mm) :460×330×200


    elisa machine

    elisa plate reader

    elisa analyzer

    elisa test machine


    Absorbance Range 0 - 4.000Abs
    Resolution 0.001Abs(displayed),0.0001Abs(calculated)
    Accuracy ±0.1% or ±0.005Abs
    Light Source Halogen lamp, 8V/50W
    Wavelength Accuracy ± 1nm
    Band width 8nm
    Wavelengths 405, 450, 492, 630nm, 4 more filters optional
    Type of Micro-plate Standard with 96-well or other kind of micro-plate and strip
    Calculation Method ABS, %ABS, Cut-Off, Single Standard, Curve, Multi-Percent, Percent Log, Linear, Exponential, Power, 4PL Regression
    Reading Speed 5 seconds for 96 well plate (single wavelength)
    Shaking Plate Shaking time and speed adjustable
    Memory More than 100 programs, up to 100,000 test results
    Printer All printers compatible with Windows
    Interface RS-232, PSTN (optional)
    Display 6 inch LCD
    Input Touch panel or mouse
    Output External printer (optional)
    Power Supply AC 110V - 220V ± 10%, 50-60Hz
    Net weight 8Kg
    Dimension L×W×H(mm) 460×330×200
