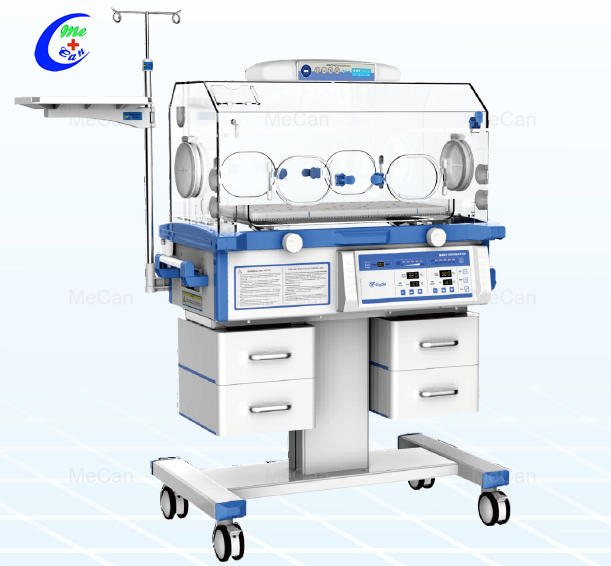

Medical Infant Incubator, Hospital Newborn Baby Incubator
Medical Infant Incubator, Hospital Newborn Baby Incubator
What is the function features of our baby incubator? Power supply AC110/220V 60/50Hz Power input 650VA Environment temperature 20℃~30℃ Operating condition Environment relative humidity 30%~75% Environment air velocity of flow <0.3m/s Air temperature control range 25℃~37℃ 37.1℃~38℃ Skin temperature control range 32℃~37℃ 37.1℃~38℃ Skin temperature sensor accuracy ±0.3℃ Temperature fluctuation ±0.5℃ Uniformity of mattress temperature ≤0.8℃ Warm-up time(from25℃) <30min Internal noise level <50dB(A) Infant bed tilt angle ±10° Mattress size 65cm(L)*37cm(W) Trough capacity 1200mL Air filter 0.5μm
Microprocessor based servo controlled temperature system
Control modes: Air mode and baby skin mode
Humidity is adjustable continuously
Set temperature, air temperature, baby skin temperature, timer and heating power
are displayed separately by LED
Integral timer to record therapy time
Self - testing function, various failure alarms by audible and visual
Alarm function:
Power failure,Over temperature,Temperature deviation,Fan failure,Temperature sensor failure
>37° temperature set function
Triple protection for over temperature with separate cut off device, more safety system
The inclination of infant bed is adjustable
Single wall hood, 4 operating windows and 2 iris ports,5 infusion seals
Independent locking device for front door
RS232 connector, Oxygen inlet, 1 tray
What is the specification of our infant incubator
What is the Standard configuration
Main body(including the Transparent hood,Control system,Infant bed,Water trough),I.V.pole,Mattress,
Drawers,Castors,Tray,Oxygen inlet

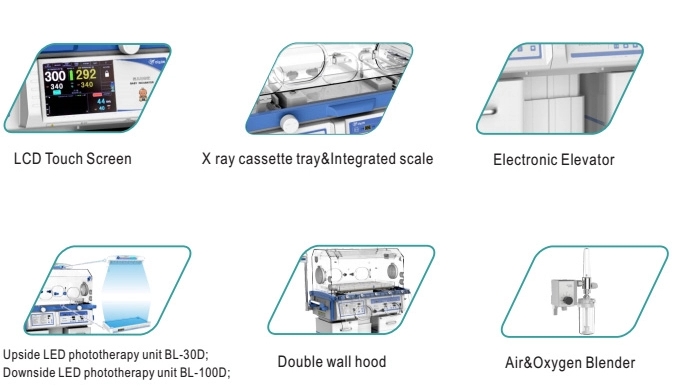

What is the Optional functions
