Medical Human Anatomy Skeleton Model Nursing Training Adult CPR Manikin

Medical Human Anatomy Skeleton Model Nursing Training Adult CPR Manikin

Model:   MCT-KE-003

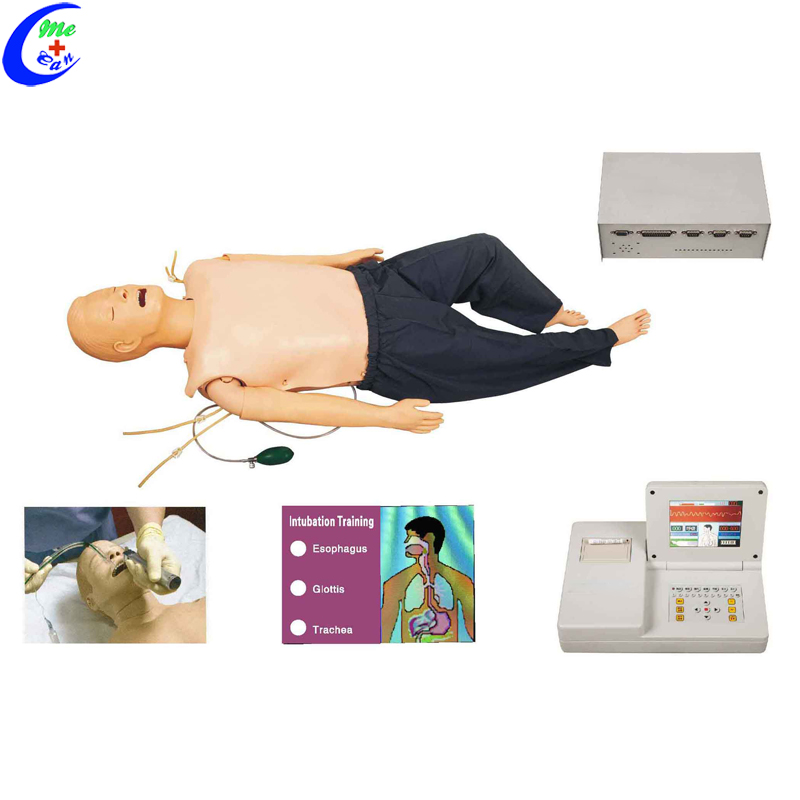

What is detail of our ACLS cpr manikin?

Complying with AHA (American Heart Association) 2010 guideline for CPR, MCT-KE-003 provides ACLS (Advanced Cardiac Life Support) comprehensive training in first aid skills. The system consists of full-body manikin, AED machine, blood pressure measurement and data display of CPR. It provides a simple and practical ACLS training tool.

Features
manikin head
1.Airway management: standard nasal and oral intubation, tracheotomy intubation, supporting to head tilt and Jawthrust, audible feedback if pressure exerted on the teeth during intubation.
2.CPR: instantaneous displaying graphics of data, statistic report, sound directions related to CPR, result printing.
3.Simulating of a patient: the changes of pupils and carotid; the sounds of respiratory, moan, cough and vomit; more than 17 kinds of rhythm (access to 3/4 lead ECG monitoring); unilateral or bilateral bronchial obstruction; laryngospasm simulation.
4.Physical therapy: ECG monitoring via defibrillation connectors, the maximal energy of defibrillation is 360J; the frequency of external pacemaker is set to 60times/min, and the current threshold is 40mA.
5.Intravenous infusion and blood pressure measure training.
6.AED: automatically external defibrillation machine (only for training
use), providing electrode pad and electrode button.
7.Manikin’s bare joint can rotate left and right, basically the same with the real human body size, and do foot care operations.
8.Manikin has interchangeable male and female external genitalia, can do catheterization operation training, bladder simulator is equipped inside, simulated urine can be injected into; if the operation is successful the simulated urine would flow out.
Standard components

Item	Components	Quantity
1	Full body manikin	1
2	ACLS monitor	1
3	ACLS converter	1
4	Aluminum & plastic box	1
5	CPR operation pad	1
6	Exchangeable lung bag	5
7	CPR face shield sheet	50pcs/box
8	Temperature sensing print paper	2 roll
9	MCT/S7 BP Training Arm	1
10	Airway intubation parts	1
11	Guide manual	1

Model:MCT-KE-004

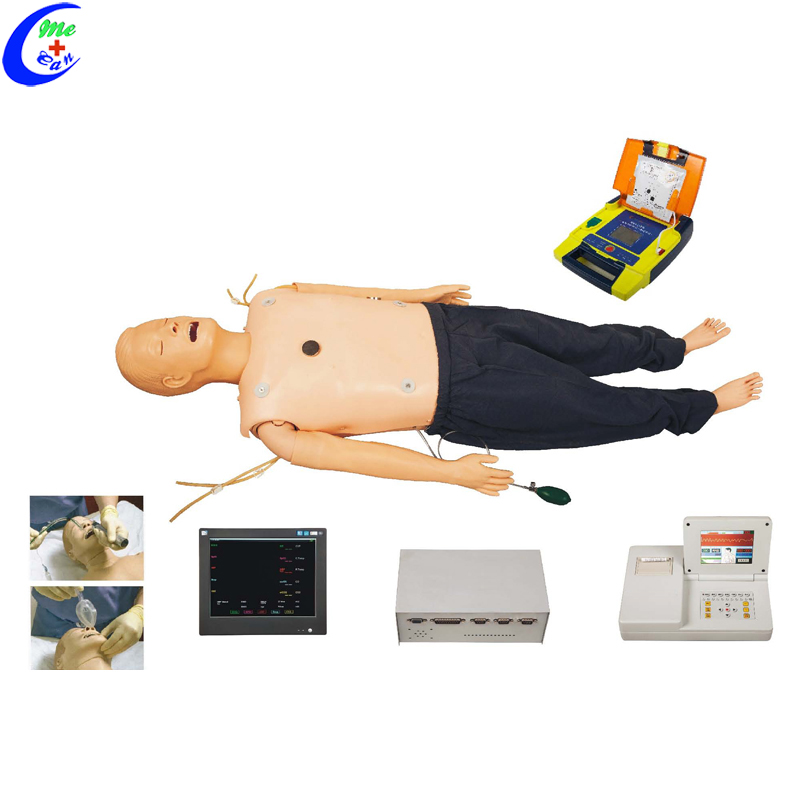

What is the detail of our ALS cpr training manikin?

Complying with AHA (American Heart Association) 2010 guideline for CPR,MCT-KE-004 provides ALS (Advanced Life Support) comprehensive training in first aid skills. The system consists of full-body manikin and a LCD with big screen. It provides a simple and practical ALS training tool.

Features
1. Vital signs simulation: pupil change and carotid arterial pulse.
2. Arm injection training practice.
3. Airway management: standard nasal and oral intubation, tracheotomy intubation, supporting to head tilt and Jaw thrust, audible feedback if pressure exerted on the teeth during intubation.
4. CPR: instantaneous displaying graphics of data, statistic report, and sound directions related to CPR, voice prompts of correct and wrong operation, data statistic, result printing, available of training and exam mode.
5. AED: automatically external defibrillation machine (only for training use), providing electrode pad and electrode button.
6. Physical therapy: ECG monitoring via defibrillation connectors, the maximal energy of defibrillation is 360J; the frequency of external pacemaker is set to 60 times/min, and the current threshold is 40mA.
7. Manikin’s bare joint can rotate left and right, basically the same with the real human body size, and do foot care operations.
8. Manikin has interchangeable male and female external genitalia, can do catheterization operation training, bladder simulator is equipped inside, simulated urine can be injected into; if the operation is successful the simulated urine would flow out.
Standard components

Item	Components	Quantity
1	Full body manikin	1
2	ALS monitor	1
3	ALS converter	1
4	Aluminum & plastic box	1
5	CPR operation pad	1
6	Exchangeable lung bag	5
7	CPR face shield sheet	50pcs/box
8	Temperature sensing print paper	2 roll
9	Airway intubation parts	1
10	Guide manual	1

Model:MCT-KE-005

What is the detail of our ALS adult cpr manikin?
Complying with AHA (American Heart Association) 2010 guideline for CPR, MCT-KE-005 provides ALS (Advanced Life Support) comprehensive training in first aid skills. The system consists of full-body manikin and a LCD with big screen. It provides a simple and practical ALS training tool.
human body anatomy model
Features
1. Vital signs simulation: pupil change and carotid arterial pulse.
2. Arm injection training practice.
3. Airway management: standard nasal and oral intubation, tracheotomy intubation, supporting to head tilt and Jaw thrust, audible feedback if pressure exerted on the teeth during intubation.
4. CPR: instantaneous displaying graphics of data, statistic report, and sound directions related to CPR, voice prompts of correct and wrong operation, data statistic, result printing, available of training and exam mode.
5. Manikin’s bare joint can rotate left and right, basically the same with the real human body size, and do foot care operations.
6. Manikin has interchangeable male and female external genitalia, can do catheterization operation training, bladder simulator is equipped inside, simulated urine can be injected into; if the operation is successful the simulated urine would flow out.
Standard components

Item	Components	Quantity
1	Full body manikin	1
2	ALS monitor	1
3	ALS converter	1
4	Aluminum & plastic box	1
5	CPR operation pad	1
6	Exchangeable lung bag	5
7	CPR face shield sheet	50pcs/box
8	Temperature sensing print paper	2 roll
9	Airway intubation parts	1
10	Guide manual	1
