    Manual Lift LCD Digital Rotary Evaporator Apparatus

    Model:MCL-D24

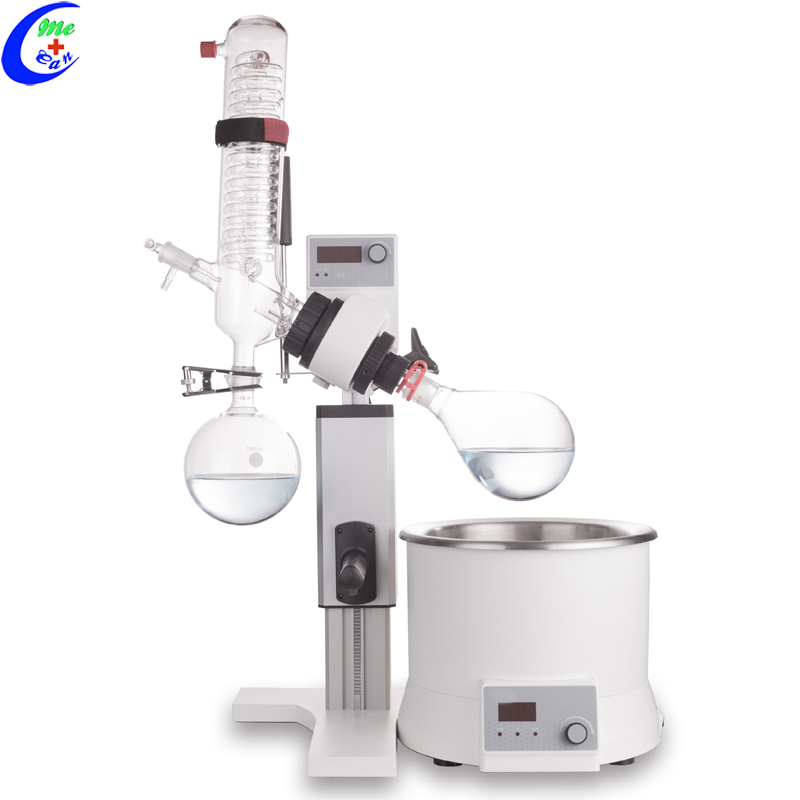

    Manual Lift LCD Digital Rotary Evaporator Apparatus 6

    Brief introduction:
    LED Digital Rotary Evaporator is an essential instrument in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. It can be combined with vacuum pump, vacuum controller and circulating chiller to provide excellent distilling solutions in a wide range of applications.
    Features:
    • 5L heating bath with a wide temperature range(room temp.to180°C), independent temperature control, make it can be used separately. Water/oil heating mode can be changed only through a switch.
    • Manual lift combined with auxiliary lift for precise positioning of the glassware.
    • PID control ensures high temperature accuracy at±1°C (water).
    • Overheating protection temperature at 220°C
    • Boil-dry protection, automatically power off if heating without water/oil in the heating bath.
    • Speed range from 20 to 200rpm, timing interval operation in clockwise and anticlockwise directions for drying process.
    • Patented condenser (cooling surface 1200/1700cm2 for selection), double helix condensing tube + center circular arc design to speed up the flow rate of liquid with excellent cooling effect.
    • Ejection mechanism ensures easy exchange of evaporating flask
    • Adjustable immersion angle
    Patented double spring sealing ring which is made of PTFE provides an excellent sealing performance
    • Remote function provides PC control and data transmission.
    Compatible with the entire range of RE100-Pro glassware
    Specification:

    Motor Type

    Brushless DC motor

    Speed Range

    20-200rpm

    Display LED

    (speed, temperature, time)

    Clockwise and Anti-clockwise

    Yes

    Heating Temperature Range

    Room temp. to 180℃

    Control Accuracy

    Water:±1℃ oil: ±3℃

    Heating Power

    1010 W

    Stroke Displacement

    Manual 110mm + auxiliary100mm

    Interval Time Setting Range

    1~999s

    Dimension [D×W×H]

    Main Unit: 440×320×450mm

    Heating Bath: 300x300x240mm

    Weight

    Main Unit: 7kg Heating Bath: 3kg

    Permissible Ambient Temperature

    5~40℃

    Permissible Relative Humidity

    80%RH

    Protection Class

    IP20

    USB Interface

    Yes

    Voltage/Frequency

    100~120/200~240V 50/60 Hz

    Power

    1100 W
