Mammography X Ray Machine Equipment, Mammography Unit

Payment:
T/T in advance, Western Union, L/C, MoneyGram, Cash
Lead time:
3-15 working days
MOQ:
1 set
Model:
MCX-M02

    Mammography X Ray Machine Equipment, Mammography Unit


    Packing details

    Item

    Length * Width *height/mm

    Weight/kg

    Host machine (without packing)

    2000 *560 *940

    150

    Operation platform (without packing)

    905 *560 *350

    46

    Host machine (packing)

    2160 *690 *1150

    210

    Operation platform (packing)

    1050 *700 *600

    60

    Application

    A mammogram is a special, low-dose X-ray technique used to take a picture of the breast, detecting and diagnosing any abnormal lumps or masses in breast tissue. It is one of the best tools for the early identification of breast cancer. With early identification, breast cancer can be cured while in the first stage, and recovery is more likely.

    Specification

    Item

    Parameter

    Remark

    X-ray Generator

    Generator Type: High Frequency Inverter 80kHz

    Radiographic Ratings: Large Focal Point 20-35kV/10-510mAs

    Small Focal Point 20-35kV/10-100mAs

    Power Rating: 6kVA


    Self-developed and world advanced  all-solid-state high frequency high voltage x-ray generator

    X-ray Tube


    Focal Spot Size: Dual Focus 0.1 / 0.3mm

    Target Material: Molybdenum (Mo)

    Port Material: Beryllium (Be)

    High-speed anode drive: 2800 /10000rpm

    Target angle:10°/16°

    Anode Heat Storage: 300kHU

    Anode Cooling: Air cooling

    Filtration: Mo(0.03mm)Al(0.5mm)

    Model: IAE C339V


    Radiographic Stand

    C-ARM Vertical Movement: 590mm

    Center of electric rotating C-arm, automatic return function by one key

    Rotations Degree: +90°~-90°

    Automatically released after the exposure pressure settings display. Compression flexible stepless speed.

    Max. pressure: 200N

    Max. travel: 150mm

    SID: 650mm


    Cassette Image Receptor

    Bucky Device: 18×24cm Bucky drive mechanism

    Grid Ratio: 5:1, 30 Line/cm

    24x30cm for optional

    Others

    Line Voltage

    220V ac±10%  25A, Single phase

    110V for optional

    Configuration

    No.

    Item

    Quantity

    1

    X-ray Tube

    1

    2

    X-ray Generator

    1

    3

    Radiographic Stand

    1

    4

    C-ARM

    1

    5

    Cassette Image Receptor

    1

    6

    Compression devices

    1

    7

    Comfortable Compression

    1

    8

    Paddle switch

    2

    9

    Control console

    1

    10

    Exposal switch and connected line

    1

    11

    Power wire

    1

    12

    Grounded wire

    1

    13

    Fuse

    2

    14

    Operation manual

    1

    15

    Maintenance Reference Manual

    1

    Features

    1. Unique adopt all-solid-state high frequency high voltage generator. This technology has got the PATENT IN THE USA.

    2. The safest mammography at high voltage. There is a built-in X-ray ignition coil in host machine, high-voltage power lines less then 25cm.

    3. Electric Isocentric rotating C-arm with a unique automatic back to center function.

    4. Optional the third generation imported moving grid.

    5. Optional auto/semi-auto/manual, three kind exposure modes.

    6. Optional image output device: digital film printer.

    7. A total of 3 pieces of large size full color LCD screen display, operation table 8 inch LCD screen is a touch key.

    8. Comfortable Compression

    When some degree of pressure is required for radiography, it allows you to presser the appropriate pressure(up to a maximum of 20kg)and is equipped with MICOM Control’s Soft-touch system which is designed to minimize the discomfort of the examine with in the pressure range.

    Tissue Compression: Manual and Motorized (Max 20kg)

                                  Compression Force and Thickness Data Display

                                  Micro Control’s Compression

                                  Automatic Release

    9. Intelligent Automatic Exposure Control(AEC)

    With the Automatic Exposure Control system, it is possible to produce images with reliable intensity suitable for and film, screen, or method of radiography.

    Furthermore, it greatly enhances the convenience of radiography by embedding the Full-AEC function which is capable of utilizing the Auto kV

    Type: Solid-State Detector

    Microprocessor Control

    AEC Mode: Full AEC(Auto kV)

    Semi AEC (kV Select)

    Manual (kV,mAs Select)

    Density Adjustment: 16 density steps

    10. X-ray Tube

    Model: China Hangzhou LR01

    Focal Spot Size: Dual Focus 0.2 / 0.4mm

    Target Material: Molybdenum (Mo)

    Port Material: Beryllium (Be)

    High-speed anode drive: 2800 /1000rpm

    Target angle:12°/12°

    Anode Heat Storage: 100KJ(150KHU)

    Anode Cooling: Air cooling

    Filtration: Mo(0.03mm)Al(0.5mm)

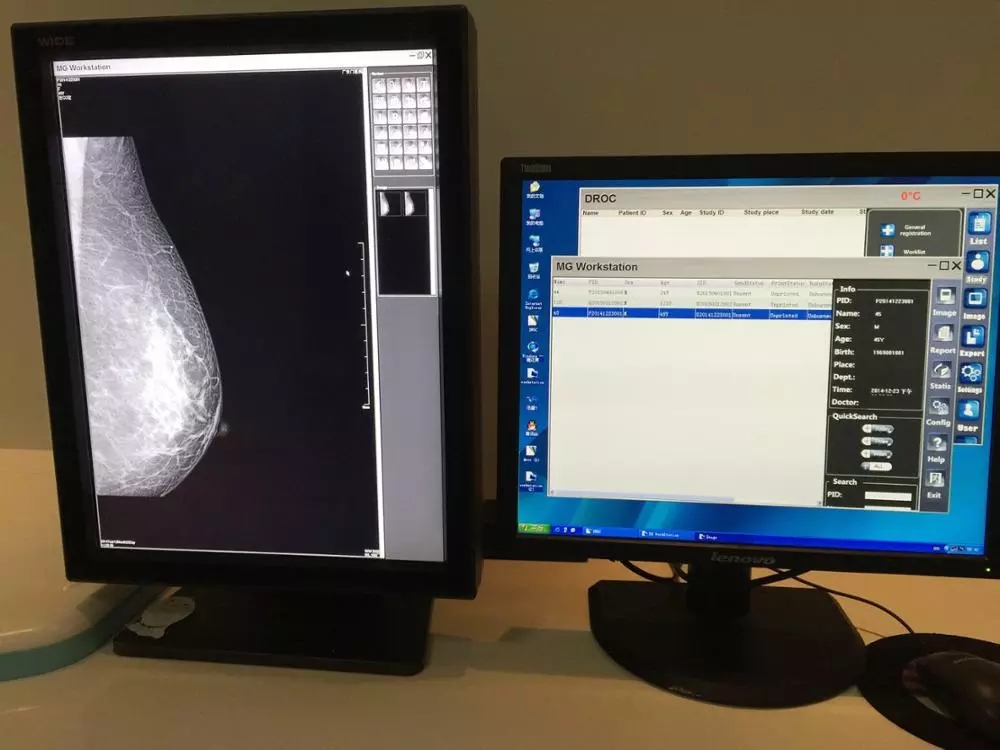

    Good images

    Mammography X Ray Machine Equipment, Mammography Unit 7

    Mammography X Ray Machine Equipment, Mammography Unit 8
