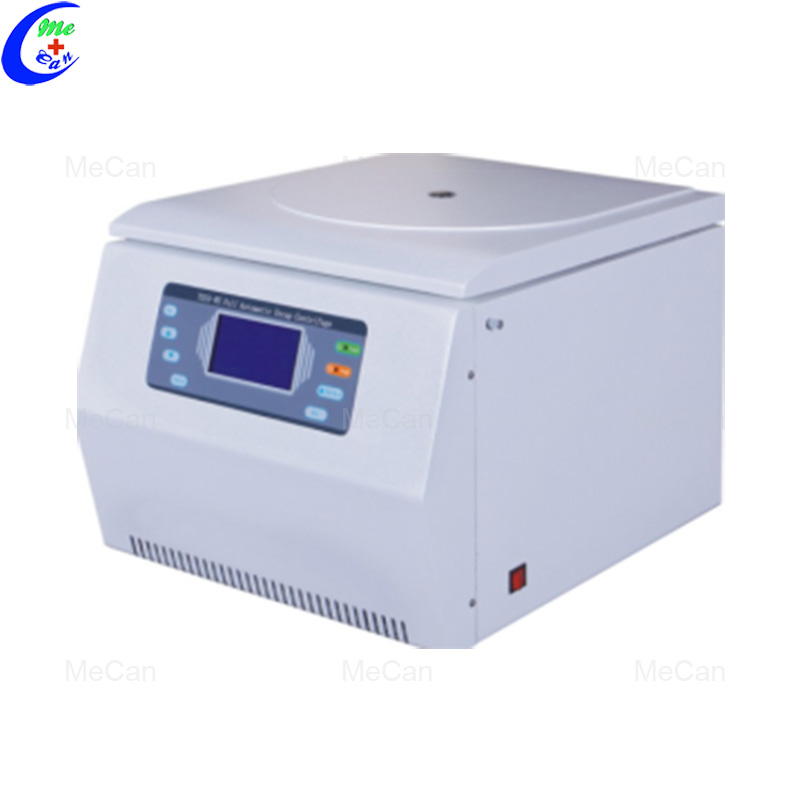

Low-speed Multiple-pipe Automatic Ballancing Centrifuge
Low-speed Multiple-pipe Automatic Ballancing Centrifuge
Model:MCL-C17
Features:
Microprocessor control, brushless motor and less noise.
It’s widely used in qualitative analysis of blood serum, plasma and urea in hospital, blood center and biochemistry.
Technical Parameters:
Model | MCL-C17 |
Max Speed | 5000r/min |
Max RCF | 4390xg |
Max Capacity | 4x250ml |
Motor | Brushless DC Motor |
Timer Range | 0 ~ 99min |
Noise | ≤ 65dB |
Power supply | AC220v 50Hz 5A |
Dimensions | 580x450x370mm(LxWxH) |
Weight | 39kg |
Rotors:
Number | Max Speed | Max RCF | Capacity |
NO.1 Swing Rotor | 5000r/min | 4390xg | 4×100ml |
NO.2 Swing Rotor | 4000r/min | 2810xg | 8×50ml |
8x100ml | |||
NO.3 Swing Rotor | 4000r/min | 2810xg | 32×15ml |
NO.4 Swing Rotor | 4000r/min | 2810xg | 32×10ml |
NO.5 Swing Rotor | 4000r/min | 2810xg | 16×15ml |
NO.6 Swing Rotor | 4000r/min | 2800xg | 48×5/7ml |
NO.7 Swing Rotor | 4000r/min | 2800xg | 72×5ml/7ml |
3300xg | 4x250ml | ||
NO.8 Swing Rotor | 4000r/min | 3000xg | 28x10ml |
40×5ml | |||
NO.9 Swing micro-plates Rotor | |||
