Laboratory Tissue Embedding System 1
Laboratory Tissue Embedding System 1

Laboratory Tissue Embedding System

Payment:
T/T in advance, Western Union, L/C, MoneyGram, Cash
Lead time:
3-15 working days
MOQ:
1 SET
Model:
MCL-P05

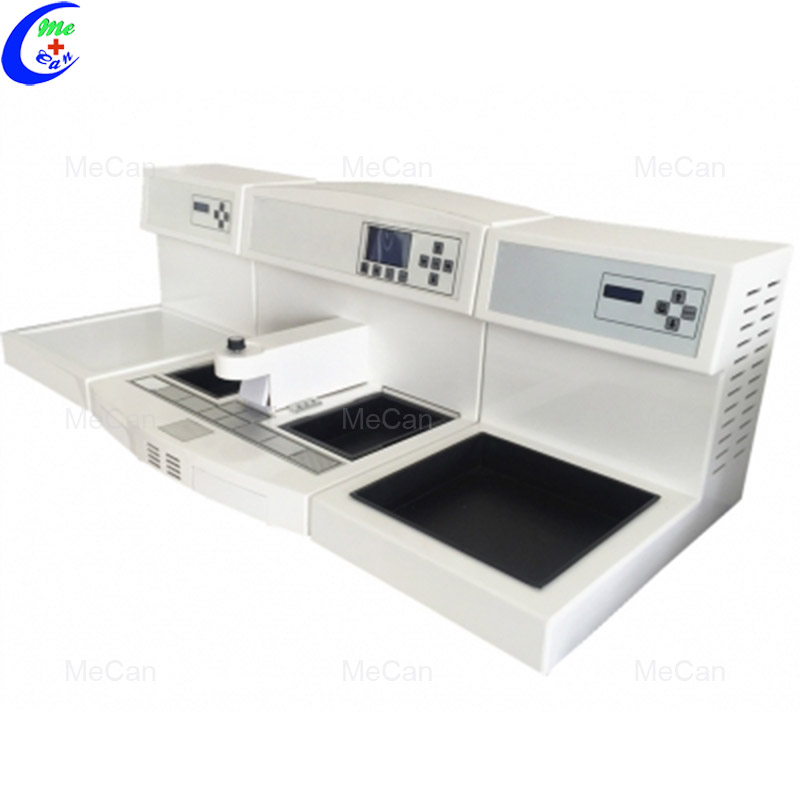

    Laboratory Tissue Embedding System

    Model:MCL-P05

    Laboratory Tissue Embedding System 2

    Specification:

    Main Console specification

    Nominal supply voltage:   220V/50Hz

    Maximum power draw:    650VA

    Working temperature:     from ambient to 80℃ increments 1℃

    Capacity

    Paraffin reservoir:        6.0 Lt

    Cassette/mold tray:       1.6 Lt

    Dimensions

    Width:                 600mm

    Depth:                 650mm

    Height:                460mm

    Weight:                30Kg

    Cryo Console specification

    Nominal supply voltage:   220V/50Hz

    Maximum power draw:    200VA

    Working temperature:     from 0℃ to -20℃increments 1℃

    Dimensions

    Width:                 410mm

    Depth:                 580mm

    Height:                 440mm

    Weight:                 25Kg

    Thermal Console specification

    Nominal supply voltage:    220V/50Hz

    Maximum power draw:     650VA

    Working temperature:      from ambient to 80℃ increments 1℃

    Capacity

    Paraffin tray:            5Lt

    Dimensions

    Width:                  410mm

    Depth:                  620mm

    Height:                 440mm

    Weight:                 13Kg
