    Laboratory Temperature Controller Hot Plate Magnetic Stirrer

    Model:MCL-D23

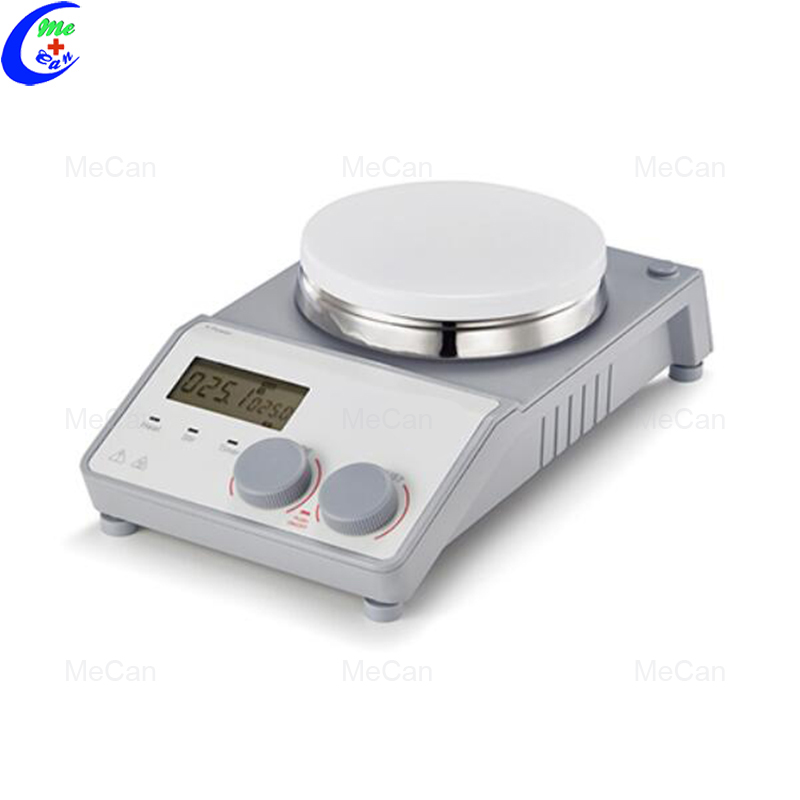

    Laboratory Temperature Controller Hot Plate Magnetic Stirrer 6Features:

    •   Brushless DC motor is maintenance free and explosion-proof
    •   Digital temperature control with max. temperature at 340°C
    •   Digital speed control with max. speed up to 1500rpm
    •   Max. stirring quantity of H2O at 20L
    •   Safety circuits provide overheating protection
    •   The “HOT” warning will  flash if the  plate temperature is above 50°C even when the hotplate is turned off
    •   Wide range timer function from 1min to 99h59min(MS-H-ProT only)
    •   High-resolution LCD display shows actual temperatures and speed (MS-H-ProT displays the time also)
    •   External  temperature  control  is  possible  by  connecting  the temperature sensor(PT 1000) with accuracy at ±0.2°C
    •   Stainless  steel  work  plate  with  ceramic  coating  provides  good chemical-resistant  performance
    •   Remote function provides PC control and data transmission
    •   A wide variety of accessories are available

    Specification:

    Specifications

    MCL-D23

    Work plate dimension

    φ135mm(5 inch)

    Work plate material

    stainless steel cover with  ceramic

    Motor type

    Brushless DC motor

    Motor rating input

    18W

    Motor rating output

    10W

    Power

    550W

    Heating output

    500W

    Voltage

    100-120/200-240V  50/60Hz

    Stirring positions

    1

    Max. stirring quantity[H2O]

    20L

    Max. magnetic bar[length]

    80mm

    Speed range

    100-1500rpm
    resolution±1rpm

    Speed display

    LCD

    Temperature display

    LCD

    Heating temperature range

    Room  temp.-340°C, increment 1°C

    Temperature  control accuracy

    ±1°C(<100°C)
    ±1%(>100°C)

    Over  temperature protection

    360°C

    Temperature  display accuracy

    ±0.1°C

    External  temperature sensor

    PT1000 (accuracy ±0.2)

    "Hot" warning

    50°C

    Timer function

    1min to 99h 59min

    Data connector

    RS232

    Protection class

    IP42

    Dimension[WxDxH]

    160×280×85mm

    Weight

    2.8kg

    Permissible ambient temperature and humidity

    5-40°C,  80%R
