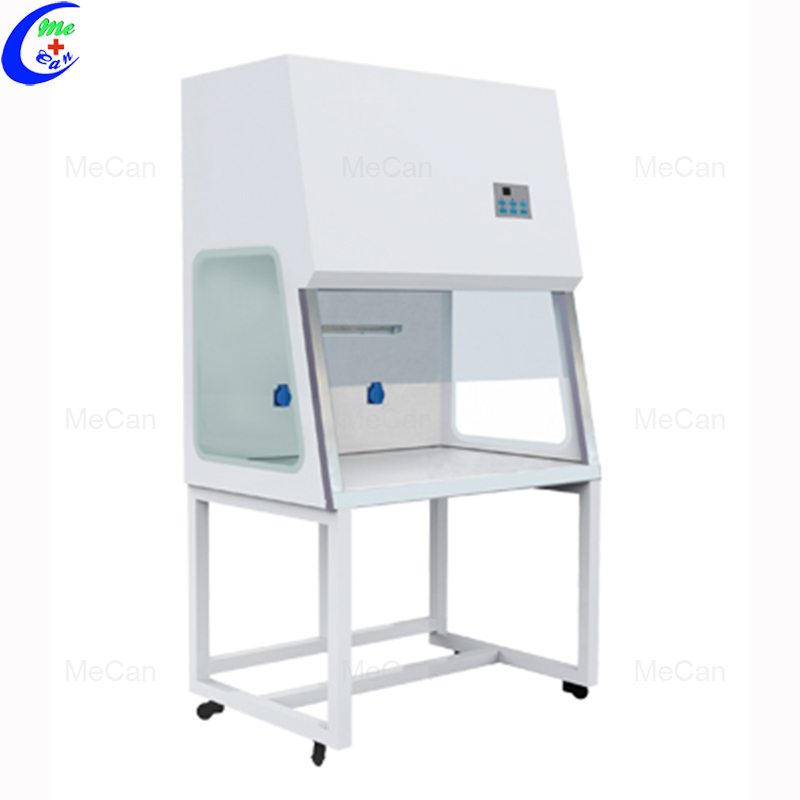

Laboratory PCR Cabinet
Laboratory PCR Cabinet
Model:MCL-SC07
Features:

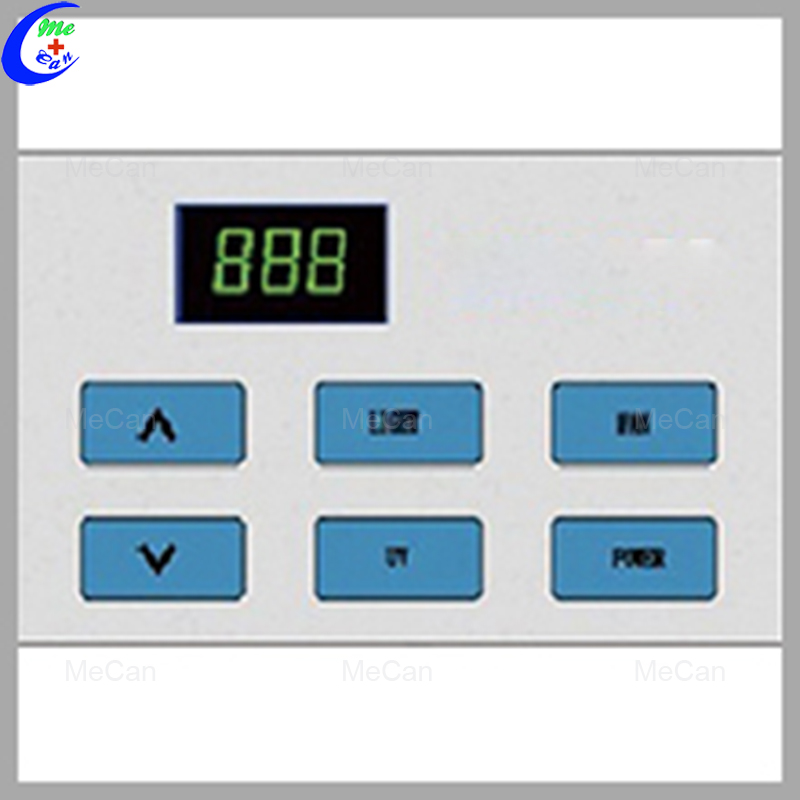

LED Display
LED display: UV timer.

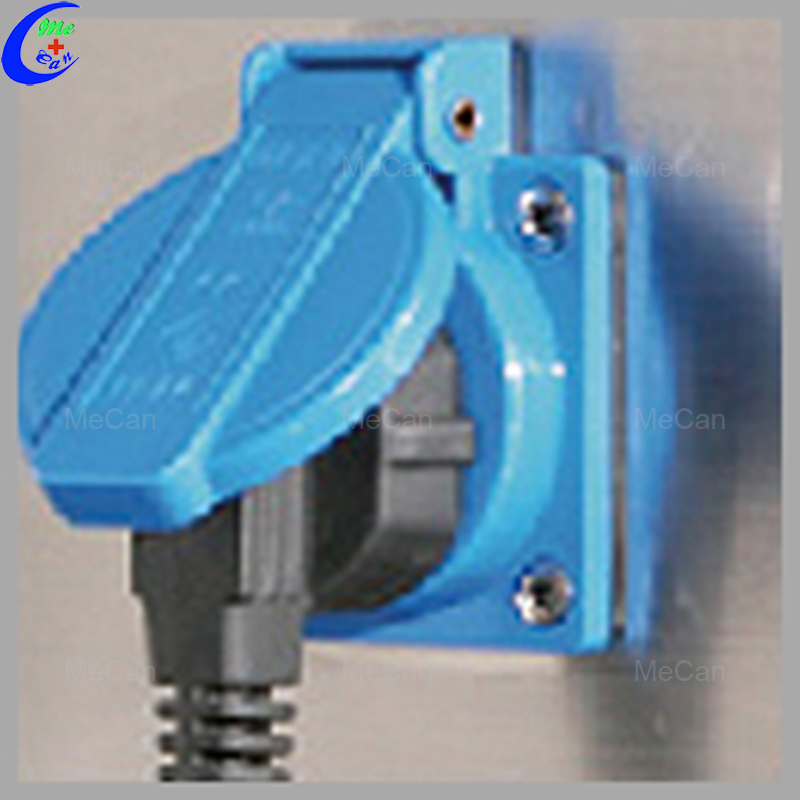

Waterproof Socket
2 waterproof sockets are located in the back wall, for optimum convenience of using small devices inside the cabinet.

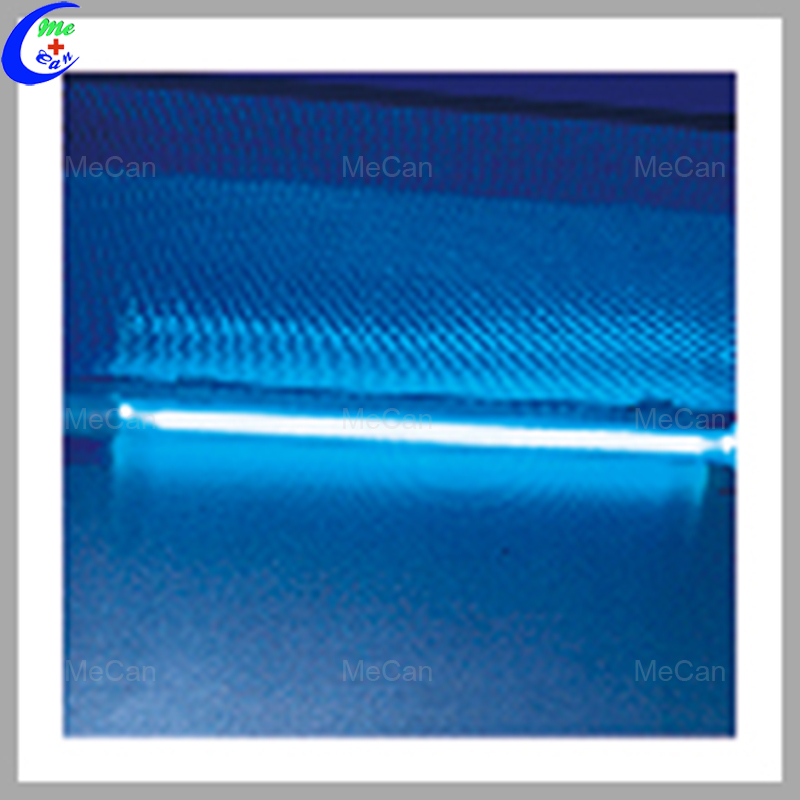

UV Lamp
Emission of 253.7 nanometers for most efficient decontamination.

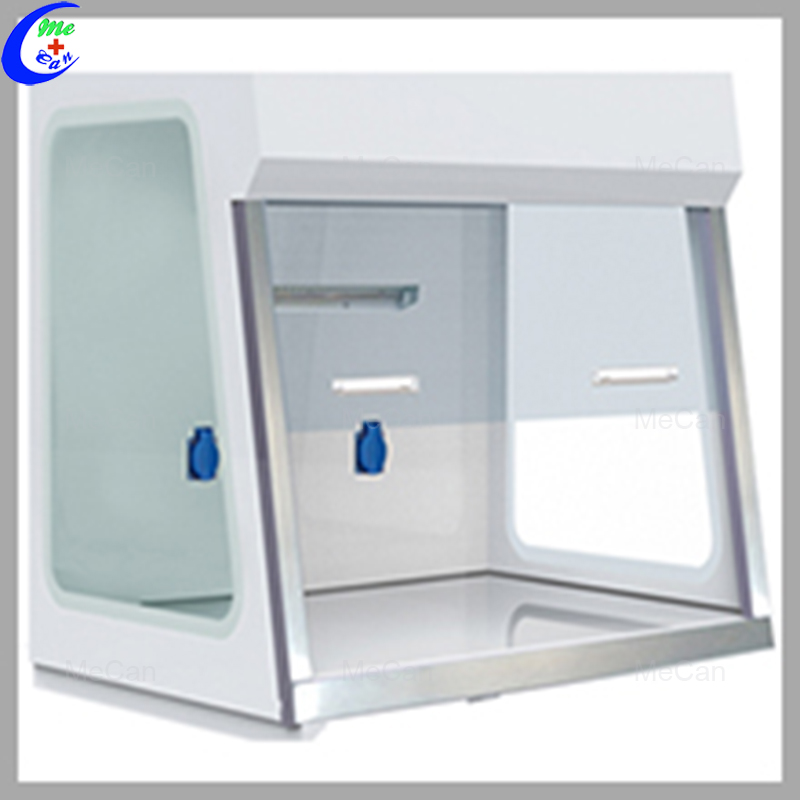

Side Glass Window
Side glass windows maximize light and visibility inside the cabinet, providing a bright and open working environment.

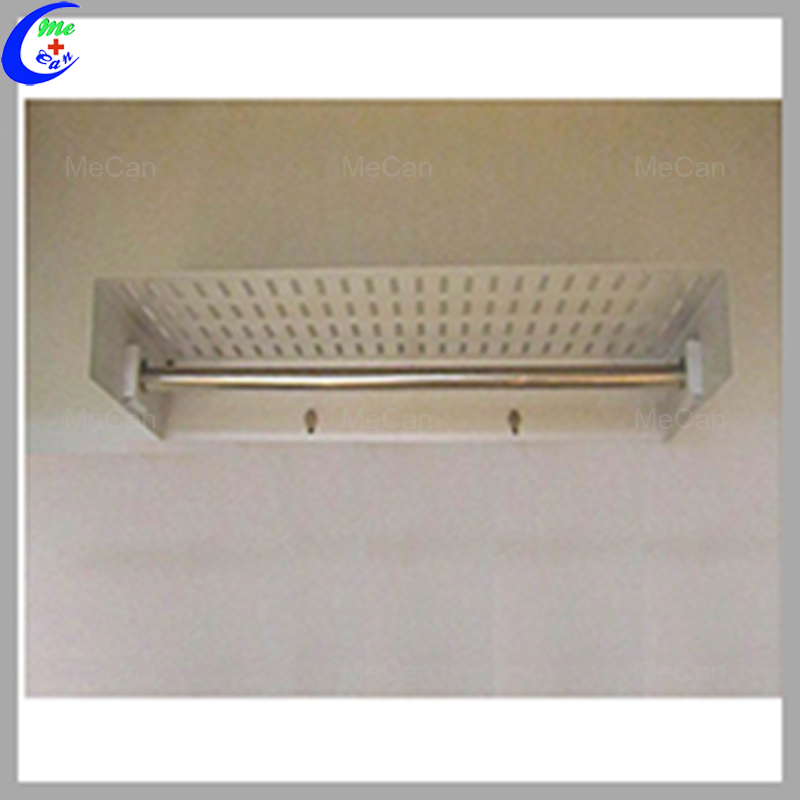

Shelf with IV bar

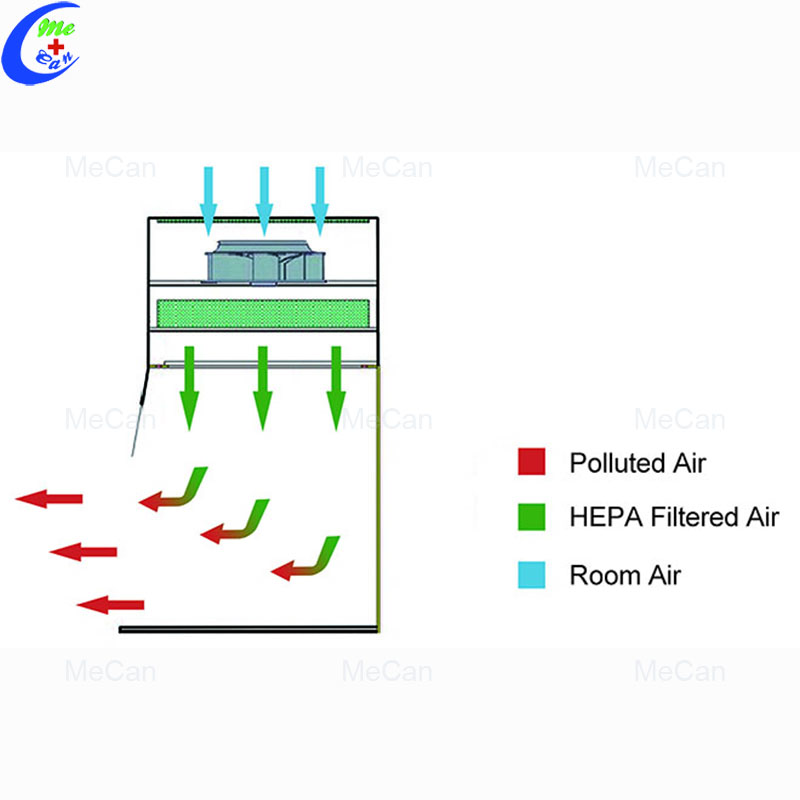

Air Pattern
ADVANTAGE:
1. LED display.
2. UV sterilization system.
3. HEPA filter efficiency 99.999% at 0.3μm.
4. Interlock function: UV lamp only can be switched on when the front window is closed, ensuring operator safety.
5. UV timer (1-99 minutes): When the setting time expires, the UV lamp automatically switches off in preparation for the next experiment.
Specification:
Model | PCR-800 | PCR-1000 | PCR-1200 | PCR-1300 | PCR-1500 |
External Size (W*D*H) | 800*700 *1770mm | 1000*705 *1770mm | 1200*700 *1770mm | 1300*700 *1770mm | 1500*700 *1770mm |
Internal Size (W*D*H) | 700*595 *550mm | 900*595 *560mm | 1100*595 *550mm | 1200*595 *550mm | 1400*595 *550mm |
Work Surface Height | 750mm | ||||
Material | Main Body: Cold-rolled steel with anti-bacteria powder coating | ||||
Work Table: 304 stainless steel | |||||
Front & Side Windows | 5mm toughened glass , anti-UV | ||||
Motorized | Manual | Motorized | Motorized | Motorized | |
Max Opening | 260mm | 320mm | 260mm | 260mm | 260mm |
Pre-filter | Polyester fiber, Washable | ||||
HEPA Filter | 99.999% efficiency at 0.3μm. | ||||
Airflow Velocity | 0.3-0.5m/s, speed adjustable | ||||
Noise | ≤65dB | ||||
UV Lamp | 20W*1 | 20W*2 | 30W*1 | 30W*1 | 40W*1 |
Emission of 253.7 nanometers, with UV timer | |||||
Illumination Lamp | LED 8W*2 | LED 12W*2 | |||
Illumination | ≥1000Lux | ||||
Shelf with IV bar | Stainless steel, 502*150*50mm (W*D*H) | ||||
caster | Universal caster with leveling feet | ||||
Consumption | 400W | 300W | 600W | 600W | 600W |
Waterproof Socket | Two, total load≤500W | ||||
Power Supply | AC 220V±10%, 50/60Hz;110V±10%,60Hz | ||||
Standard Accessory | UV lamp*3, Fluorescent lamp, Base stand, Waterproof socket*2, Shelf with IV bar | ||||
Gross Weight | 130kg | 150kg | 170kg | 180kg | 200kg |
Package Size (W*D*H) | 950*930 *1370mm | 1150*930 *1370mm | 1350*930 *1350mm | 1450*930 *1370mm | 1650*930 *1370mm |
Standard Accessory:
UV lamp 3pcs
Fluorescent lamp 1pc
Base stand 1pc
Waterproof socket 2pc
Shelf with IV bar 1pc
