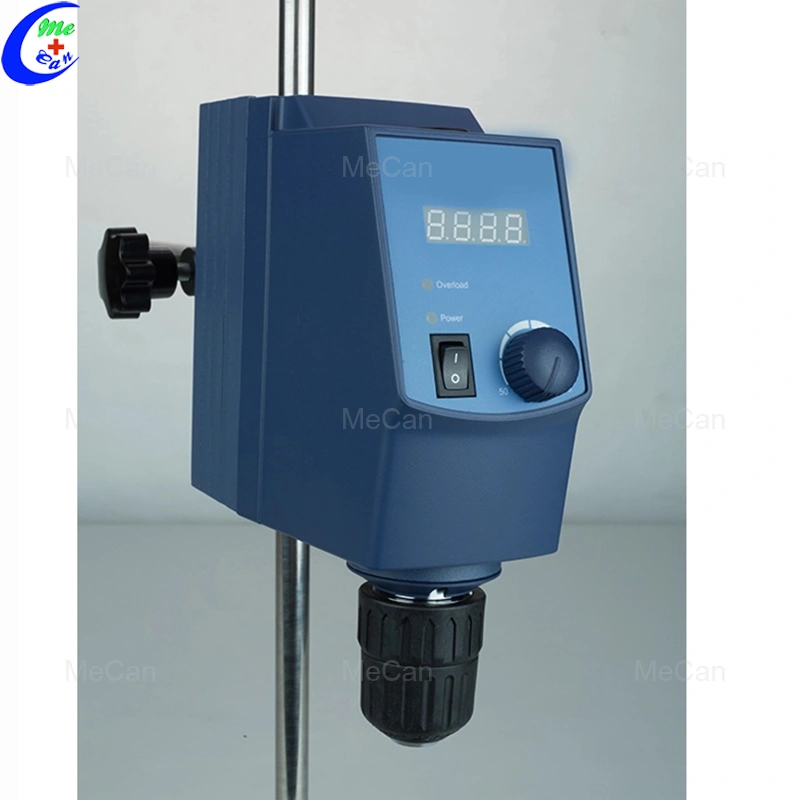

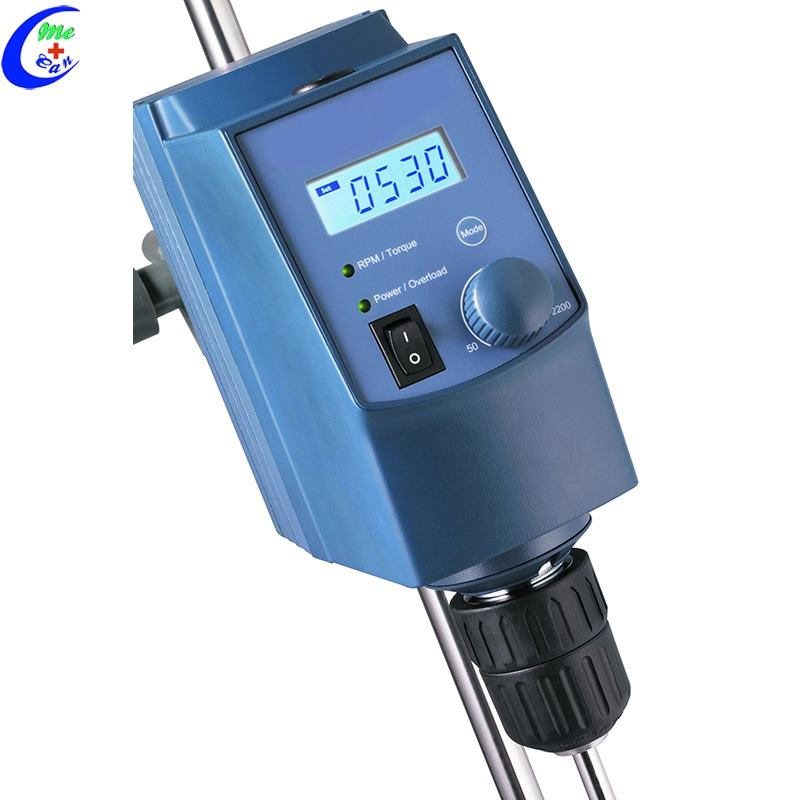

Laboratory Digital Overhead Stirrer Agitator
Laboratory Digital Overhead Stirrer Agitator
Model:MCL-D12
Features:
*High reliability and outstanding performance.
*LCD display for precise monitoring of set and actual speeds, a wide range of speed from 50 to 2200rpm with control accuracy of ±3rpm.
*Brushless DC motor for long life, maintenance free and explosion proof Torque trend display for real-time information on viscosity ,changes.
*Safety circuits allow for safe stop function in anti-stall or overload conditions.
*Smooth operation prevents accidental spillage and splashing.
*Provides constant speed even with changes in viscosities of the samples.
*Remote function provide PC control and data transmission.
*Availability of auto-restart function in case of power loss for overnight operations.
Specification:
Max. stirring quantity[H2O] 20L Power 70W Motor type brushless DC motor Motor input power 60W Motor output power 50W Speed range 50-2200rpm Speed display accuracy ±3rpm Speed display LCD Torque display LCD Voltage 100-220V, 50/60 Hz Overload protection display LED lights Max. torque 40Ncm Viscosity max. 10000mPas Chuck range diameter 0.5-10mm Dimension[W×D×H] 83x220x186mm Weight 2.8kg Protection class IP21 Permissible ambient temperature and humidity 5-40°C, 80%RH Data connector RS232
