Laboratory Ceramic Digital Hot Plate Magnetic Stirrer

Payment:
T/T in advance, Western Union, L/C, MoneyGram, Cash
Lead time:
3-15 working days
MOQ:
1 SET
Model:
MCL-D24

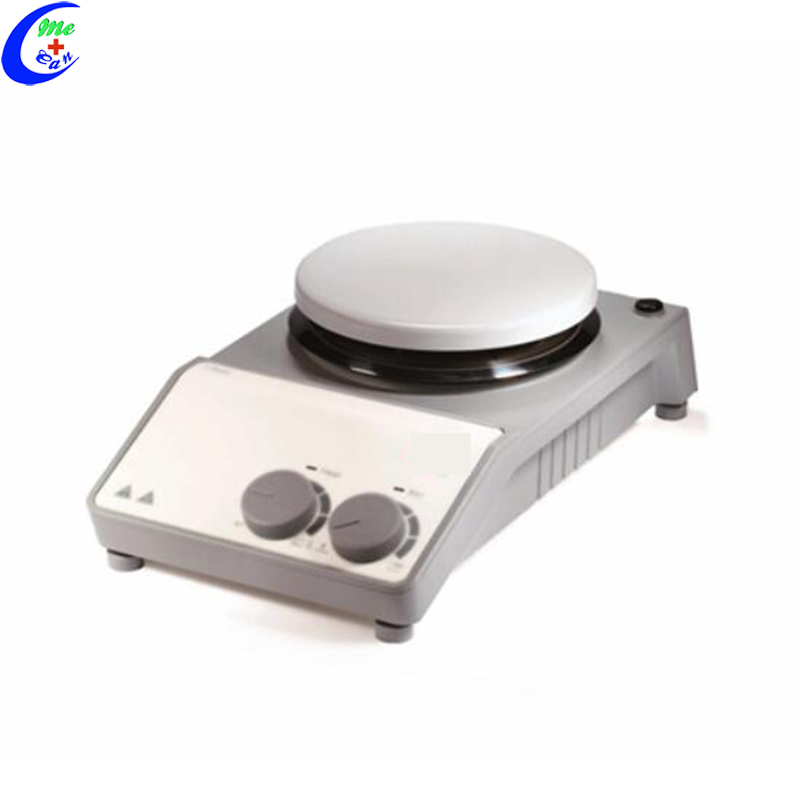

    Laboratory Ceramic Digital Hot Plate Magnetic Stirrer

    Model:MCL-D24

    Laboratory Ceramic Digital Hot Plate Magnetic Stirrer 5

    Features:

    •   Maintenance free brushless DC motor
    •   Max. temperature to 340°C
    •   Stirring speed up to 1500 rpm
    •   Stainless steel work plate with ceramic coating provides good  chemical-resistant  performance
    •   Safety circuits provide overheating protection
    •   A wide variety of accessories are available

    Specification:

    Specifications

    MCL-D24

    Work plate dimension

    φ135mm(5 inch)

    Work plate material

    stainless steel cover with  ceramic

    Motor type

    Brushless DC motor

    Motor rating input

    18W

    Motor rating output

    10W

    Power

    550W

    Heating output

    500W

    Voltage

    100-120/200-240V  50/60Hz

    Stirring positions

    1

    Max. stirring quantity[H2O]

    20L

    Max. magnetic bar[length]

    80mm

    Speed range

    100-1500rpm
    resolution±1rpm

    Speed display

    Scale

    Temperature display

    Scale

    Heating temperature range

    Room temp.-340°C

    Over  temperature protection

    350°C

    Temperature  display accuracy

    ±0.5°C

    Protection class

    IP42

    Dimension[WxDxH]

    160×280×85mm

    Weight

    2.8kg

    Permissible ambient temperature and humidity

    5-40°C,  80%RH
