Laboratory Equipment
Laboratory Biological Safety Cabinet  1
Laboratory Biological Safety Cabinet  1

Laboratory Biological Safety Cabinet

Payment:
T/T in advance, Western Union, L/C, MoneyGram, Cash
Lead time:
3-15 working days
MOQ:
1 SET
Model:
MCL-SC02

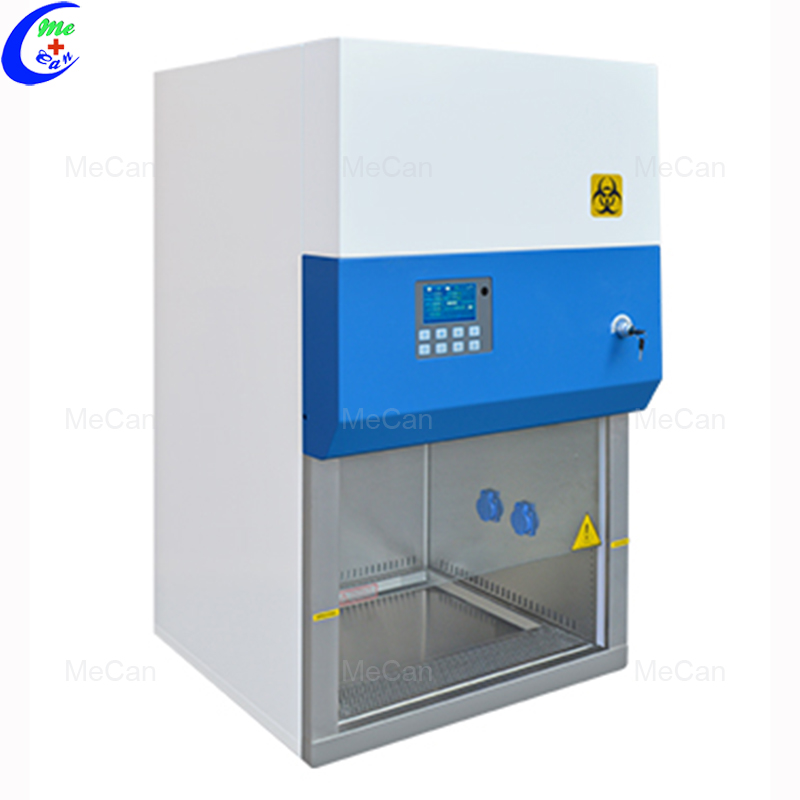

    Laboratory Biological Safety Cabinet

    Model:MCL-SC02

    Laboratory Biological Safety Cabinet  2

    Product description:

    Laboratory Biological Safety Cabinet  3

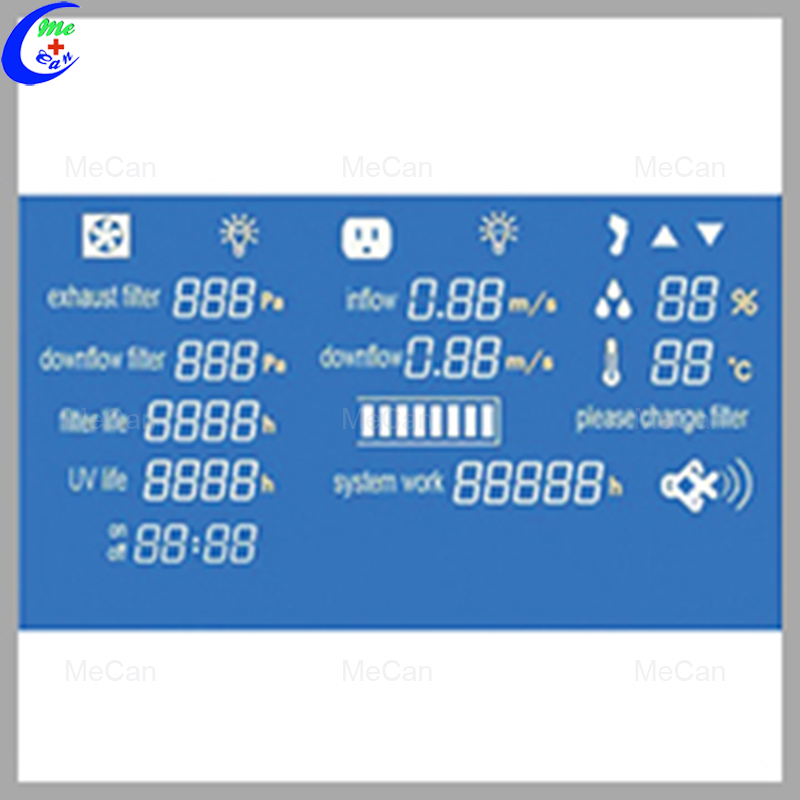

    LCD display

    Large Digital LCD displsy is easy to monitor  all the safety parameters at a glance and ergonomically sized control panel improves user interface.


    Laboratory Biological Safety Cabinet  4

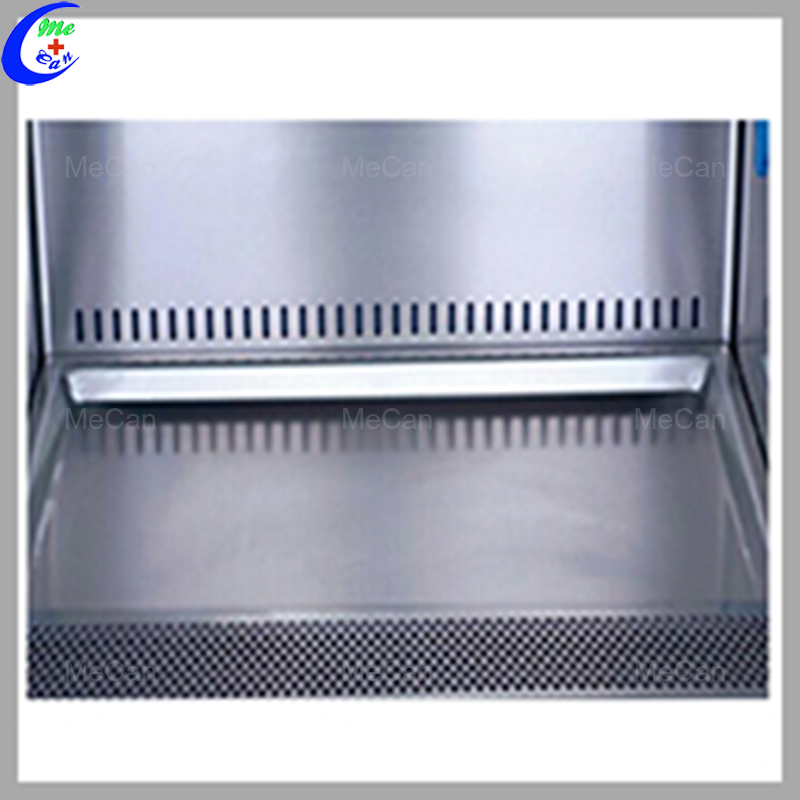

    Work Zone

    Work zone is made of 304 stainless steel,is surround by negative pressure.


    Laboratory Biological Safety Cabinet  5

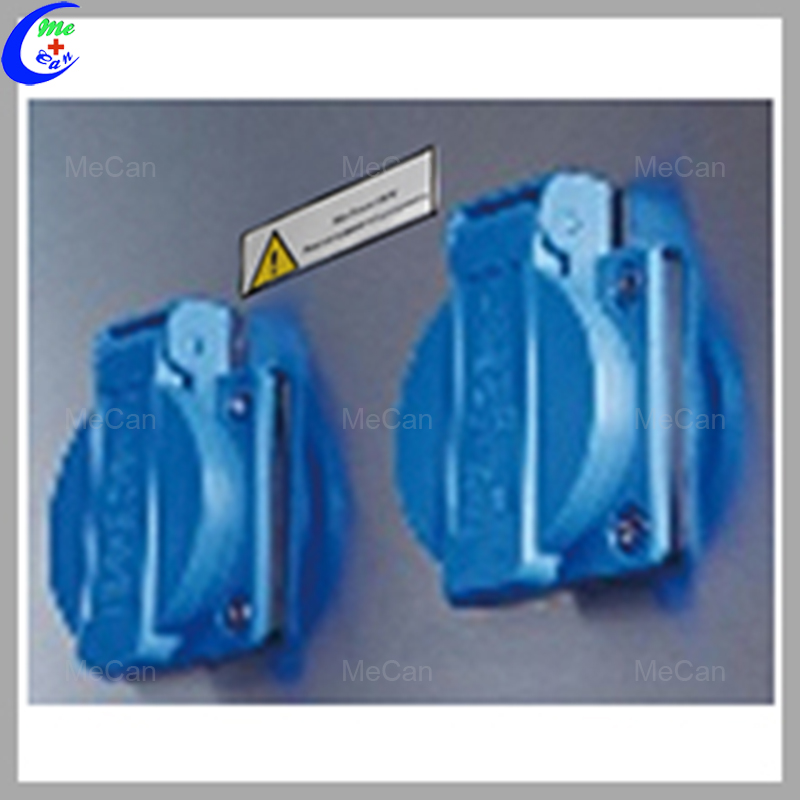

    Waterproof Socket

    2 waterproof sockets are located in the side panel for optimum convenience of using small devices inside the cabinet.


    Laboratory Biological Safety Cabinet  6

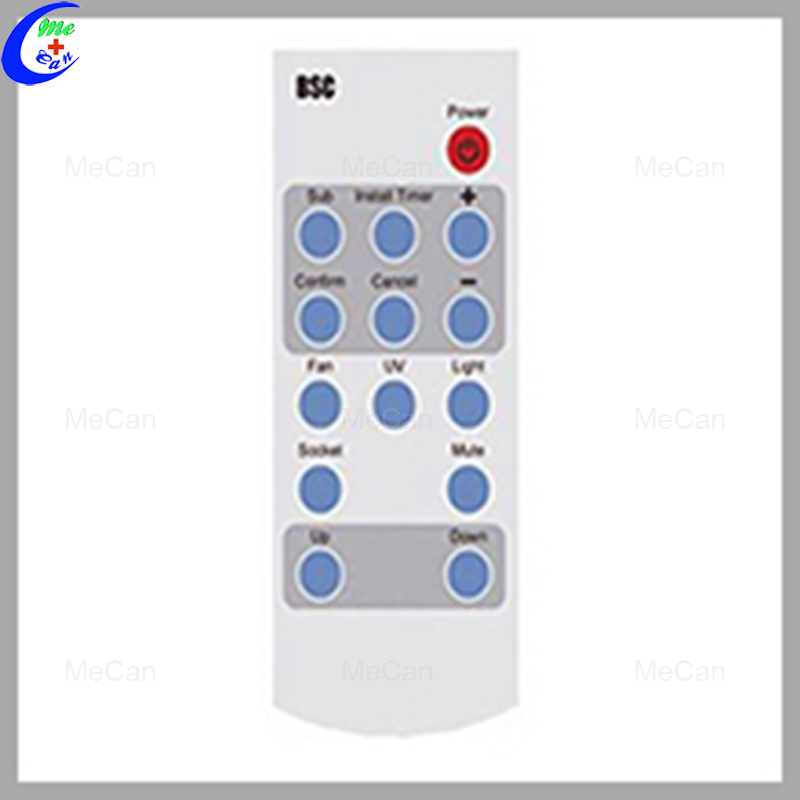

    Remote Control

    All functions can be realized with it, making the operation much easier and convenient.

    Laboratory Biological Safety Cabinet  7

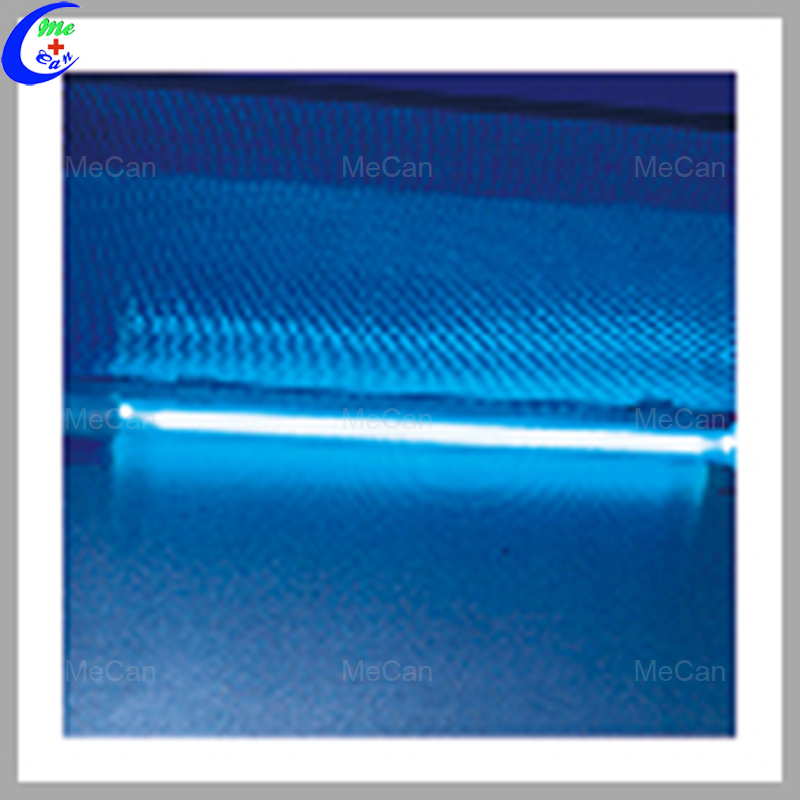

    UV Lamp

    Emission of 253.7 nanometers for most efficient decontamination.


    Features:


    1. Small dimension,save space.

    2. Centrifugal fan, speed, adjustable; H14 HEPA filter.

    3. Large LCD diaplay: Operators can check detailed status of the cabinet, such as inflow and downflow velocity, work area temperature and humidity, filter pressure, UV working time and filter working time, filter life indicator etc.

    4. Time reaerve function: This can save 30 minutes waiting time after activating the cabinet and the sterilization time after experiment.

    5. Remote control: Each function can be realized 6 meters away from the cabinet by remote control, which can protect the operator under emergency.

    6. Motorized front window: The front window is motorized for convenient, one-hand operation.

    7. Voice prompt function: Airflow alarm, filter replacing alarm and front window height alarm.

    8. With memory function in case of power-failure.


    Specification:

    Model

    MCL-SC02

    External Size(W*D*H)

    700*650*1230 mm

    Internal Size(W*D*H)

    600*500*540 mm

    Tested Opening

    Safety Height ≤ 200 mm(8’’)

    Max Opening

    370mm(15’’)

    Inflow Velocity

    0.53±0.025 m/s

    Down Flow Velocity

    0.33±0.025 m/s

    HEPA Filter

    Two, 99.999% efficient at 0.3μm. Filter life indicator.

    Front Window

    Motorized. Toughened glass. Anti UV.

    Noise

    EN12469 ≤ 58 dB / NSF49 ≤ 61 dB

    UV Lamp

    15W*1

    UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination.

    LED Lamp

    8W*2

    Illumination

    ≥1000Lux

    Consumption

    500W

    Socket

    Two, total load of two sockets: 500W

    Display

    LCD display

    Control System

    Microprocessor

    Airflow System

    70% air recirculation, 30% air exhaust

    Visual and Audio alarm

    Filter replacement, window over height, abnormal air flow velocity.

    Material

    Work Zone: 304 stainless steel

    Main Body: Cold-rolled steel with anti-bacteria powder coating.

    Work Surface Height

    750mm with optional base stand

    Power Supply

    AC220V±10%, 50/60Hz; 110V±10%, 60Hz

    Standard Accessory

    LED lamp, UV lamp*2, Remote control, Waterproof sockets*2

    Optional Accessory

    Base stand, Universal caster with brake and leveling feet

    Gross Weight without Base Stand

    Wooden: 164kg           Carton:121kg

    Gross weight with Base Stand

    Wooden:196kg

    Package Size without Base Stand (W*D*H)

    Wooden:860*800*1450mm   Carton:820*760*1430mm

    Package Size with Base Stand (W*D*H)

    Wooden: 860*960*1450mm


    Standard Accessory:

    LED lamp                             2pc

    UV lamp                               2pcs

    Remote control                      1pc

    Waterproof sockets               2pcs

    Optional Accessory:

    Base stand

    Universal caster with brake and leveling feet
