Lab RO Water Treatment System for Kidney Dialysis Machine
Lab RO Water Treatment System for Kidney Dialysis Machine
Structual composition
Mainly composed by pre-treatment (5umPP filter+carbon activated filter).Reverse Osmosis and class II precision processing. disinfection device and control.monitor device so on
Pre-treatment:get rid of turbidity.organism and residual chlorine in water
Reverse Osmosis and class II precision processing:get rid of ion, bacteria and endotoxin in water
Disinfection device kill bateria in organism filter instrument and tubes
Control,monitor device; real-time display equipment operating parameter. automatic alarm and self-sterilizer
Applied range
Applied to prepare hemodialysis treatment water

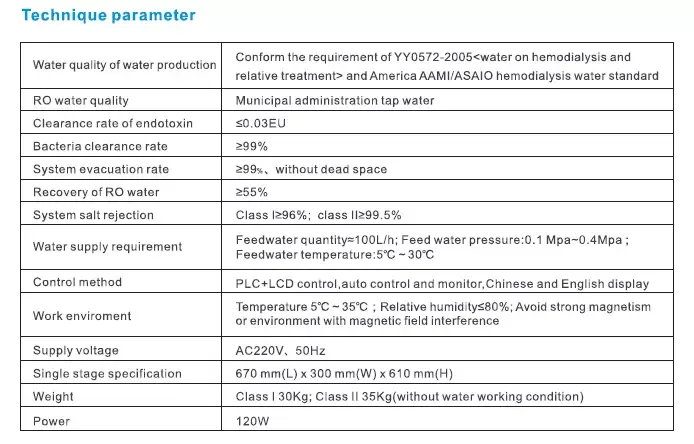

Specificationsand models
Model | 250L/H | 500L/H | 750L/H | 1000L/H | 1500L/H | 1500L/H |
Supply the quantity of HD machine | 5units | 10units | 15units | 20units | 30units | 30units above |
Elegant outside shell
High quality steel plate for shell, and anticorrosion baking finish, equiped with holder for pyrogen filter shell, pressure pump act.
Quality material and without dead space design, ensure the water production
Circulation loop without dead-chamber design, double-faced argon welding technique, ensure tube inwall smooth to avoid bacterial breed
Auto control system. operation is easy and convenient
PLC liquid crystal touch screen control, automatic operation, monitor, chemical disinfection, self control and timing switch and rinse, with easy and convenient operation
Multiple comprehensive defensive function
Le. water shortage protection, low pressure protection, overheating protection, and power-off protection etc, and with sound and light Indicate alarm, ensure safety and stability

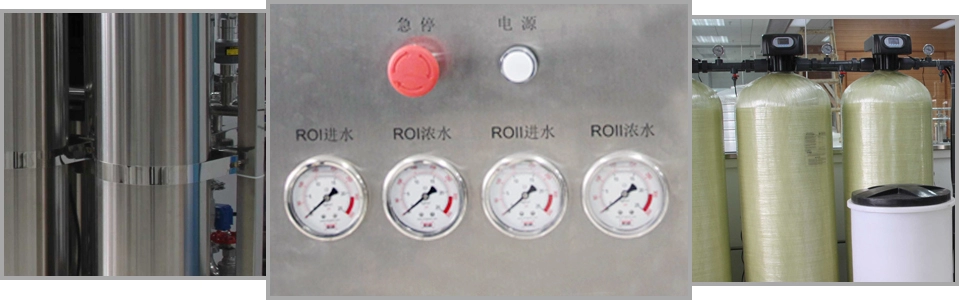

Multifunction monitor device
Can realize on-line monitoring on critical point such as system working condition and flow, conductivity, pressure and so on, and with malfunction alarm function
One-button full automatic disinfection mode
Automatic chemical disinfection and support hot rinse disinfection, RO main engine and dialysis water supply
tube are both with disinfection function
