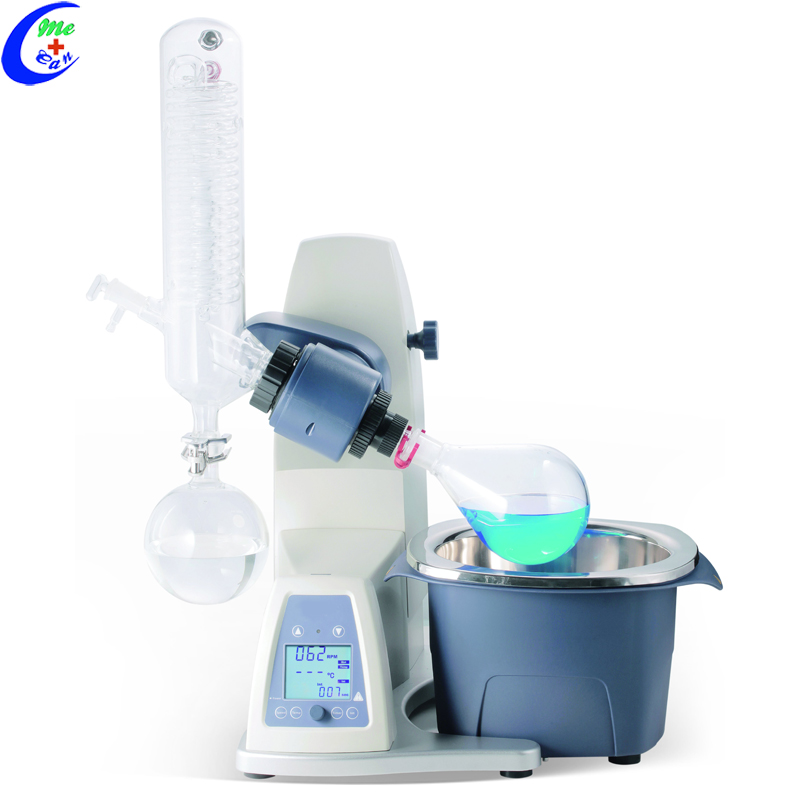

Lab Equipment LCD Digital Rotary Evaporator For Distillation
Lab Equipment LCD Digital Rotary Evaporator For Distillation
Model:MCL-D09
Features:
• Digital display of both rotation speed and heating temperature allows for optimal control of all distillation processes
• Automatic motor lift releases the evaporating flask to a safe position in case of power failure
• 5L heating bath with wide temperature range from room temperature to 180°C
• Overheating protection temperature at 220°C
• Speed range from 20 to 280rpm, and interval operation in clockwise and anticlockwise directions for drying process.
• Patented condenser (cooling surface 1500cm²) with excellent cooling effect
• Ejection mechanism ensures easy removal of evaporating flask
• Patented double spring sealing ring which is made of PTFE provides an excellent sealing performance
• Remote function provides PC control and data transmission
Specification:
Motor Type | Brushless DC motor |
Speed Range | 20-280rpm |
Display | LCD(speed,temperature, time) |
Clockwise and Anti-clockwise | Yes |
Heating Temperature Range | Room temp. to 180oC |
Control Accuracy | ±1℃ |
Heating Power | 1300W |
Stroke Displacement | automatic 150mm |
Timer | Yes |
Time Setting Range | 1-999min |
Dimension[D×W×H] | 465×457×583mm |
Weight | 15kg |
Permissible Ambient Temperature | 5-40℃ |
Permissible Relative Humidity | 80%RH |
Protection Class | IP20 |
Weight | 2.8kg |
Protection class | IP21 |
USB Interface | Yes |
Voltage/Frequency | 100-120/200-240V 50/60 Hz |
Power | 1400 W |
