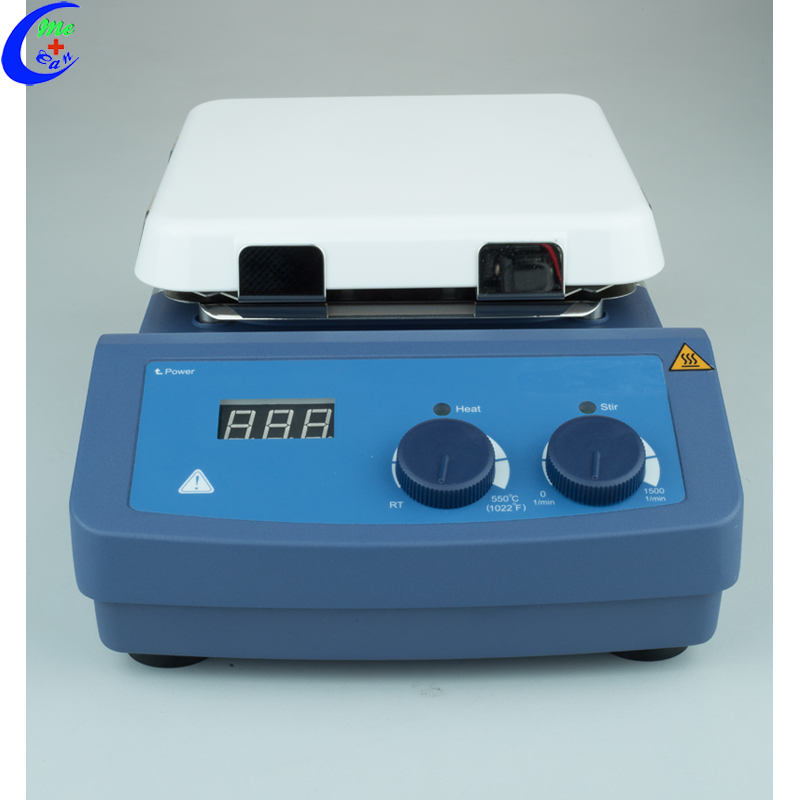

Lab Electronic Magnetic Stirrer Hotplate
Lab Electronic Magnetic Stirrer Hotplate
Model:MCL-D32
Features:
• LED display for precise monitoring of temperature
• A wide speed range of 0 to 1500rpm
• Max. Heating plate temperature 550°C
• External temperature control is possible by connecting the temperature sensor(PT1000) with accuracy at ±0.2°C
• The “HOT” warning will flash if the work plate temperature is above 50°C
Specification:
Specifications | MCL-D32 | |
Work plate Dimension [W x D] | 184x184mm (7 inch) | |
Work plate material | Glass ceramic | |
Motor type | Shaded pole motor | |
Motor rating input | 15W | |
Motor rating output | 1.5W | |
Power | 1030W | |
Heating output | 1000W | |
Voltage | 100-120/200-240V 50/60Hz | |
Stirring positions | 1 | |
Max. stirring quantity, [H2O] | 10L | |
Max. magnetic bar[length] | 80mm | |
Speed range | 0-1500rpm | |
Speed display | Scale | |
Temperature display | LED | |
Heating temperature range | Room temp.-550°C, increment 5°C | |
Temperature control accuracy | ±10°C | |
Overheating protection | 580°C | |
Temperature display accuracy | ±1°C | |
External temperature sensor | PT1000 (accuracy ±0.2) | |
"Hot"warning | 50°C | |
Protection class | IP21 | |
Dimension [WxDxH] | 215x360x112mm | |
Weight | 4.5kg | |
Permissible ambient temperature and humidity | 5-40°C, 80%RH | |
