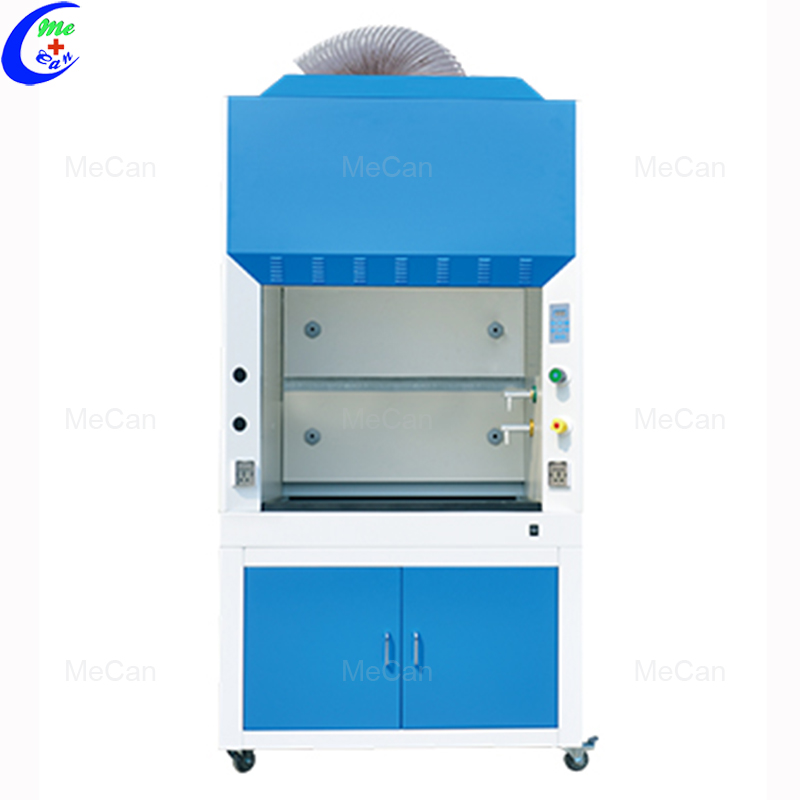

    Lab Ducted Fume Hood

    Model:MCL-P11

    Lab Ducted Fume Hood 3

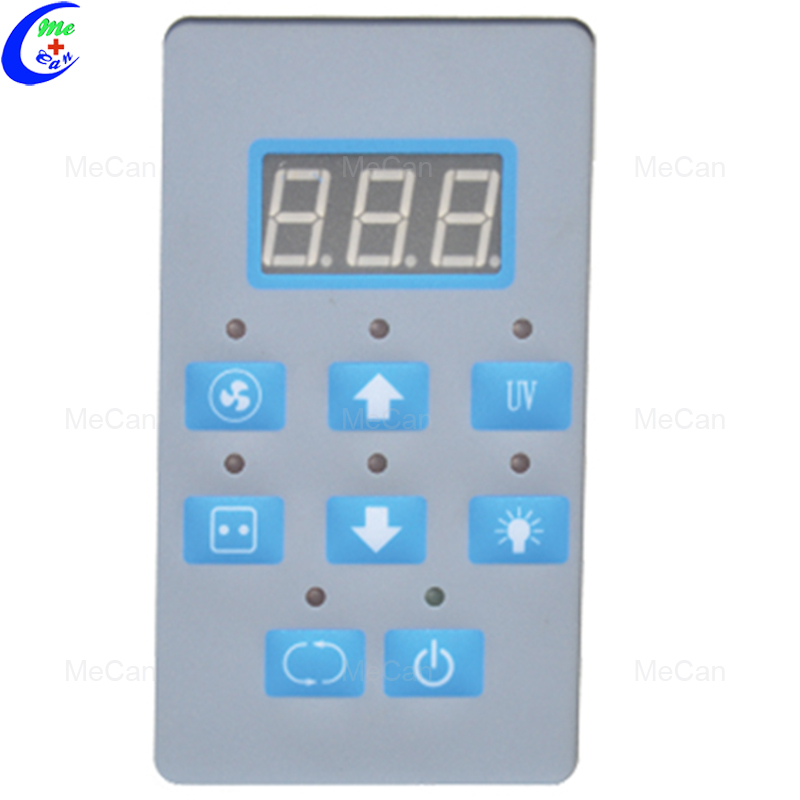

    LED Display

    Lab Ducted Fume Hood 4

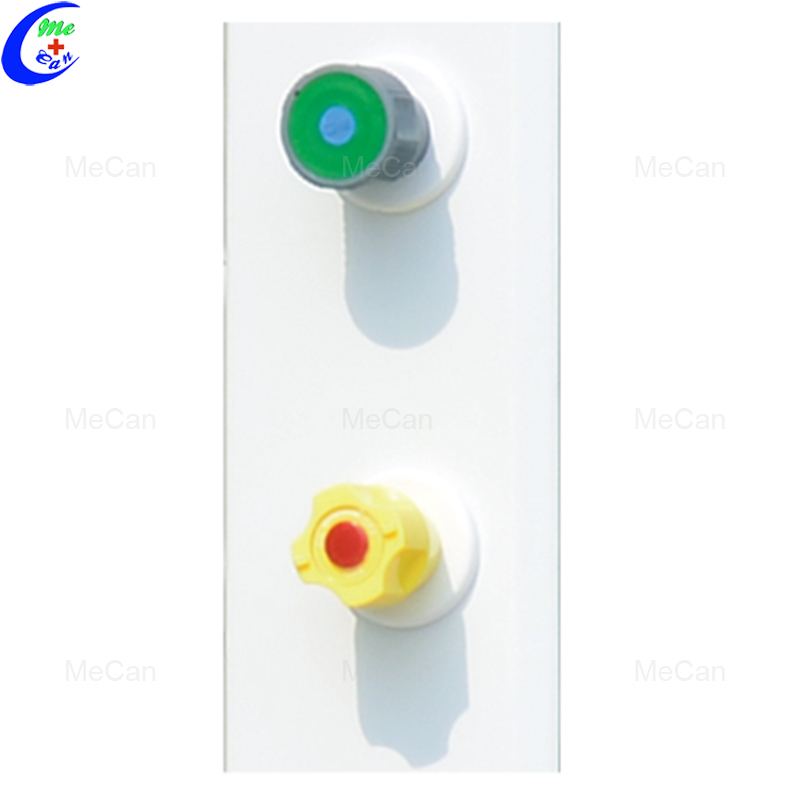

    Water & Gas Remote Control

    Lab Ducted Fume Hood 5

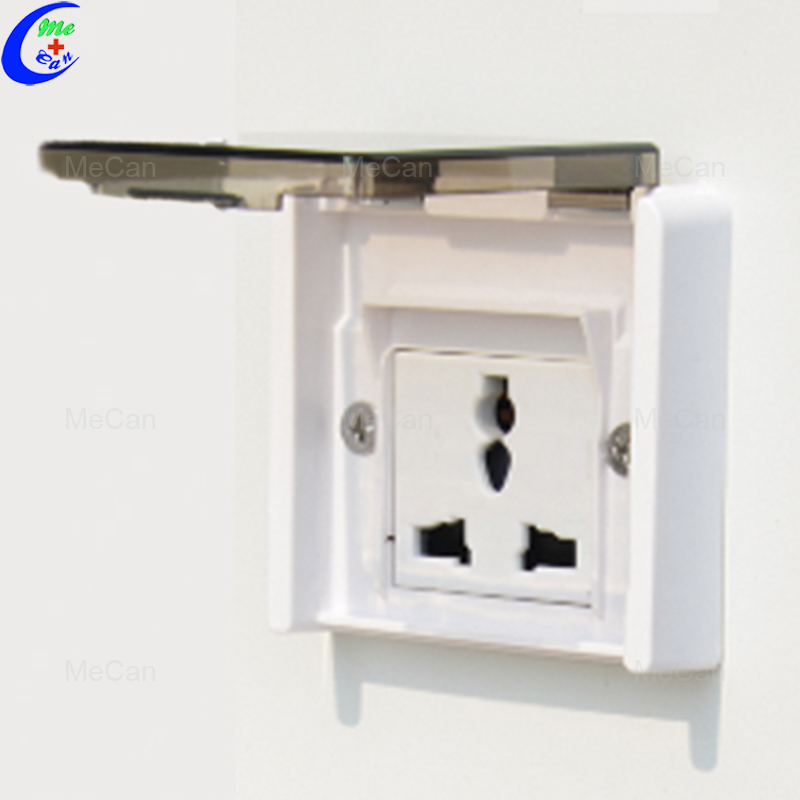

    Waterproof Socket

    Lab Ducted Fume Hood 6

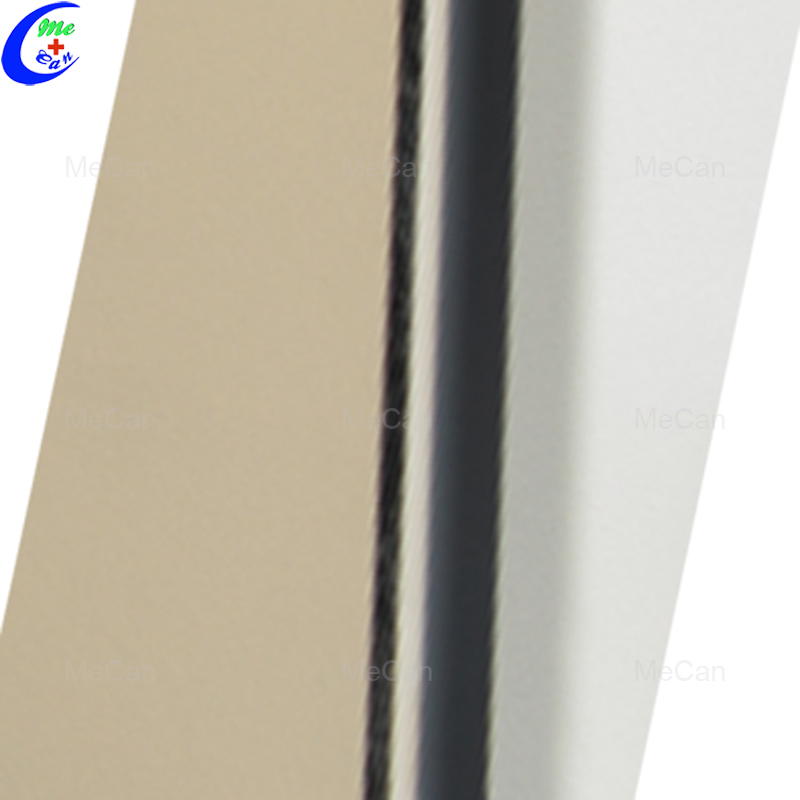

    Double Layer

    1.2mm sheet metal surface, melamine board inward.

    Lab Ducted Fume Hood 7

    Features:


    1. UV lamp for sterilization.

    2. Resistant to weak acid and alkali.

    3. Adjustable air speed: 9 levels

    4. Motorized front window, height adjustable.

    5. Microprocessor control system, LED display.

    6. With memory function in case of power-failure.


    Specification:

    Model

    MCL-P11

    External Size (W*D*H)

    1040*800*2200mm

    Internal Size (W*D*H)

    820*670*730mm

    Work Surface Height

    850mm

    Max Opening

    520mm

    Air Velocity

    0.3~0.8m/s

    Noise

    ≤68dB

    Exhaust Duct

    PVC, Standard length: 4 meters.

    Φ300mm

    LED Lamp

    8W*1

    UV Lamp

    Emission of 253.7 nanometers for most efficient decontamination

    Blower

    Built-in centrifugal blower; Speed adjustable.

    Front Window

    5mm toughened glass; Motorized; Height adjustable.

    Power Supply

    AC220±10%, 60/50Hz; 110±10%, 60Hz

    Consumption

    400W

    Material

    Exterior

    Cold-rolled steel with anti-bacteria powder coating.

    Interior

    High grade melamine board with good acid and alkali resistance function

    Work Table

    Chemical resistant phenolic resin

    Stand Accessory

    UV lamp*2, LED lamp, Water tap, Gas tap, Water sink, Base cabinet

    Total load of 2 waterproof sockets: 500W

    4-meter PVC exhaust duct, pipe strap*2

    Optional Accessory

    Active carbon filter

    Gross Weight

    286kg

    Package

    Main Body

    1190*990*1690 mm

    Base Cabinet

    1190*990*980mm


    Stand Accessories:

     UV lamp*2, LED lamp, Water tap, Gas tap, Water sink, Base cabinet

    Total load of 2 waterproof sockets: 500W

    4-meter PVC exhaust duct, pipe strap

     Optional Accessory:

     Active carbon filter
