Industrial Smelting Equipment Product Line Rotary Kiln
Industrial Smelting Equipment Product Line Rotary Kiln
Specification:

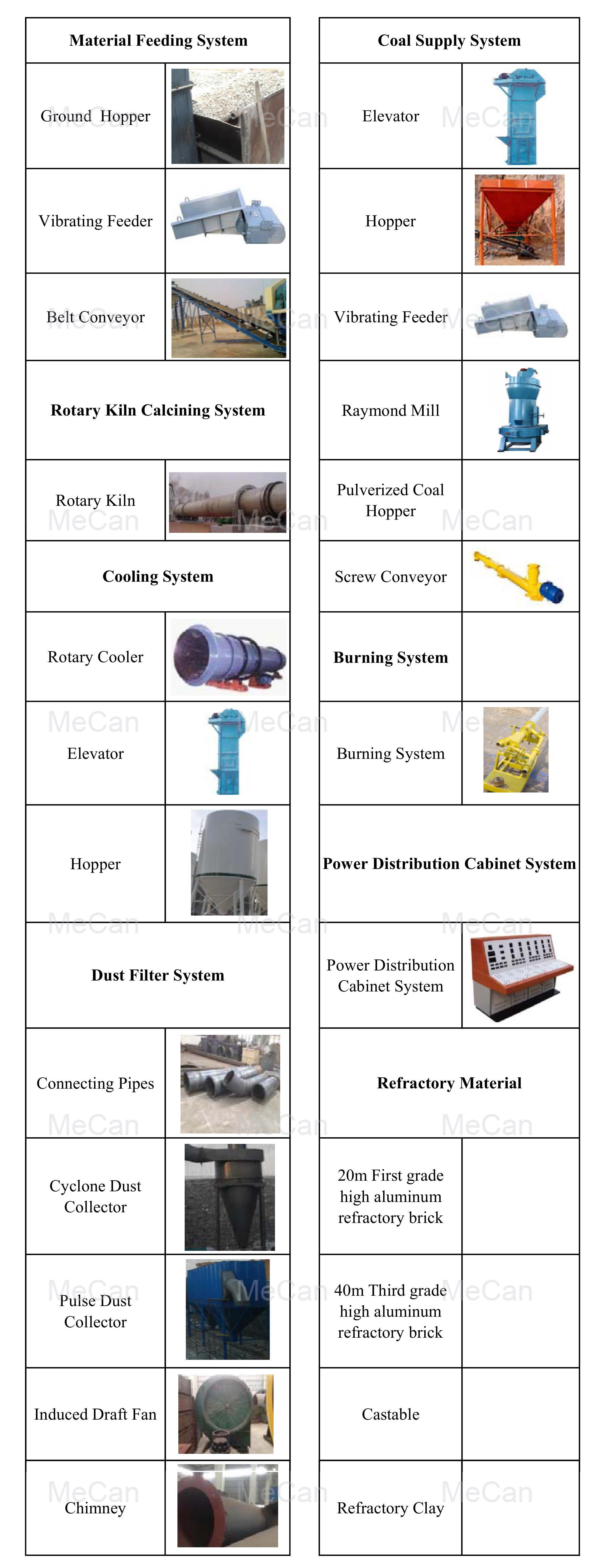

Description Specification Quantity Material Feeding System Ground Hopper 50m3, Make in Site by user 1 Vibrating Feeder GZ3

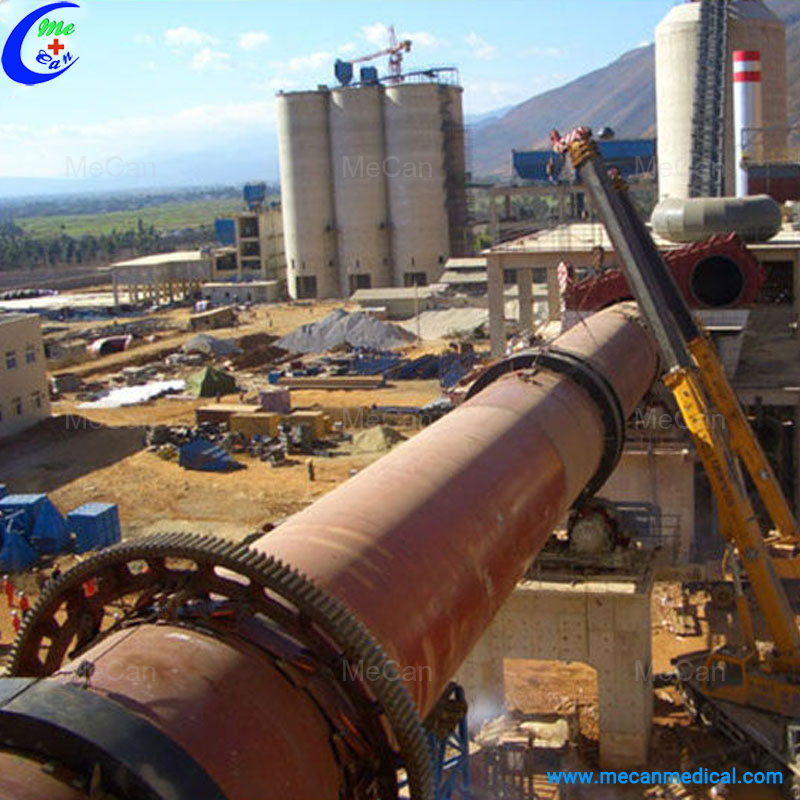

Power: 0.22KW1 Belt Conveyor Power: 0.22KW, B650×45m 1 Rotary Kiln Calcining System 1 Rotary Kiln Model:Φ3×60m
Material:Q235
Slope:3.5%
Rotating Speed:0.5-1.5r/min
Support:4 step
Main motor :90kw
Reducer:ZS145
Auxiliary Motor:5.5kw
Auxiliary Reducer:ZL35
Roller Ring ZG45,
Supporting Wheel ZG45,
Retaining Wheel ZG35,
Big Gear ZG55,
Pinion 42SiMn.
Including kiln head and tail seal,temperature measuring device 1 Cooling System Rotary Cooler Power: 18.5KW
Model: Φ1.5×15m
Discharge Temperature:≤120℃
Discharge Temperature
Motor:18.5kw
Reducer:JZQ5001 Elevator Power: 15KW
TH315×20m1 Hopper 100m3, Make in Site by user 1 Dust Filter System Connecting Pipes one set 1 Cyclone Dust Collector two pcs 2 Pulse Dust Collector one set 1 Induced Draft Fan One unit
Power: 110KW1 Chimney One set 1 Coal Supply System Elevator TH200
Power: 3KW1 Hopper 2m3 1 Vibrating Feeder GZ2
Power: 0.2KW1 Raymond Mill 4R3216
Power: 72.5KW1 Pulverized Coal Hopper Matching 1 Screw Conveyor Φ179×5m Burning System Burning System One Burner
One Combustion Fan: power 37KW
One set Connecting Pipes
One set Air Volume Control Valve1 Power Distribution Cabinet System Power Distribution Cabinet System 1 Refractory Material 20m First grade high aluminum refractory brick tons 90 40m Third grade high aluminum refractory brick tons 176 Castable tons 45 Refractory Clay tons 8
