Medical Hospital Anesthesia Workstation For ICU

Medical Hospital Anesthesia Workstation For ICU

Features

1.Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
2.Anesthesia Ventilator: Built-in 8.4 inch color TFT display, able to display Pressure-Time, Flow-Time, Pressure-Volume and Flow-Volume, displayed waveforms can be cycled instantly with a touch of a button
3.Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect
4.Power Failure Support Functions: Automatically converts to backup power mode during AC power outages
5.Equipped with electronic pressure differential flow sensor, imported respiratory control valve, stable and reliable, rapid response time
6.High precision five tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%
7.Nonhazardous environmentally friendly frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor
8.Alarms: Audible and/or visual alarms for tidal volume, airway pressure, oxygen concentration, asphyxia, power failure, oxygen failure and other alarms, also features a alarm query function
9.Vaporizer: Imported tank components assembled locally; Enflurane, Isoflurane and Sevoflurane (Halothane optional). Also possesses self-compensating functionality
10.Advanced and stable Adjustable Pressure Limiting (APL) valve, suitable for low and ultra low flow anesthesia
11.Equipped with advanced international rotating Na-lime tank, easy-operate, requires only one hand, and uses imported PPSU material and temperature resistant to 134°C

12.Multi-parameter Patient Monitor: Optional

Specification

Display	8.4 inch TFT display
Flowmeter Range	O2:0.1-10L/min
	N2O:0.1-10L/min
	Air: 0.1-10L/min
Ventilation Mode	IPPV, SIPPV, VCV, IMV, SIMV, MANUAL, Standby
Back-up Power Supply	At least 4 hours
Tidal Volume	Adjustable range:20-1500ml
	Display range: 0-2000ml
Respiratory Rate	1-100bpm
Inspiratory/Expiratory (I:E) Ratio	8:1-1:10 (capable of inverse ratio ventilation)
PEEP Range	0-20cmH2O (electronically controlled)
Inspiratory Pressure Trigger Range	-10-10cmH2O (electronically controlled)
SIGH	1 sigh breath in every 80-120 breaths
Inhaled Oxygen Concentration Monitor	21-100%
SIMV Rate	1-20bpm
Inspiratory Plateau	0-1 second
Vaporizer Concentration Ranges	0-5%
Vaporizer Slots	Double PA-I type slots

Component Details

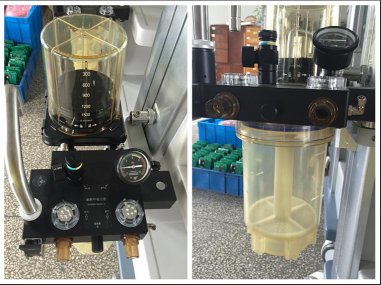

Na Lime Tank

Equipped with international advanced one-piece soda lime cans,it can be fast replaced with  hands  and  withstand temperatures up to 134℃

Circuit

Metal integrated breathing circuit, Perfect function of gas sealing under high temperature disinfection, and easy to cleaning and disinfected.

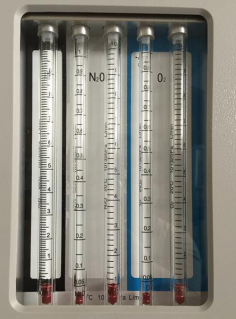

Flowmeter

5-Tubes flowmeter;
1. Assure that O2 output not lower than 20%
2. NO2 automatically off while O2deficiency

Display & Operating Interface

10.4'' LCD Display Screen, can feedback patient data
Shuttle button: More accurate



Vaporizers

Enflurane/ Isoflurane/ Sevoflurane(Option: Halothane)
Setting Range:  0.5~5%
