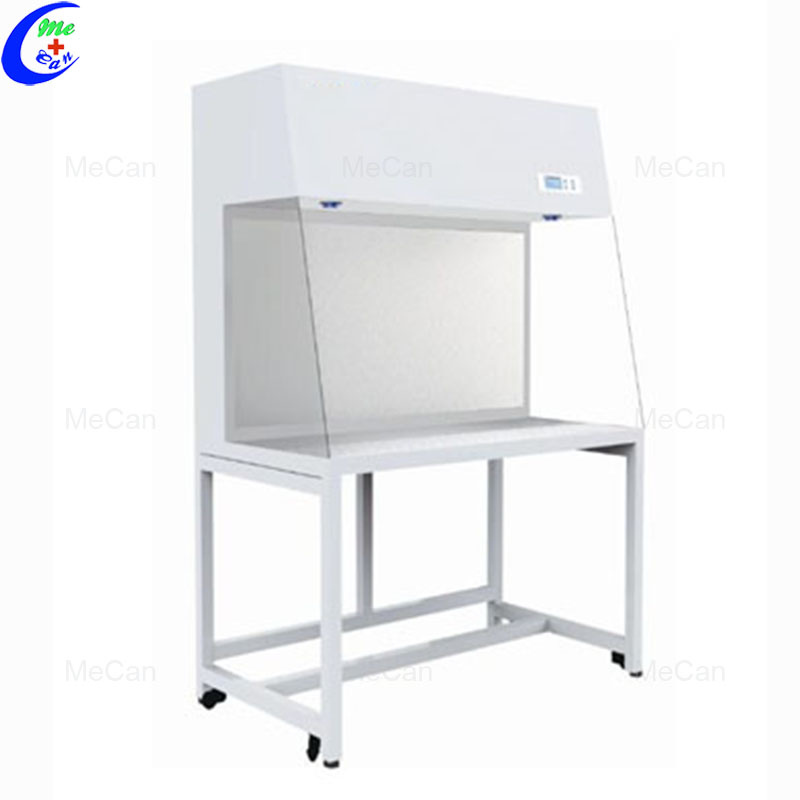

Horizontal Laminar Flow Cabinet
Horizontal Laminar Flow Cabinet
Model:MCL-SC05
Product description:
Laminar Flow Cabinet –sample protection only
Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air.
Laminar flow cabinet is widely used in medical research laboratories, hospitals, manufacturing facilities and other research and production environments.
Features:

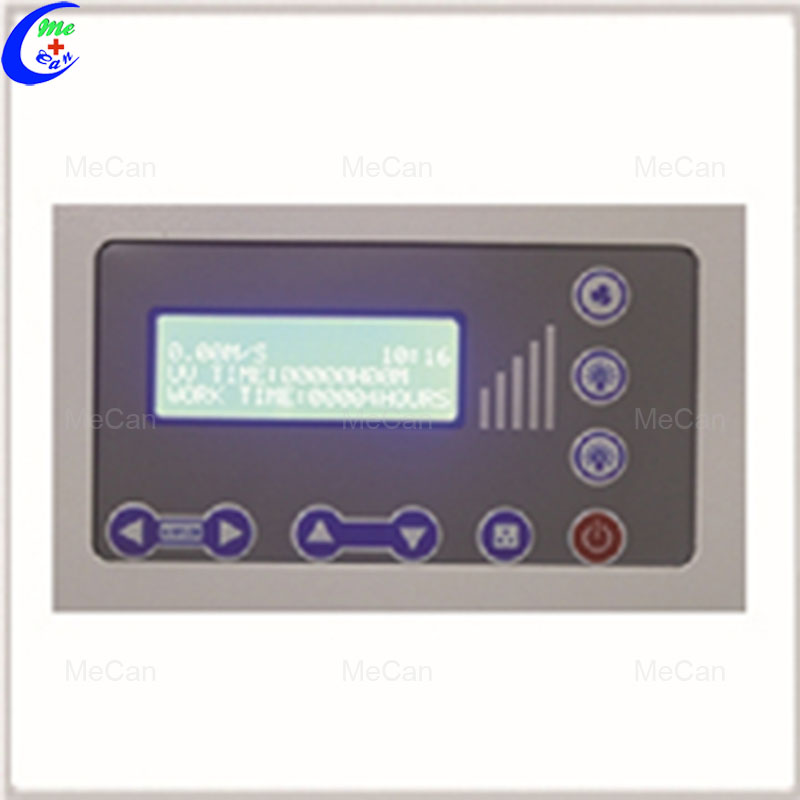

LCD Display
Microprocessor control system, LCD display

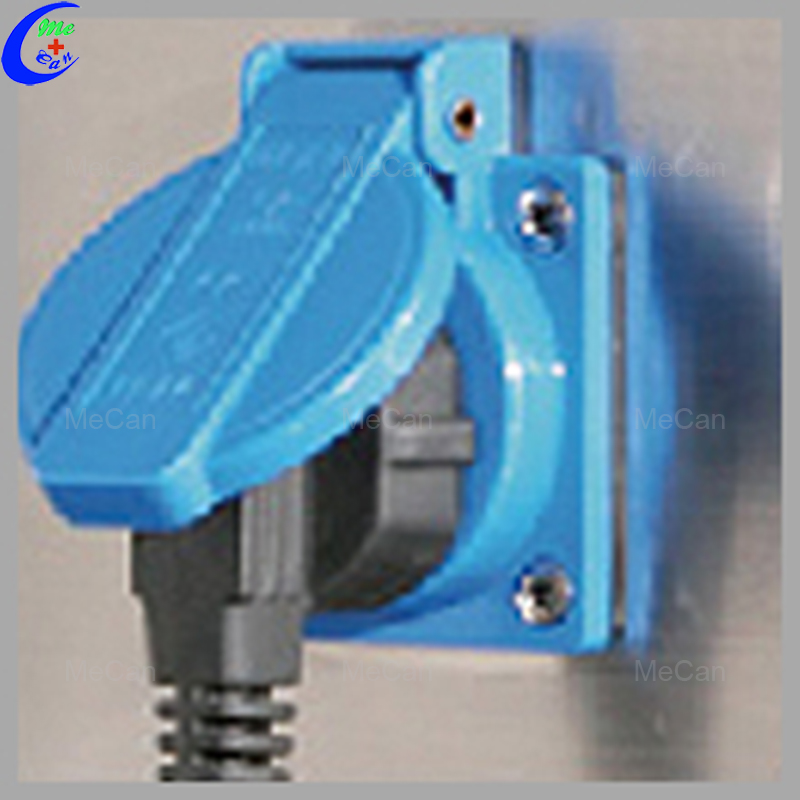

Waterproof socket
2 waterproof sockets are located in the side panel, for optimum convenience of using small devices inside the cabinet

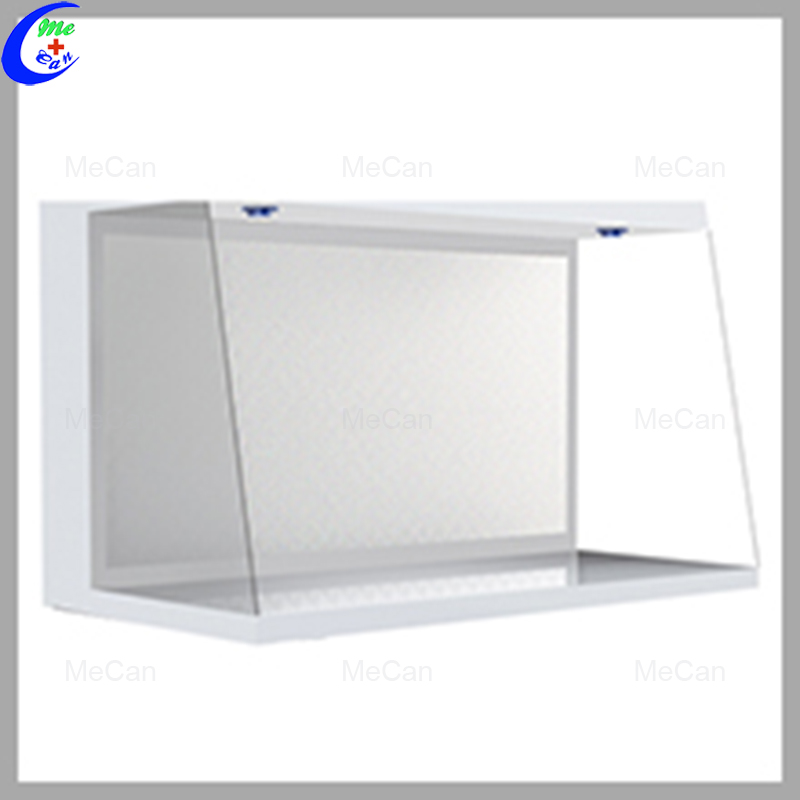

Side glass window
The transparent side glass windows maximize light and visibility inside the cabinet, providing
a bright and open working environment.
Specification:
Model | MCL-SC05 |
External Size（W*D*H） | 1100*808*1690mm |
Internal Size（W*D*H） | 1000*500*600mm |
Work Surface Height | 750mm |
Display | LCD Display |
Airflow Velocity | Average of 0.30~0.45m/s |
Material | Main Body: Cold-rolled steel with anti-bacteria powder coating |
Work Table:304 stainless steel | |
Side Windows:8mm toughened glass, anti-UV | |
Pre-filter | Polyester fiber, washable |
HEPA Filter | 99.999% efficiency at 0.3um |
Noise | <60dB |
LED Lamp | 12W*1 |
UV Lamp | 20W*1 |
Emission of 253.7 nanometers | |
Consumption | 200W |
Waterproof socket | Two, total load≤500W |
Caster | Universal caster with leveling feet |
Power Supply | AC220V±10%; 50/60Hz; 110V±10%, 60Hz |
Standard Accessory | LED lamp, UV lamp*2,Base stand, Waterproof socket*2, Hook*10 |
Optional Accessory | Electric height adjustable base stand |
Gross Weight | 170kg |
Package Size（W*D*H） | 1250*1030*1340mm |
Accessories:
Base stand 1pcLED lamp 1pc
UV lamp 2pcs
Waterproof socket 2pcs
Hook 10pcs
