Horizontal China Medical Steam Autoclave Sterilizer For Hospitals

MCF-SS01
minimum order
1
Stock Time
3-15 working daysDay
Quantity:
Contact Now
add to cart
All Products

Horizontal China Medical Steam Autoclave Sterilizer For Hospitals

The Medical Steriliser, which adopted the way of gravity exchange to releasing the cold air from the chamber more completely to ensure the reliable sterilization. The control system automatically adjust the steam inlet and outlet according to chamber temperature during sterilizing.
This unit is ideal equipment for clinics, scientific research institutes and other organization to sterilize surgical instruments, fabric glasses, culture media, etc.


Main Features
1. Sterilizing course automatic sterilization controlled,easy to operate.
2. With drying function,suitable dressing drying.
3. With over-temperature,over-pressure auto-protect device.
4. The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can't be start on if the door doesn't close well.
5.The safety value will be open automatically when the inner pressure over 0.24MPa,and the steam be exhausting to the water tank.
6. The power will be cut-off automatically,cut-off the water and alarm when the machine lacking water.
7. The chamber of the sterilizer is made of stainless steel.



  Model

MCS-150YDA

MCS-200YDA

MCS-280YDA

MCS-400YDA

MCS-500YDA

Sterilizing chamber  volume

150L           φ480×850mm

200L           φ515×1000mm

280L           φ600×1000mm

400L               Φ700×1100mm

500L           Φ700×1300mm

working pressure

0.22MPa

working  temperature

134°C

Adjustment of temperature

40°C - 134°C

Time of sterilization

0-60 min

Time of drying

0-60 min

Heat average

≤± 2°C

Power

9KW/380V 50Hz

9KW/380V 50Hz

12KW/380V 50Hz

18KW/380V 50Hz

18KW/380V 50Hz

Dimension (mm)

1400×600×1300

1400×670×1650

1400×770×1780

1430×880×1830

1800×900×1820

Transport dimension (mm)

1550×750×1850

1560×820×1850

1680×920×2100

1800×1050×2100

1850×1050×2100

 G.W/N.W

320/240 KG

350/260 KG

465/365 KG

530/520 KG

580/470 KG



More pictures:

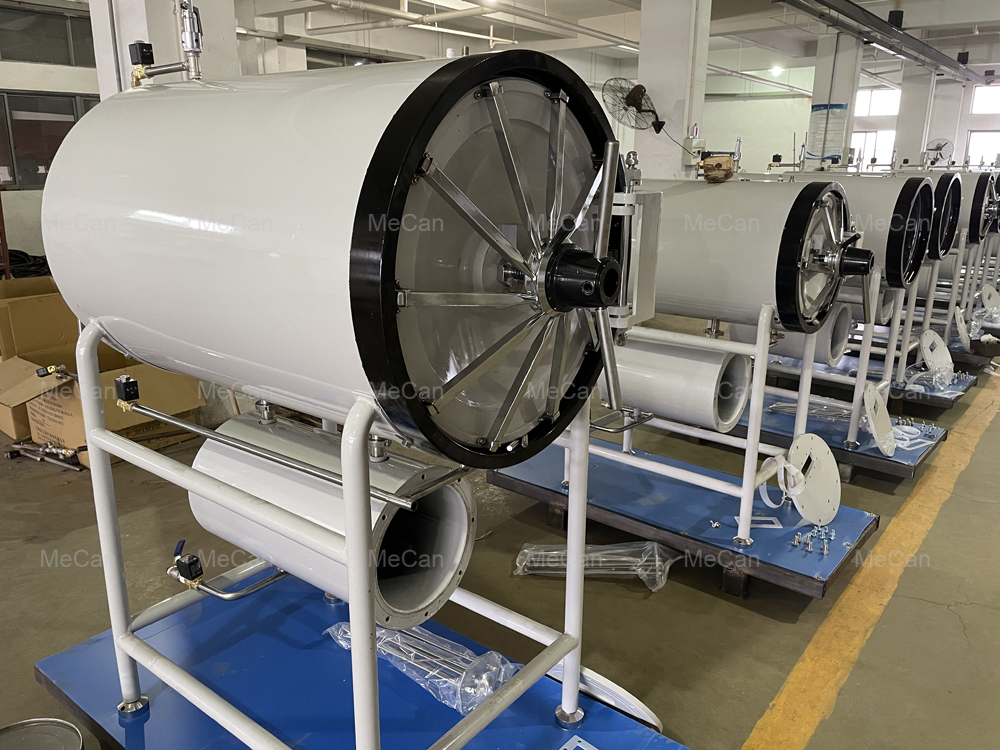

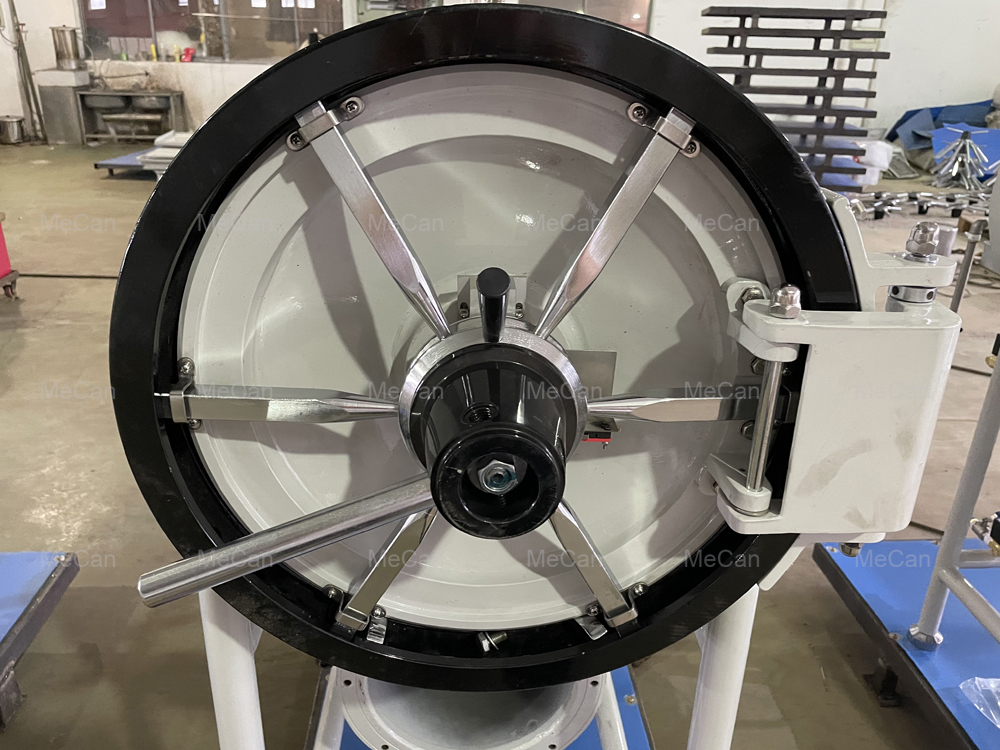

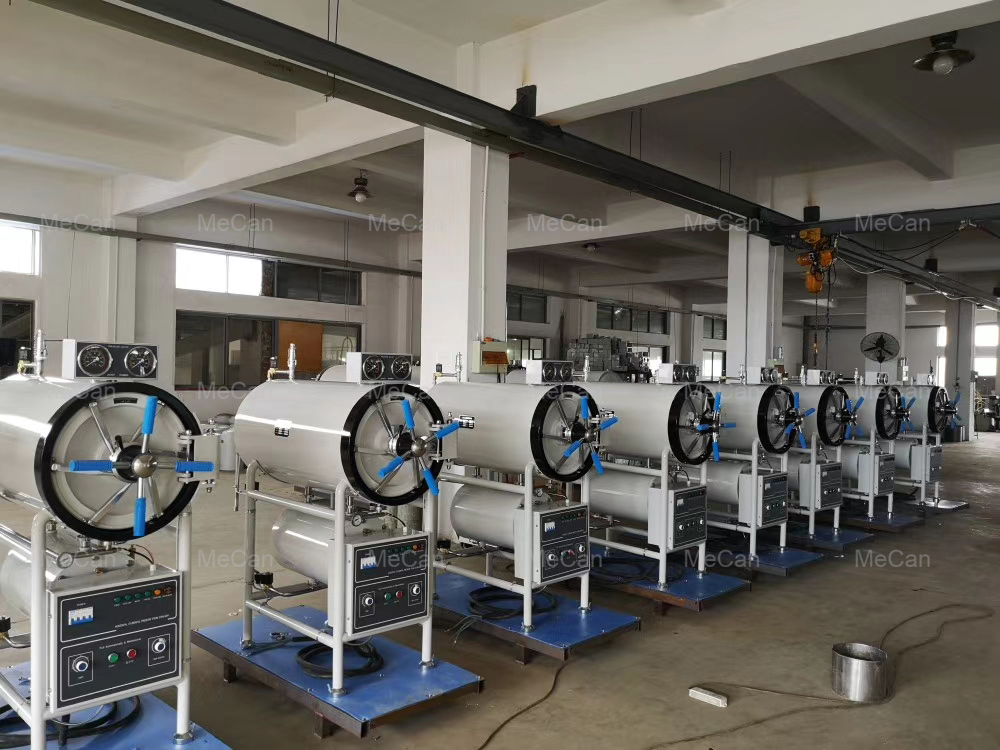

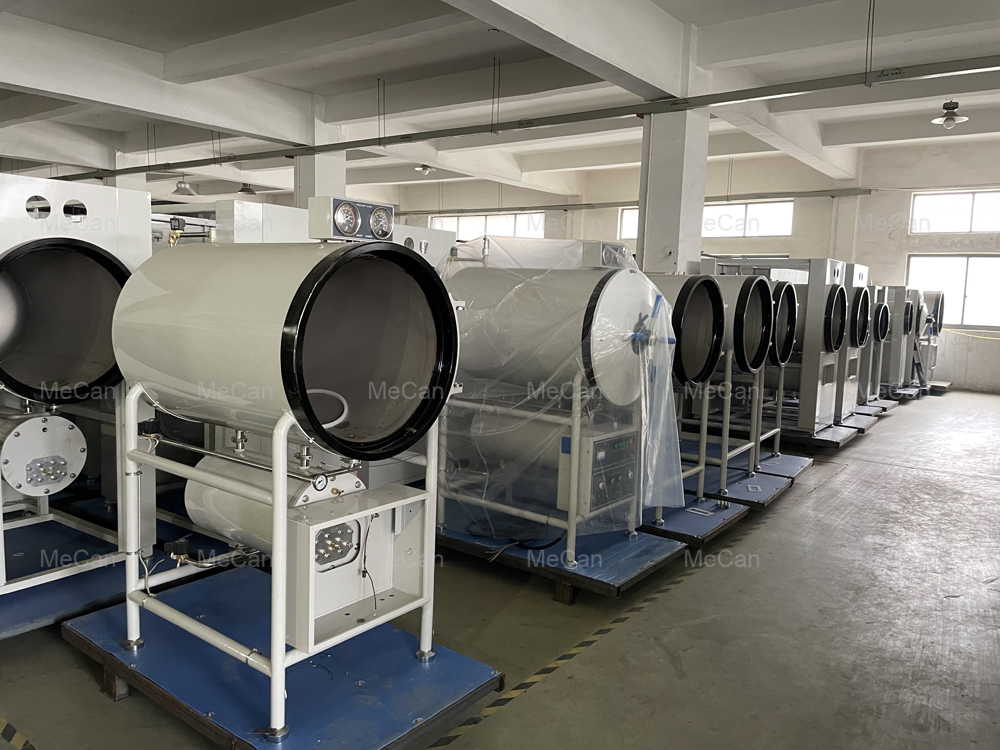

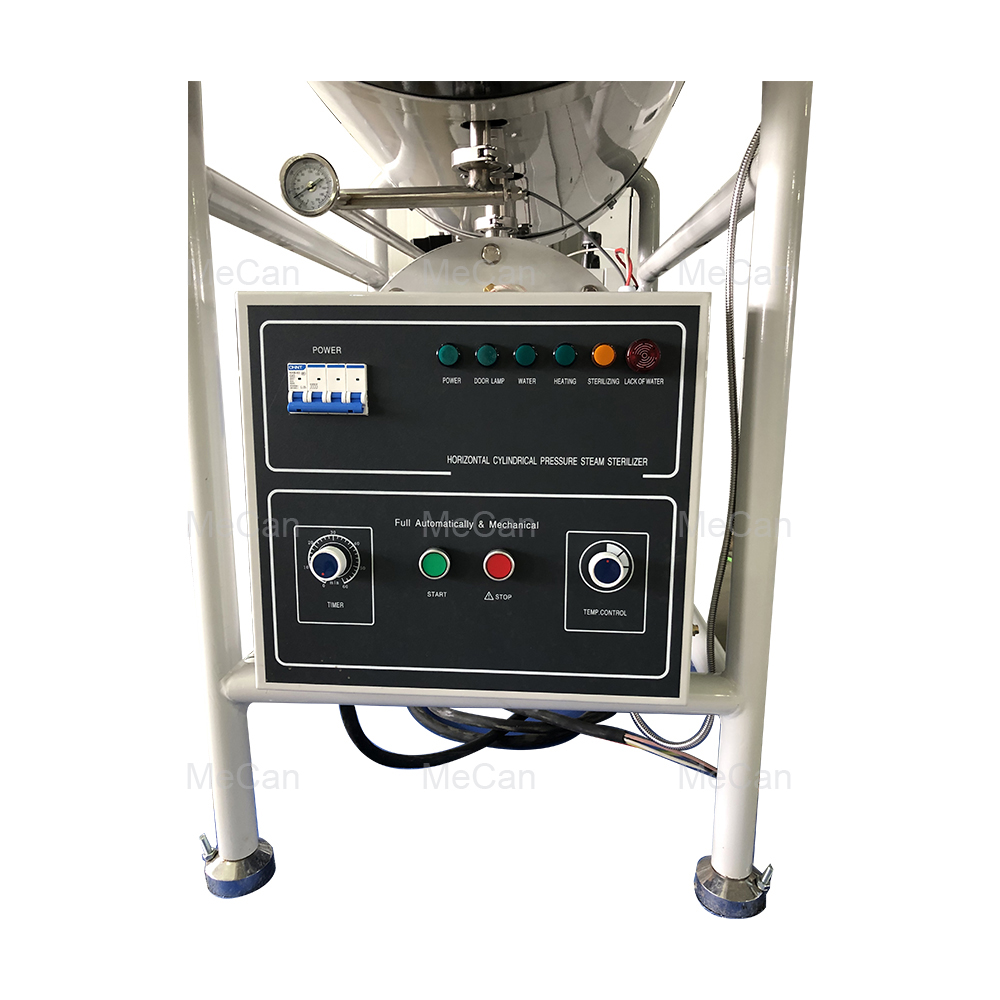

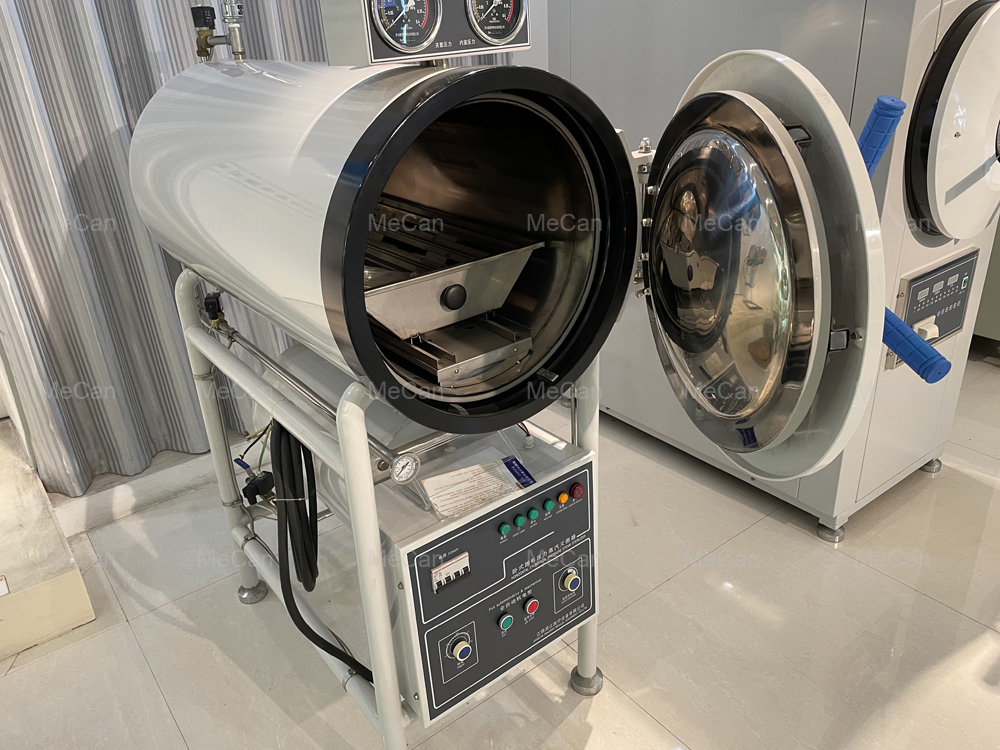

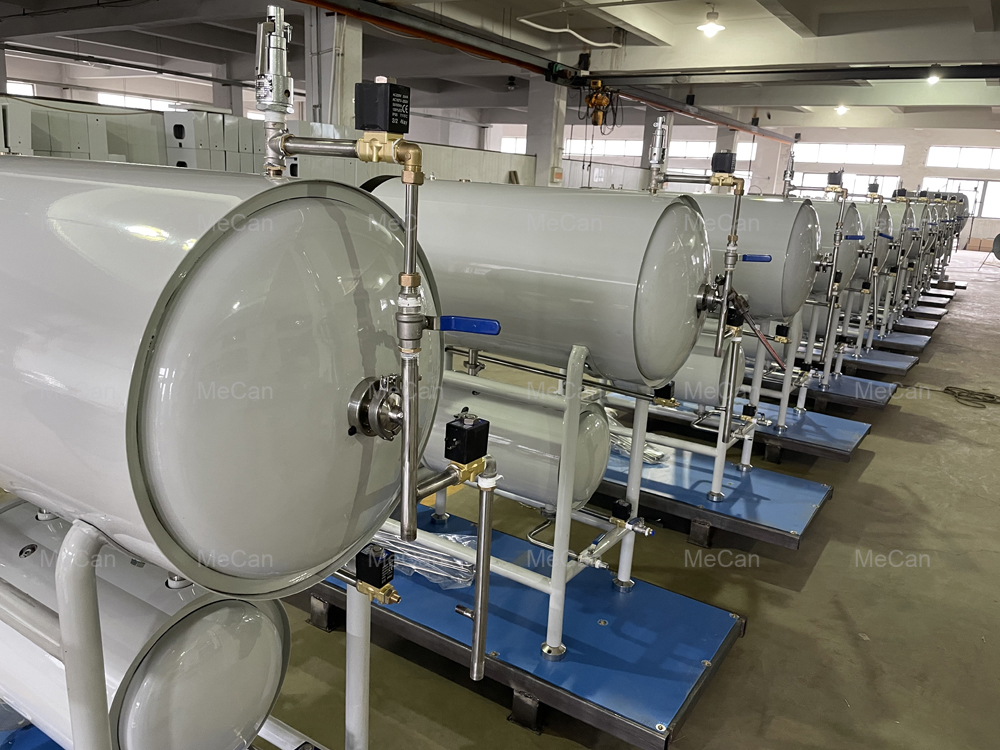

Horizontal China Medical Steam Autoclave Sterilizer For Hospitals 7Horizontal China Medical Steam Autoclave Sterilizer For Hospitals 8Horizontal China Medical Steam Autoclave Sterilizer For Hospitals 9Horizontal China Medical Steam Autoclave Sterilizer For Hospitals 10Horizontal China Medical Steam Autoclave Sterilizer For Hospitals 11Horizontal China Medical Steam Autoclave Sterilizer For Hospitals 12Horizontal China Medical Steam Autoclave Sterilizer For Hospitals 13
