High Quality Dental Electrosurgical Unit
High Quality Dental Electrosurgical Unit

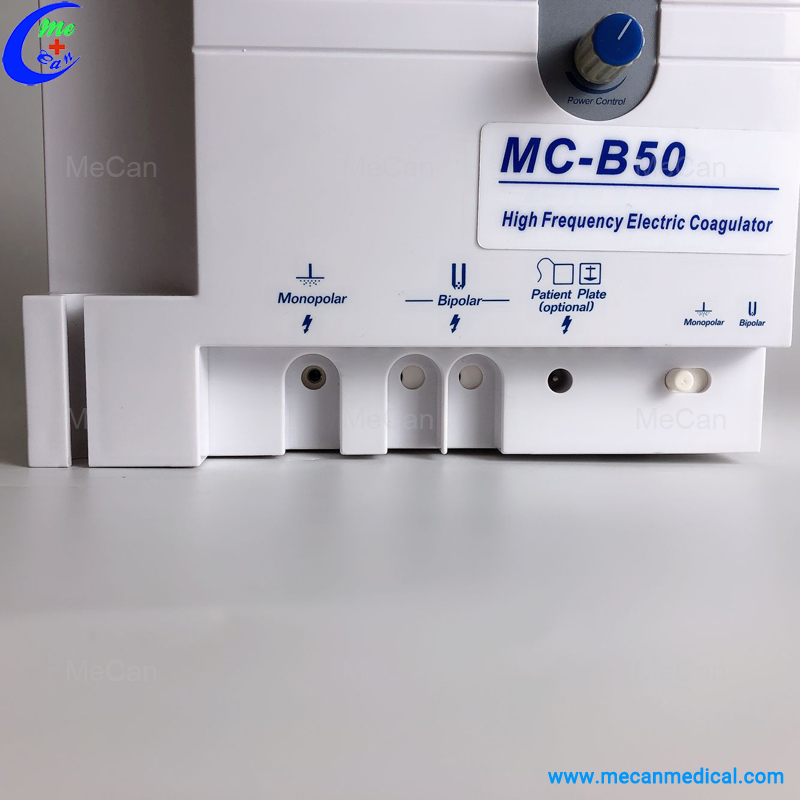

Characteristic Environmental temperature range: 5°C-40°C Relative moisture range: ≤80% Atmosphere pressure range: 86.0 - 106.0 Kpa Voltage: 220V±10V, 50Hz ± 1Hz Working frequency: 450KHz ± 50KHz Output rated power: Monopolar output: 30w (Load 1000Ω) Bipolar electrocoagulation: 30w (Load 200Ω) Display Setting: Monopolar 0 ~ 10 range: 0.1 Watt increments 10 ~ 30 range: 1.0 Watt increments Bipolar 0 ~ 10 range: 0.1 Watt increments 10 ~ 30 range: 1.0 Watt increments
a. Control the power by using the power adjustment button of the ESU pencil so as to control output power and the operation time is shortened.
b. Dual microprocessors (one is to control function and the second is to terminate activation if a hazard or safety issue is detected.
c. Memory Function:set us the requested function parameter after turn-off.At the nest startup the previous setting parameter will be displayed.
d.From 10w to 30w, the output of each watts can be manipulated precisely. And below 10w, the adjustment is done at the 0.1w amplitude by up and down, all of micro surgery is effected by this machine.
e. Stimulate the argon system for activating the spray coagulation.
Technical parameters

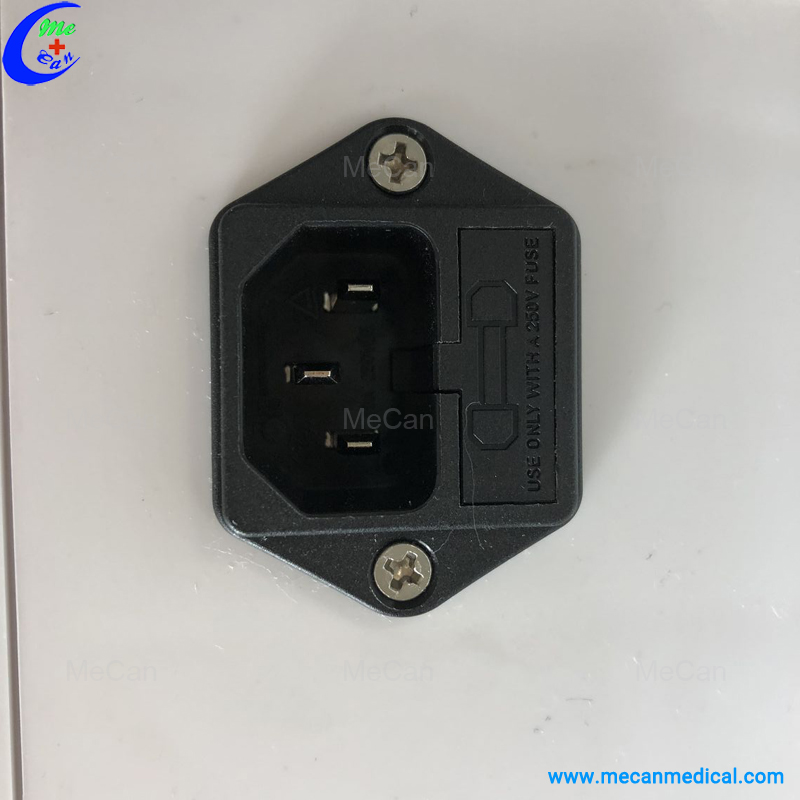

Power supply
230V±10%,50±1%Hz
Transportation and storage
Ambient temperature range: -40°C~55°C;
Relative moisture range: ≤95%;
Atmosphere pressure range: 500hPa~1060hPa

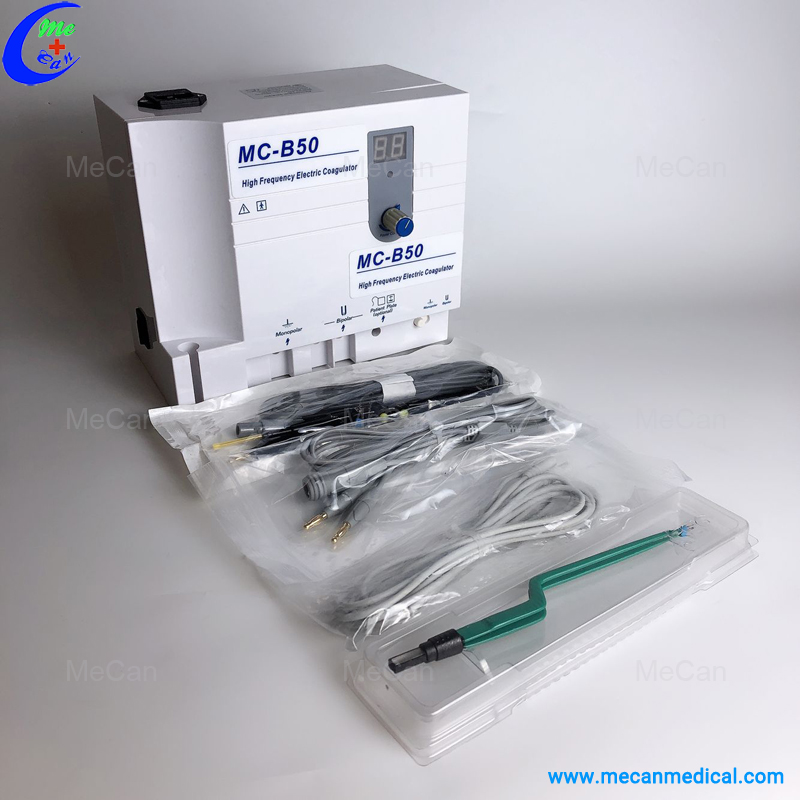

Accessories Included
Electrosurgical Pencil, reusable 1pc
Bipolar Forceps with cable, reusable 1pc
Disposable ESU Pad 2pcs
Cable for ESU Pad, reusable 1pc
Footswitch 1pc
Wall Mount 1pc
Power cord 1pc
Manual 1pc
