ECG Machine
High quality cheap portable ECG machine 12 channel CE 1
High quality cheap portable ECG machine 12 channel CE 1

High quality cheap portable ECG machine 12 channel CE

    12-channel digital emergency equipment ECG ECG machine

    High quality cheap portable ECG machine 12 channel CE 2

    Input circuit Isolated input circuit
    Printout Format 6,6+1,6+2,12+2,12
    Operation mode Auto: Automatic lead change: automatic measurement and interpretation  MAN: Manual lead change
    Frequency response 0.05Hz ~ 100Hz
    CMRR >60dB, >100dB(AC filter in use)
    Time constant ≥ 3.2s
    Patient leak current <10µA
    Calibration voltage 1mV±5%
    Sensitivity
    2.5, 5, 10, 20 mm/mV ±3%
    Noise leve <15µVp-p
    Input impedance >50MΩ
    Recording mode thermal printing system
    Thermal printer  8 dot/mm(Vertical)  32 dot/mm(Horizontal, 25mm/s)
    Measurement parameters Ventricle heart rate, P-R interval, QRS Duration,  QT/QTC interval, P/QRS/T axis ,  RV5, SV1, RV5/SV1 amplitude
    Filter AC filter,EMC filter,DFT filter
    Paper size 210mm×20m roll type paper,or 210mmx140mmx20m Z-folding paper.
    Skin voltageTolerance  ±500mV
    Papar speed  6.25, 12.5, 25, 50mm/s

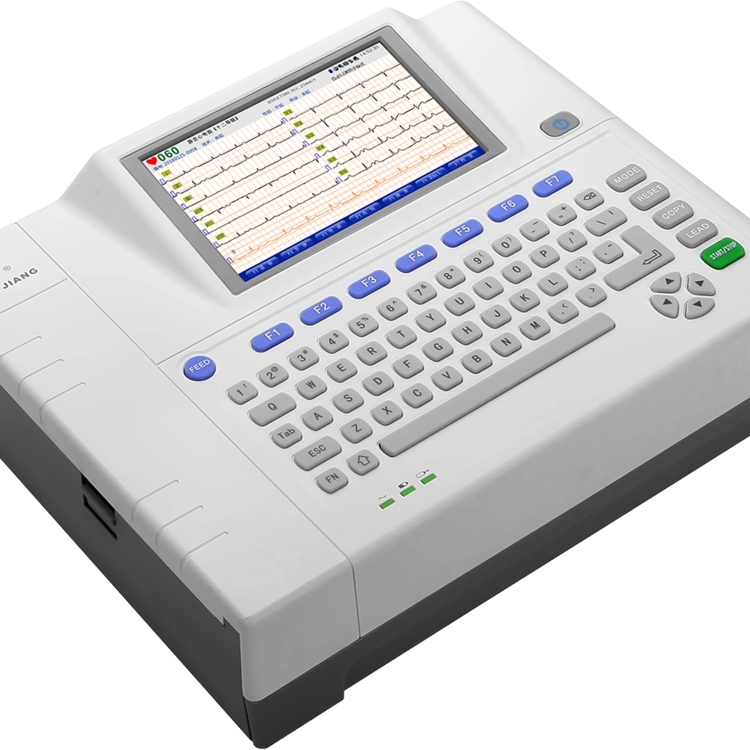

    High quality cheap portable ECG machine 12 channel CE 3

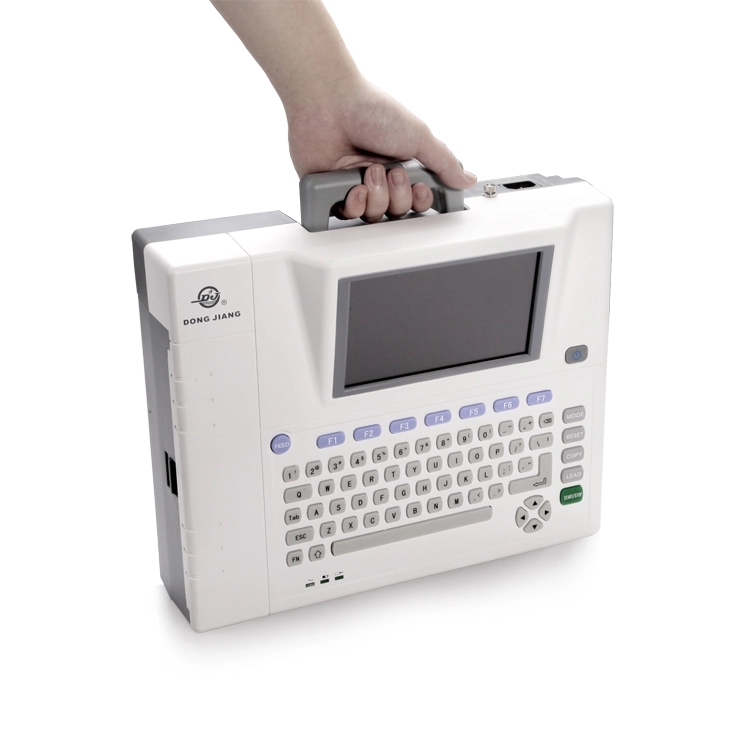

    High quality cheap portable ECG machine 12 channel CE 4

    High quality cheap portable ECG machine 12 channel CE 5
