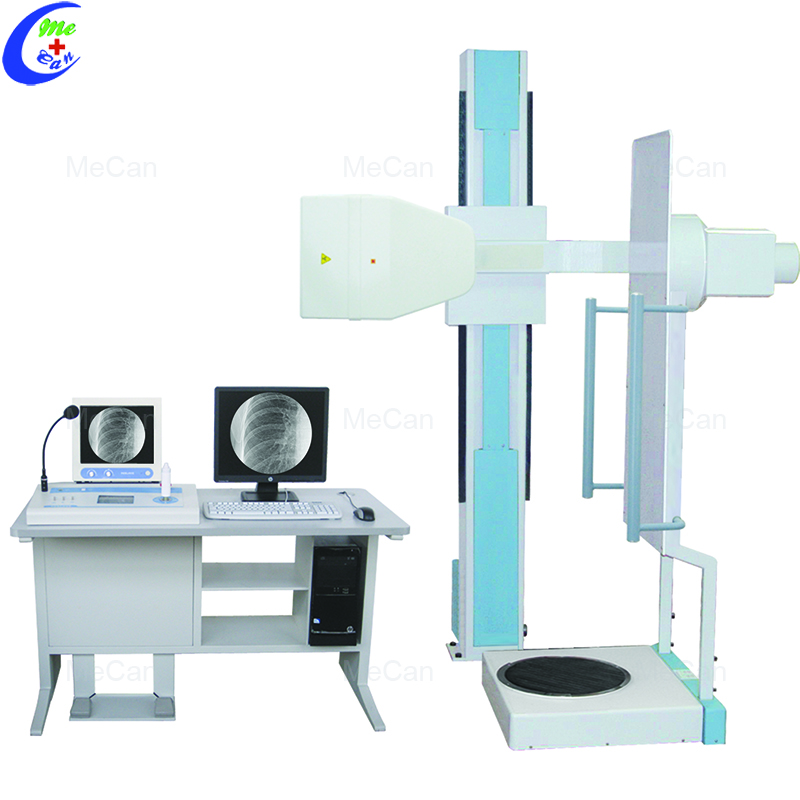

5KW 8mA High Frequency Remote-Control Fluoroscopic Equipment
5KW 8mA High Frequency Remote-Control Fluoroscopic Equipment
Model:MCX-005
Brief introduction:
MCX-005 is used in Department of Radiology, Medical center for disease control centers,other health institution etc. This machine is suitable for human esophagus, chest and stomach, abdomen, limbs and other parts of continuous perspective diagnostic work .
MCX-005 High Frequency Remote-Control Fluoroscopic Equipment is upgraded mature model. It is on the basis of fluorescent fluoroscopic machine , then joined the image intensifier and television systems, thus it is better advanced than fluorescent fluoroscopic machine.
System performance and parameters of MCX-005 High Frequency Remote-Control Fluoroscopic Equipment
Category | Item | Content |
Fluoroscopy Capacity | Perspective max rated capacity | Tube current 8 mA ,Tube voltage 120 KV |
Automatic fluoroscopy | Tube voltage: 40kV～120kV ,adjust automatically Tube current :0.3mA~4mA .adjust automatically | |
Manual Fluoroscopy | Tube voltage 40kV～120kV, continuous Tube current :0.3mA~~4mA continuous | |
Pulse Fluoroscopy ( Advantage) | Tube voltage 40kV～120kV, continuous Tube current : 4.1mA～8mA continuous | |
X ray tube | X ray tube special for High frequency | Dual focus fixed anode x-ray tube: large focus:1.5mm*1.5mm, small focus: 0.3mm*0.3mm; High Frequency Power Supply , Main inverter frequency :60KHZ(The leading domestic level ), thermal capacity :34KJ(47Khu) |
Video System | Image intensifier | 9"Image Intensifier (230mm) |
Video camera | Ultra-low-light digital camera for medical A / D digits 12bit | |
Monitor | Centre resolution greater than 1000 lines，field frequency 75Hz | |
Central control | High definition progressive scan output mode, multi-level noise reduction, multiple images stored; image vertical, horizontal image flip, positive and negative turn; LIH (Last Image Hold ) | |
Structure | Column | Vertical lifting range: ≥ 880mm focal screen distance: 1000mm |
Examine table | Lateral movement range: ≥ 180mm; chassis electrical rotation 360 ° | |
Performance | Feature | 1、Using high-resolution image enhancement system, can reduce the dose, the doctor can clear room operate. |
2、With electric up and down movements, electric lateral movement, Electric rotation function, to really realize people do not move while the machine move, Safe and reliable in operation. | ||
3、Ultimate resolution of the dynamic image 2.0LP/mm. Dynamic image without smearing. | ||
4、With the fluoroscopy KV / MA automatic tracking feature, the image brightness, sharpness automatically at its best. | ||
5、To achieve remote control of the operation, the maximum degree of protection from medical X-ray radiation effects, the patient doses significantly reduced. | ||
6、Hand brake and foot brake are two control modes, flexible switching, easy application. | ||
7、Equipped with programmable graphic LCD touch screen, easy to operate and elegant appearance . | ||
8、Electric iris limited beam, which can be electric rotary, electric opening and closing, electric O-ring. | ||
1、 With the microphone to convenientdoctor compartment operation. 10. Whole cooling system make sure that can take a long time of perspectiveand more professional . | ||
Use | This machine is suitable for human esophagus, chest and stomach, abdomen, limbs and other parts of the work of continuous fluoroscopy diagnosis. | |
| ||
